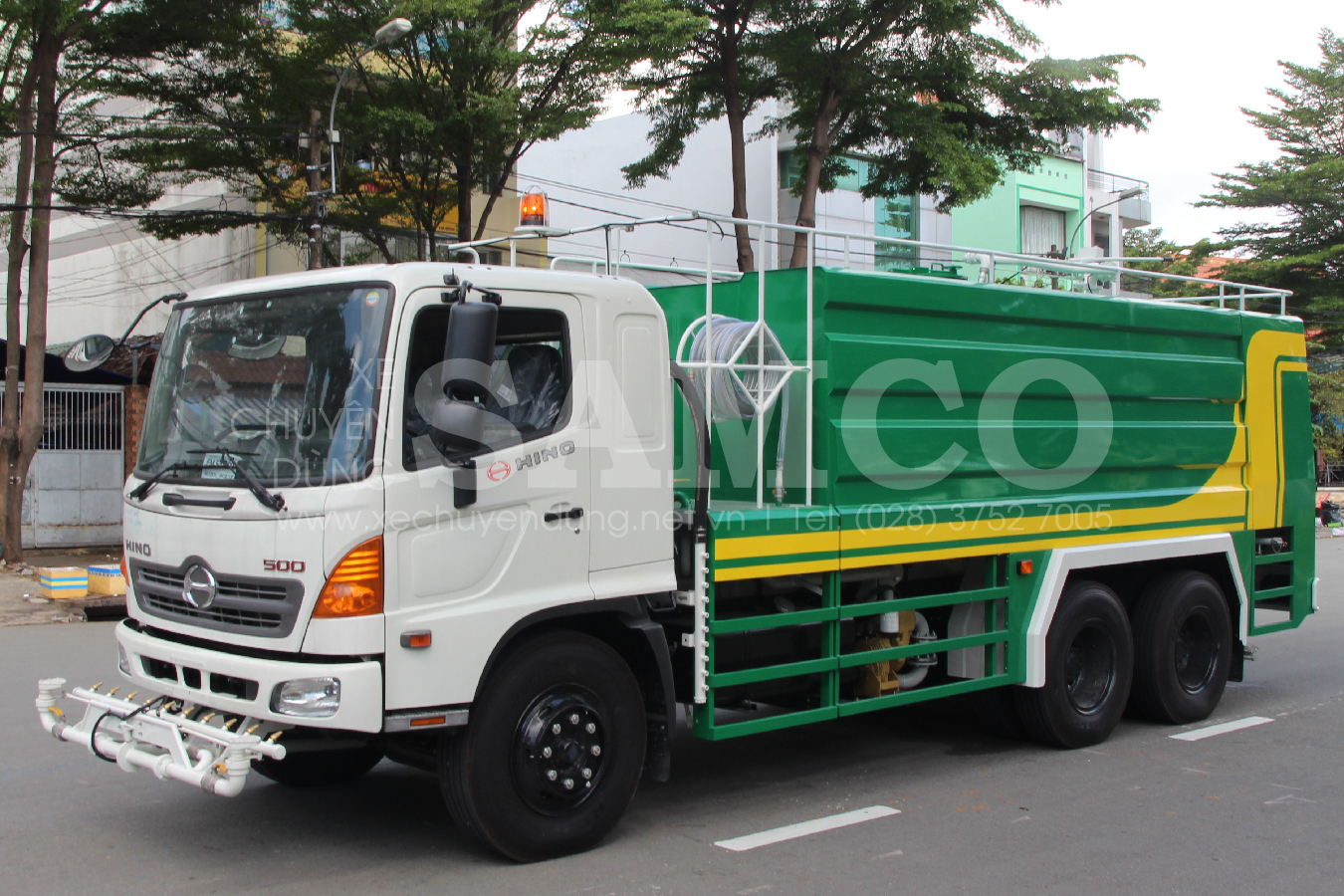

Road Cleaning Truck - TRDHI 130

Overview

TRDHI 130 road cleaning and watering vehicle with modern design is different from other vehicles, create freshness to a civilized city. The vehicle is installed with a fixed high pressure nozzle system, a hand-held spray gun and a sprinkler system installed on the side of the vehicle, creating flexibility, effectively supporting the work of caring for trees and urban landscapes.

The car can also water the road with high pressure spray nozzle to help clean the street quickly. In addition, the SAMCO Watering Trucks can also perform the function of helping to extinguish small fires - this is a prominent difference in SAMCO's product design.

  • Chasis : Hino HINO FM8JN7A
  • Payload : 13,000 kg
  • G.V.W : 24,000 kg
  • Water tank volume : 13.0 m³
  • Fixed high pressure nozzle: Rosenbauer (Austria)
  • Standard emission: EURO 4
Brochure download
road cleaning truck, Hino, watering shooter, road cleaning nozzle system

Technical Specifications

Egine model
Chasis Hino FM8JN7A
Cabin Single cabin
Engine model J08E-WD
Max. Output 206/ 2,500 kW/rpm
Displacement 7,684 cc
Overall Dimension 8,650 x 2,500 x 3,350 mm
Wheel Spase 5,380 mm
G.V.W 24,000 kg
Payload 13,000 kg
Kerb Mass 10,805 kg
Water tank Tank body profile: Trapezoid form cross section with
Volume: 13.0 m³
Tank material: SPA-H steel, Japan
The top of the tank has a door for inspection and repair as well as cleaning the inside of the tank
The bottom of the tank is fitted with pipes that carry water from the tank to the pump and to the outside
Water pump Model: Centrifugal pump, Pentax (Italia)
Flow rate / working pressure: 2,400
Max. pressure: 7.95 kgf/cm²

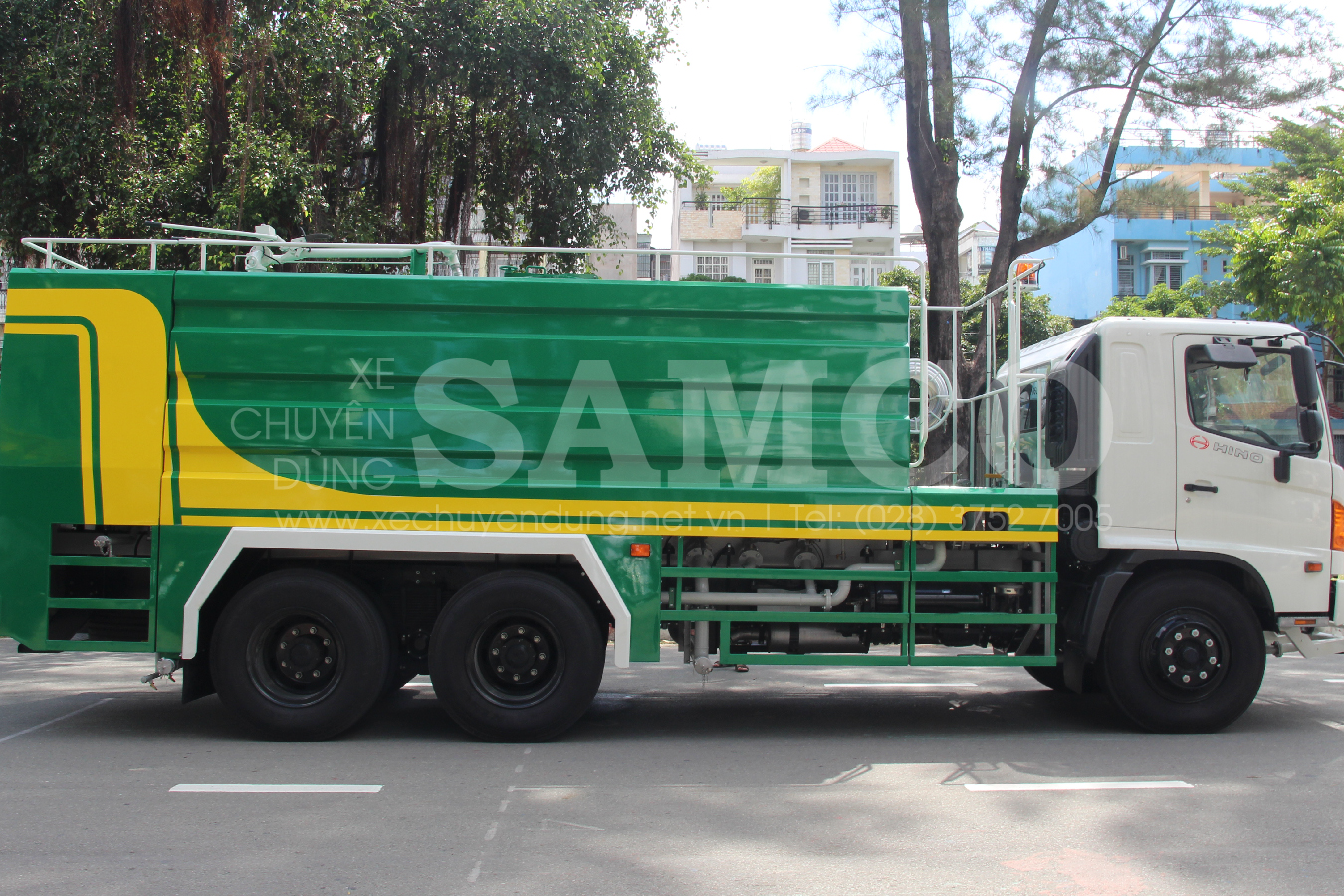

Sprinkler System Installed on the side of the working floor, which can adjust the tilt angle when spraying and change the installed position on the right or left of the vehicle

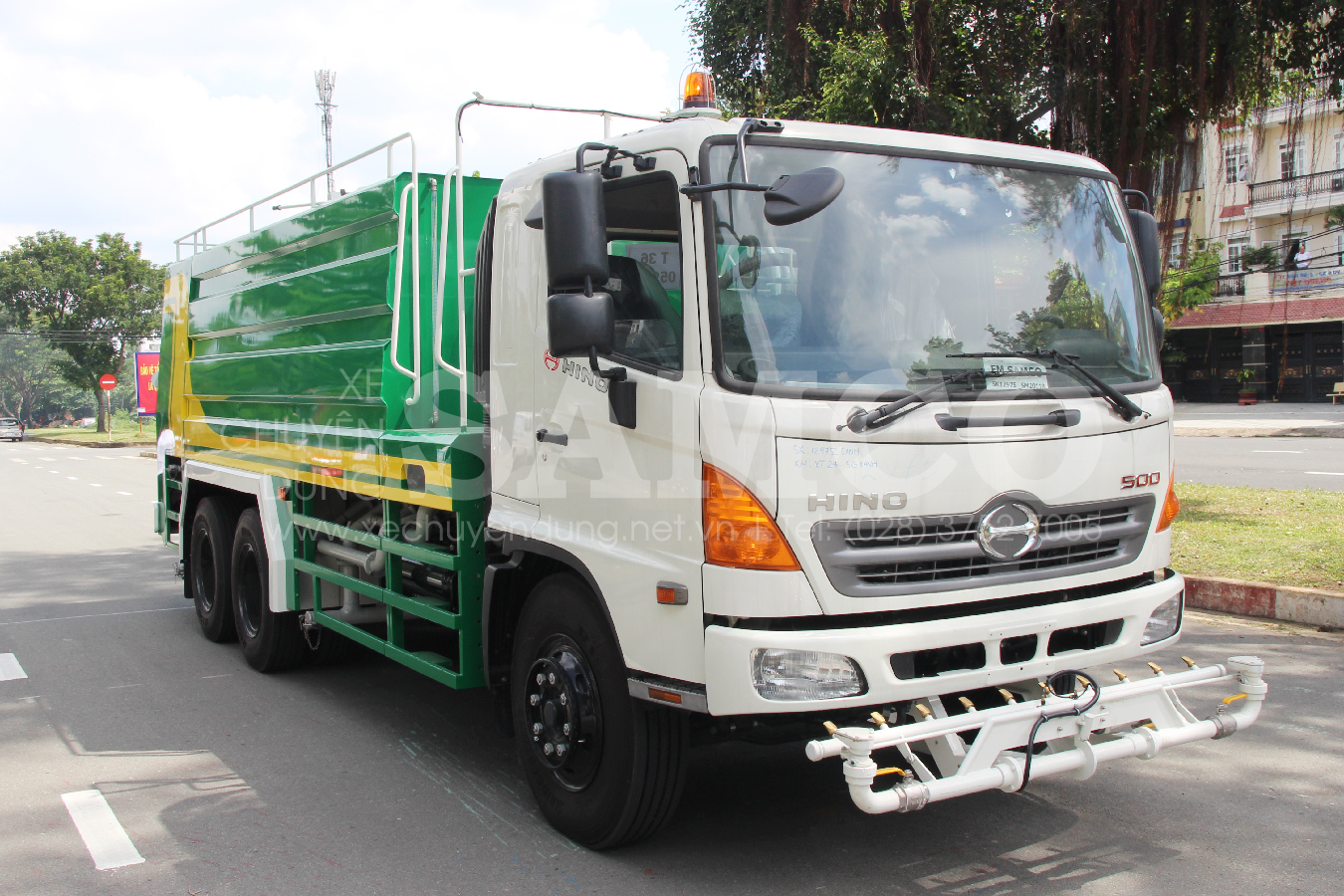

Road cleaning nozzle system Installed at the front of the vehicle adjustable spraying angle and foldable when unused
Monitor spraying system Model: adjustable monitor from straight to spray
Range : 0 ~ 40 m
Slewing angle : 0 ~ 360º
Vertical angle : 0 ~ 75º
Water nozzle Adjustable monitor from straight to spray
Cleaning tire tracks spraying nozzle Install behind the rear wheel, on both sides, spray spread, to clean the tire tracks after washing the road.
Operating system Spraying, cleaning and watering operation controlled by control system in cabin.
Headlight on cabin roof 01 set
Headlight on tank body 01 set
Headline support for night working 02 sets, installed on both left and right side of vehicle

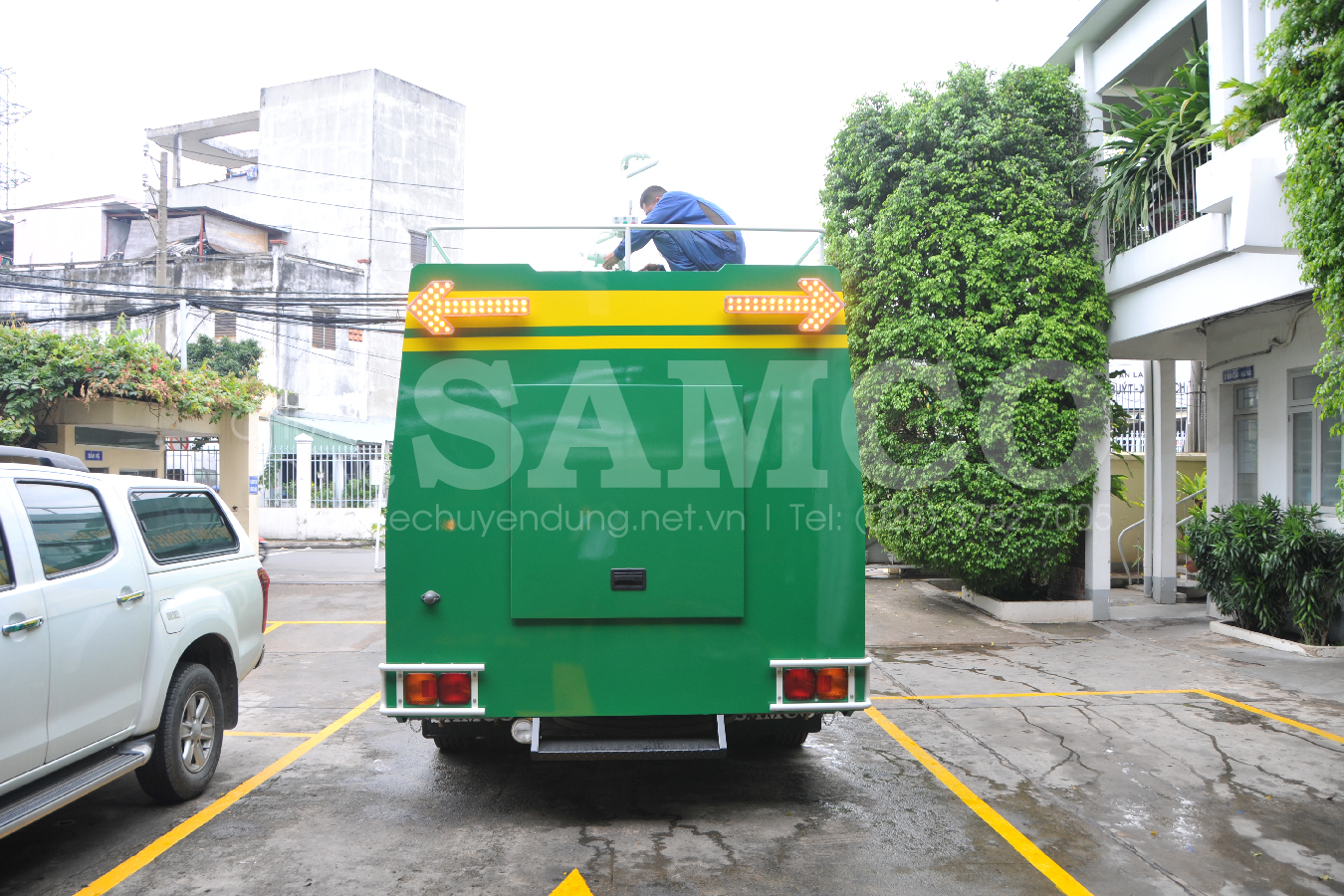

Warning LED 02 sets, flashing lights, mounted behind the sub-tank
Cabin As truck or customers demand
Cargo body Green, Blue, customer's demand
Product policy  In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation
Trucks

Detail images

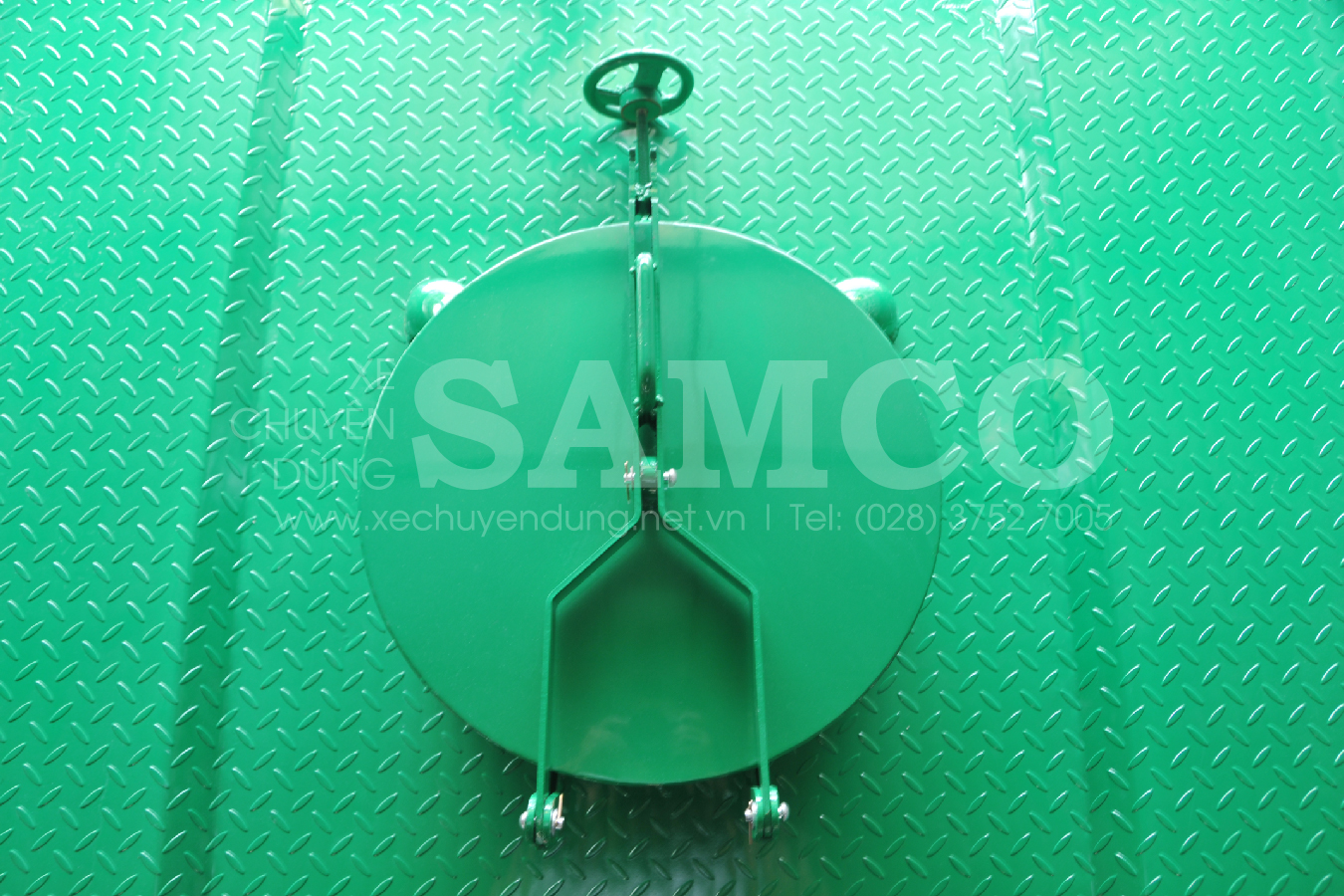

Nắp bồn chứa kiểm tra và sửa chữa cũng như vệ sinh bên trong bồn Nắp bồn chứa kiểm tra và sửa chữa cũng như vệ sinh bên trong bồn

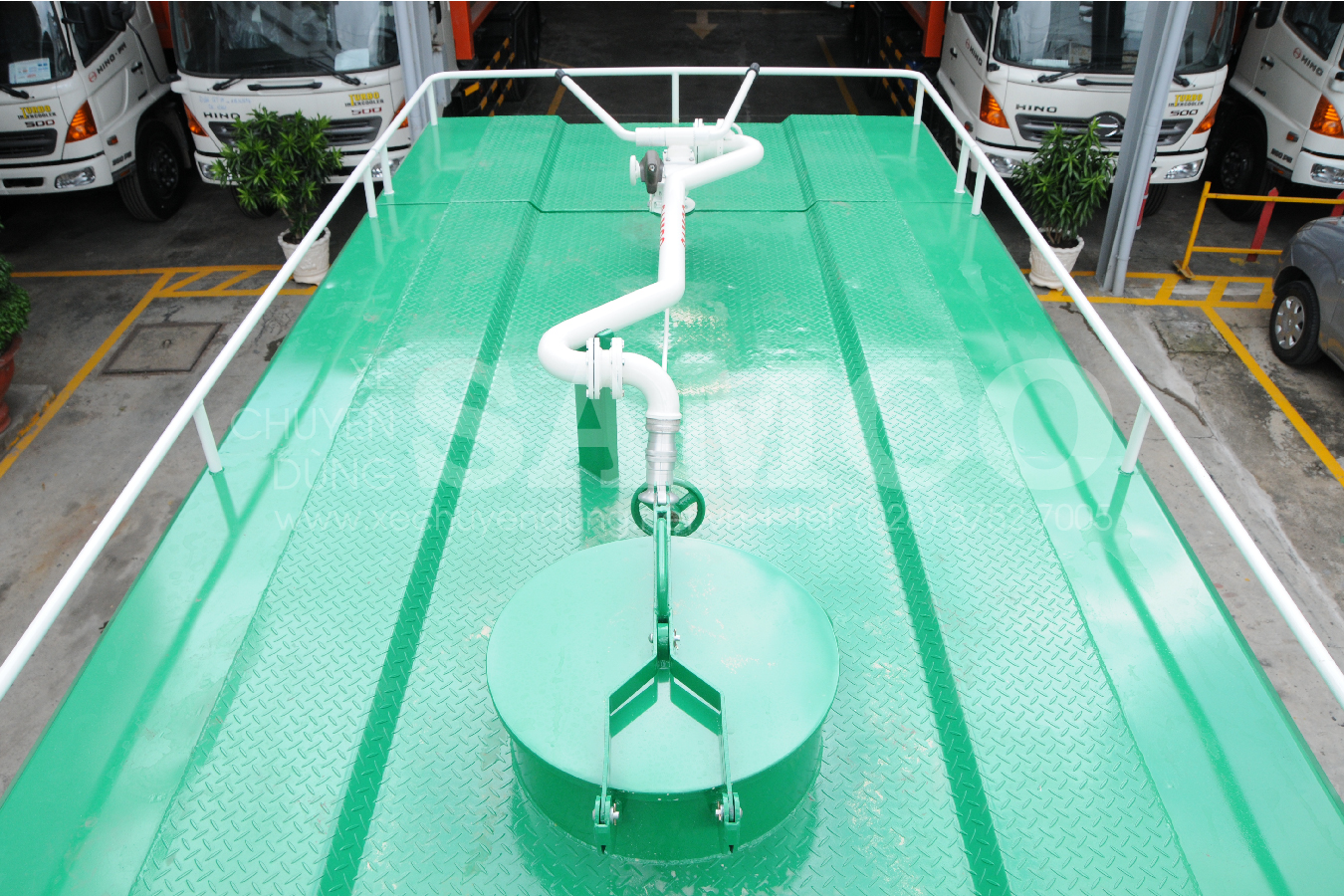

Cụm lăng giá phun lắp trên nóc bồn Cụm lăng giá phun lắp trên nóc bồn

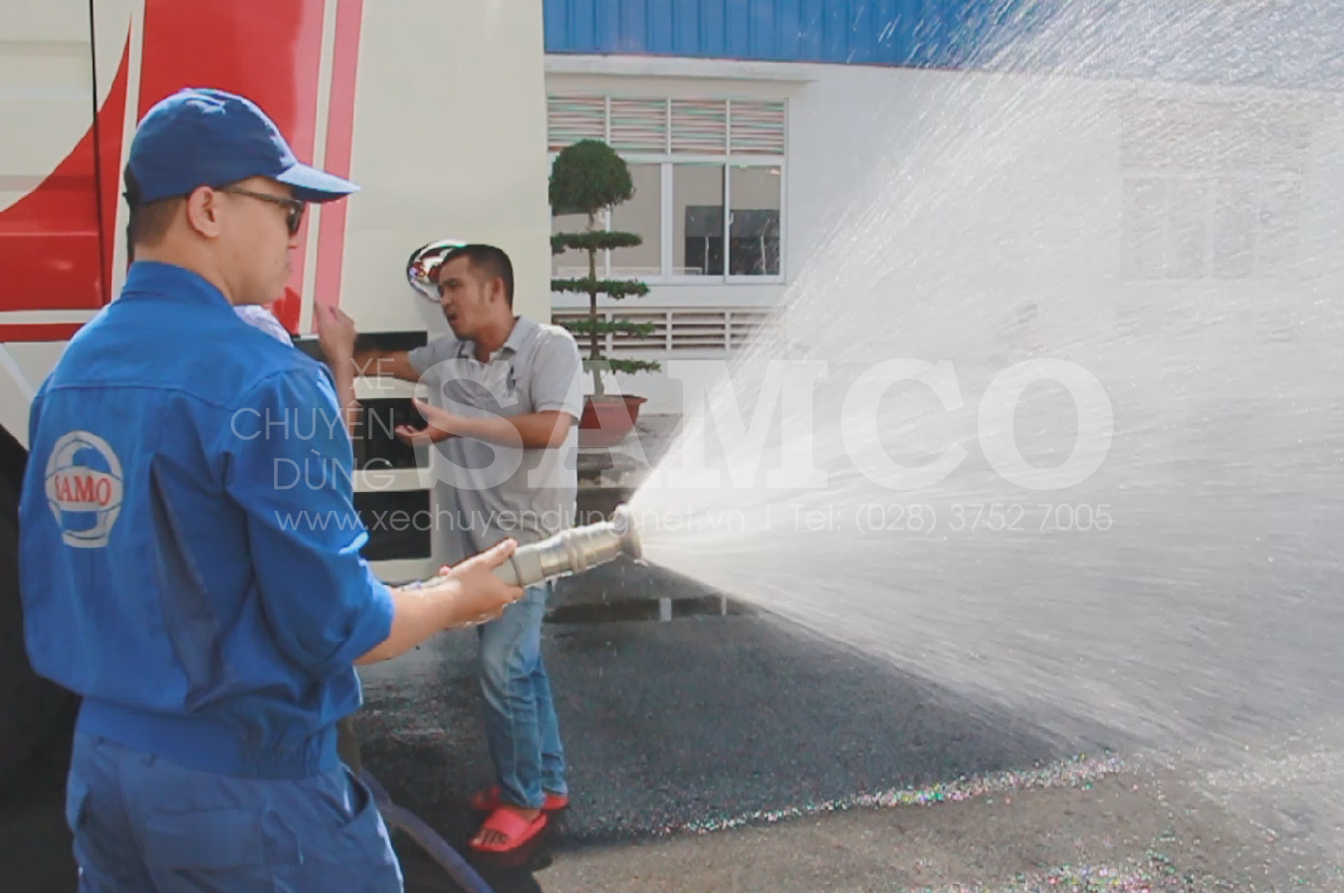

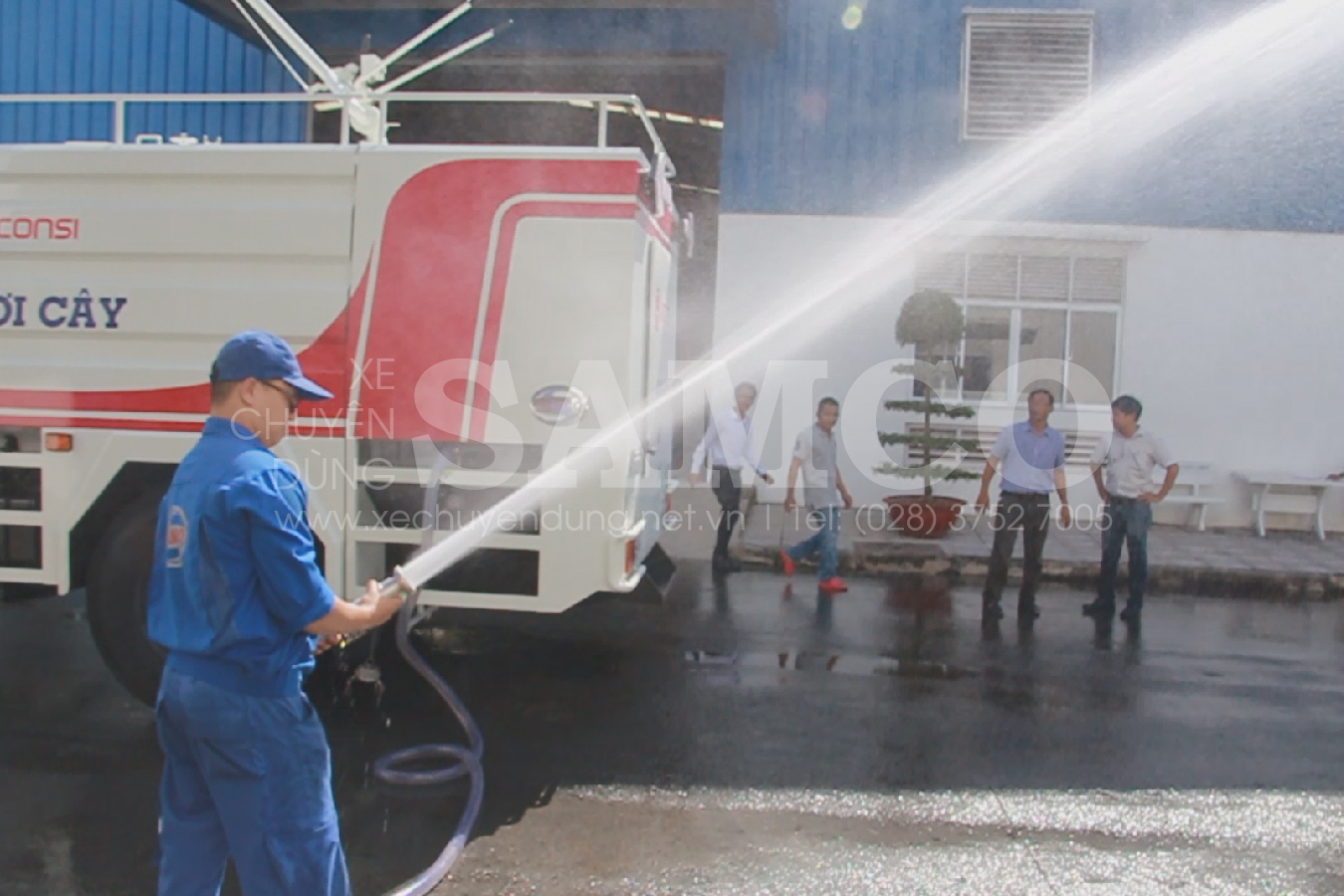

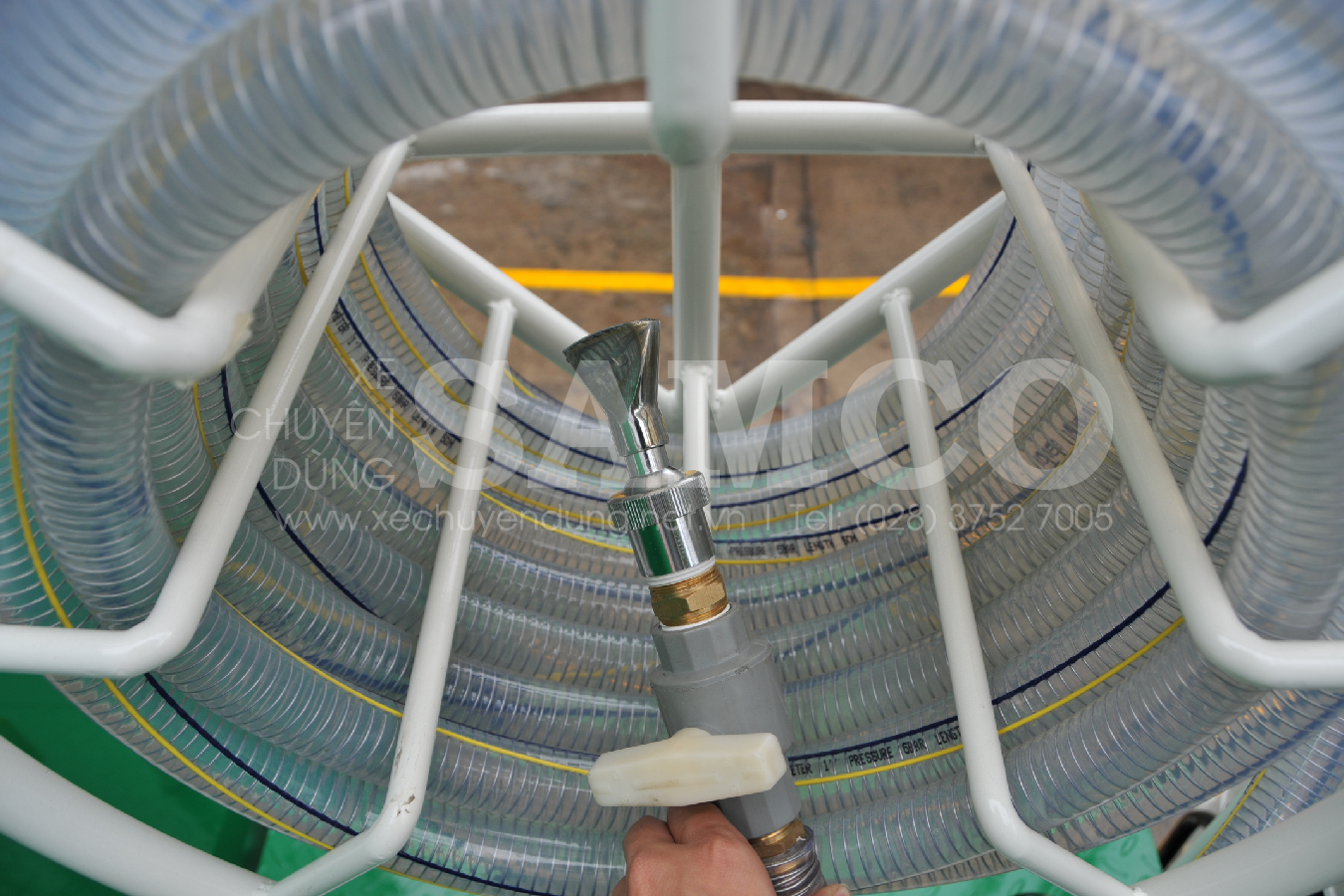

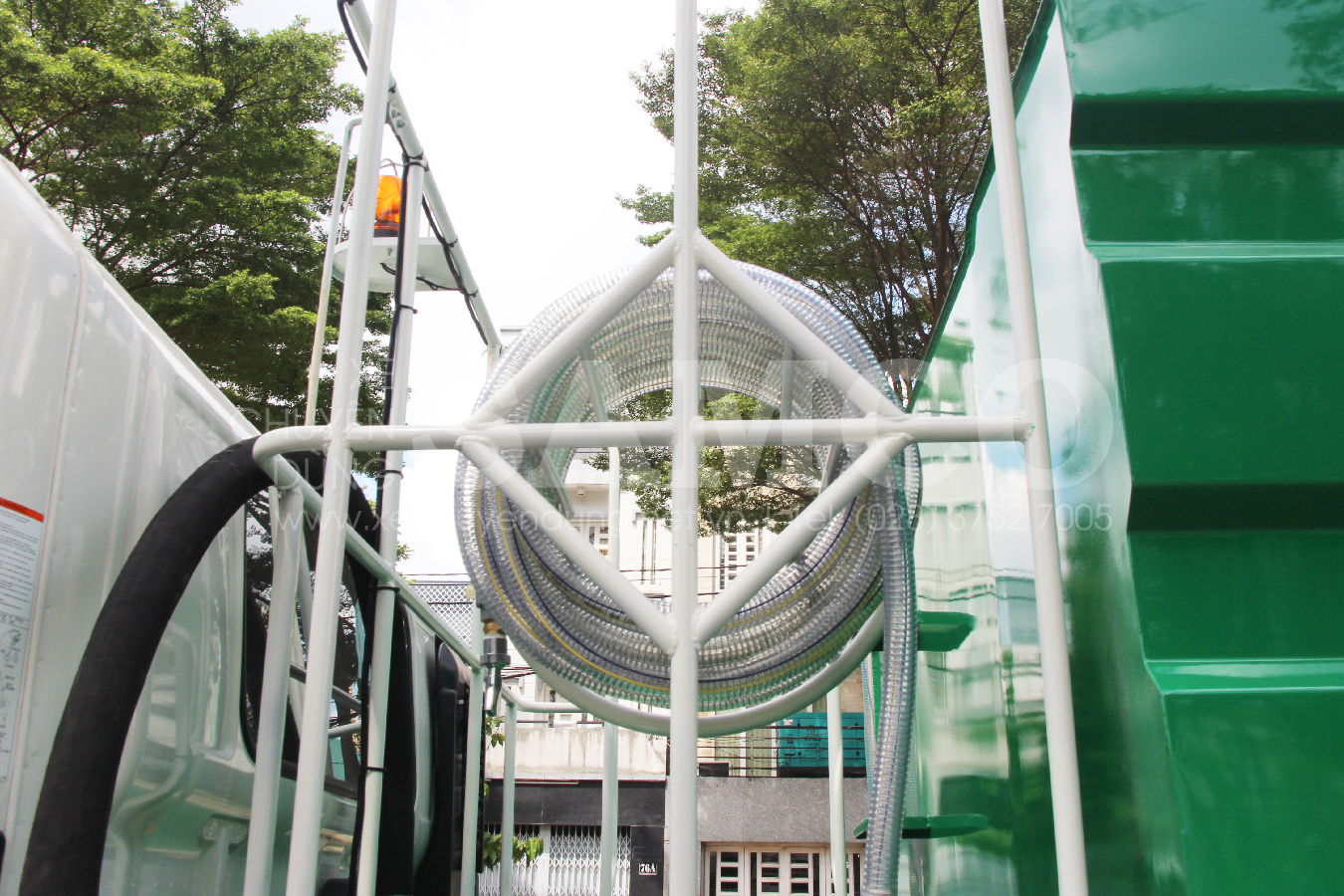

Súng phun nước cầm tay và tang quấn Súng phun nước cầm tay và tang quấn

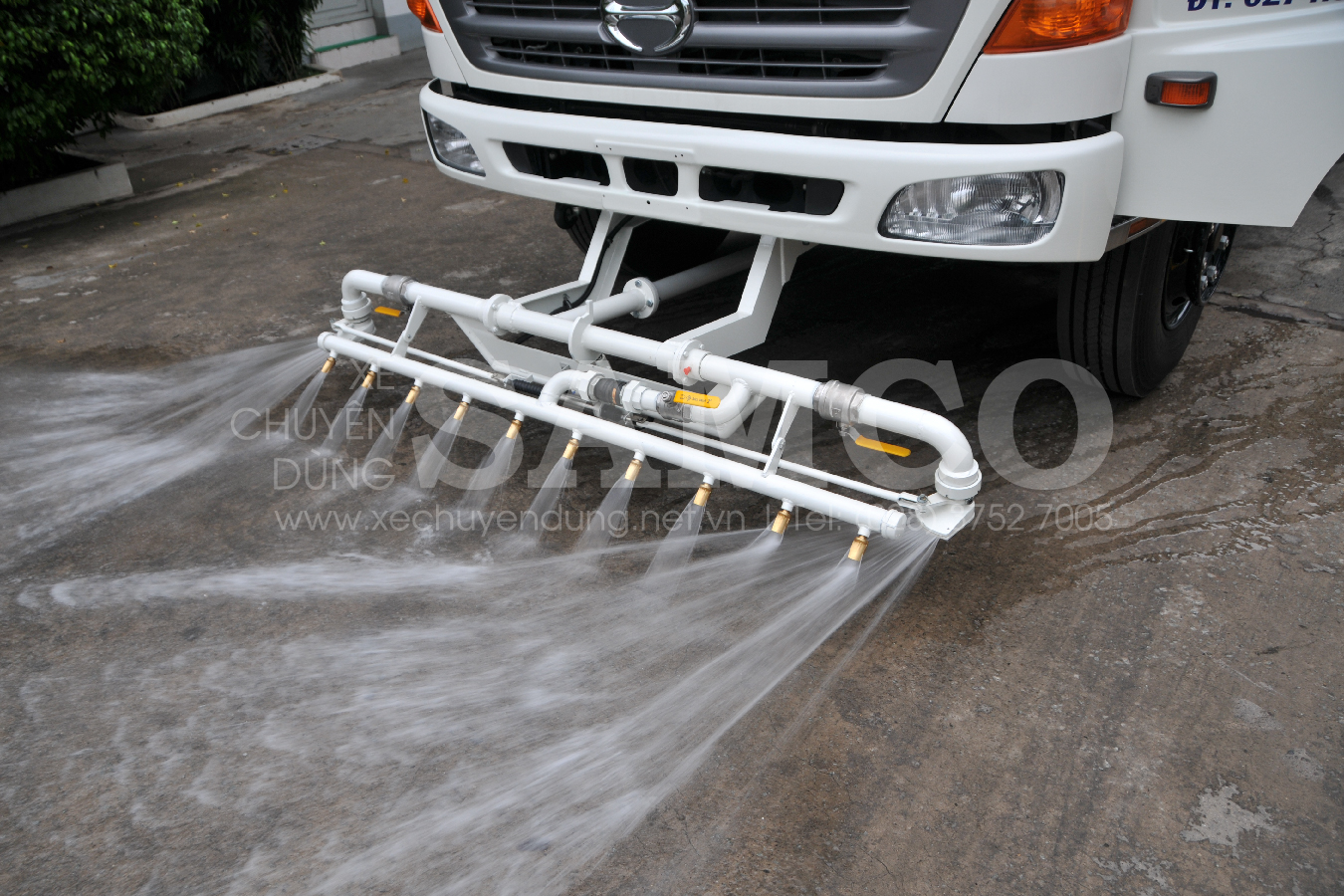

Cụm tưới rửa đường Cụm tưới rửa đường

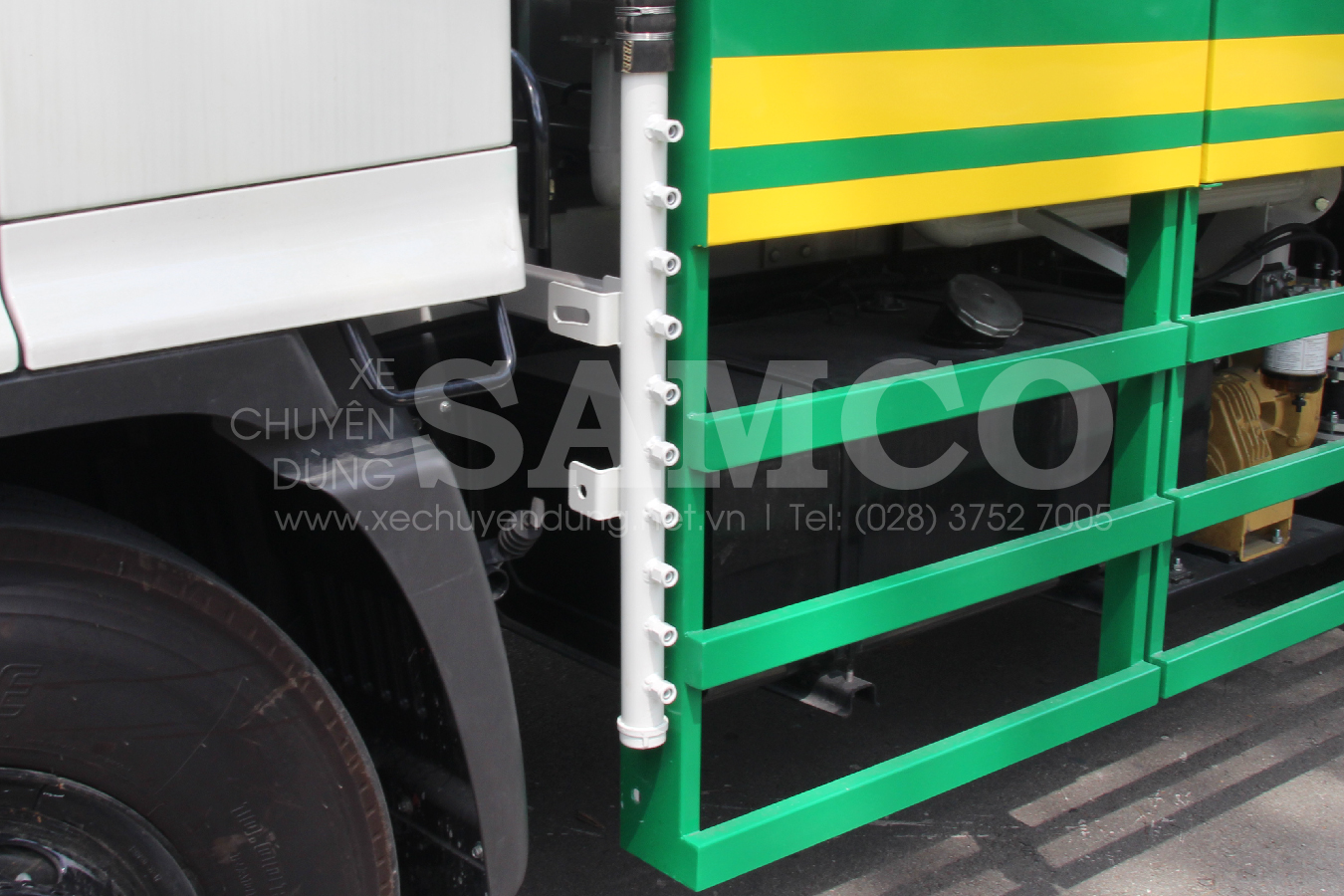

Giàn béc phun tưới thảm cỏ Giàn béc phun tưới thảm cỏ

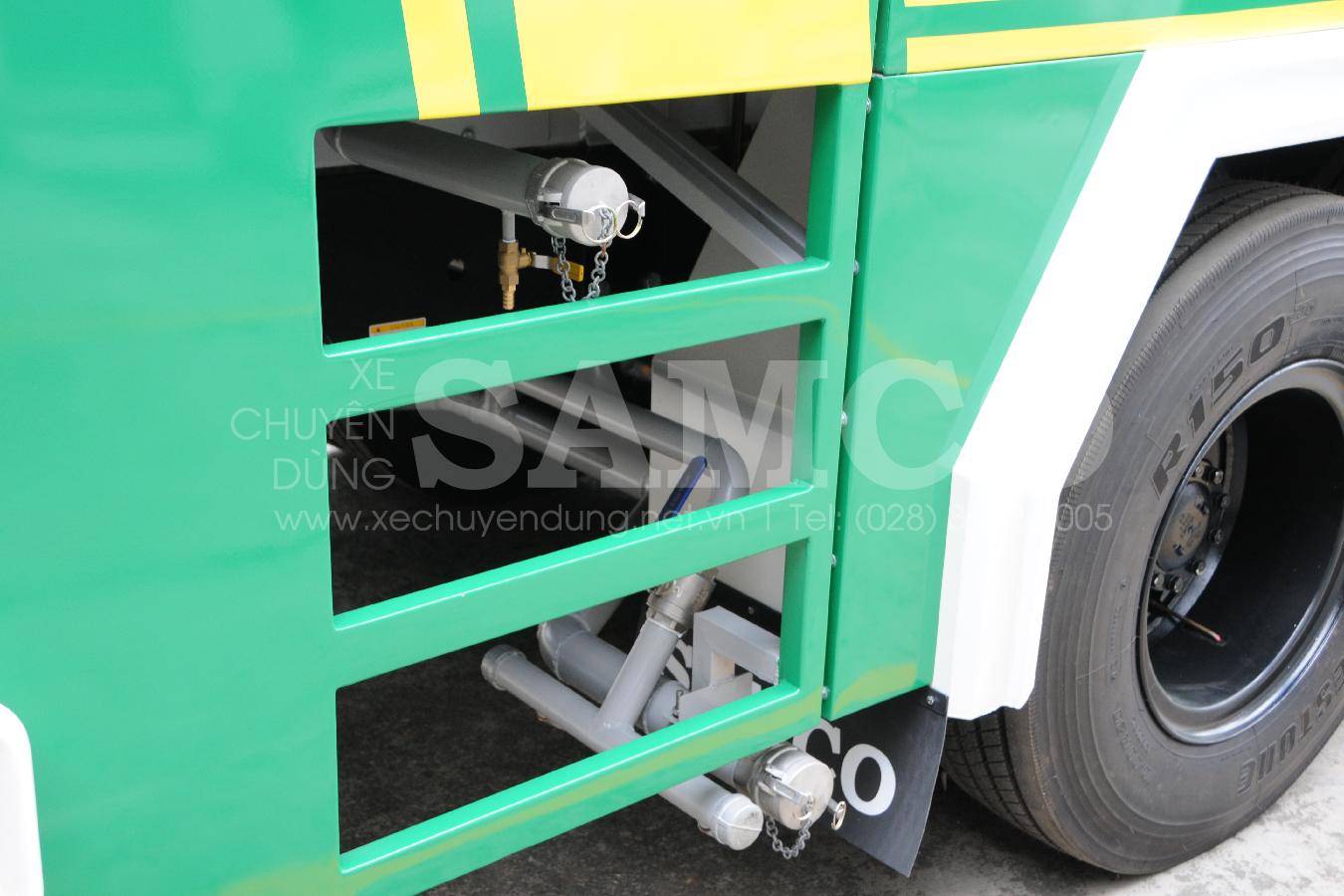

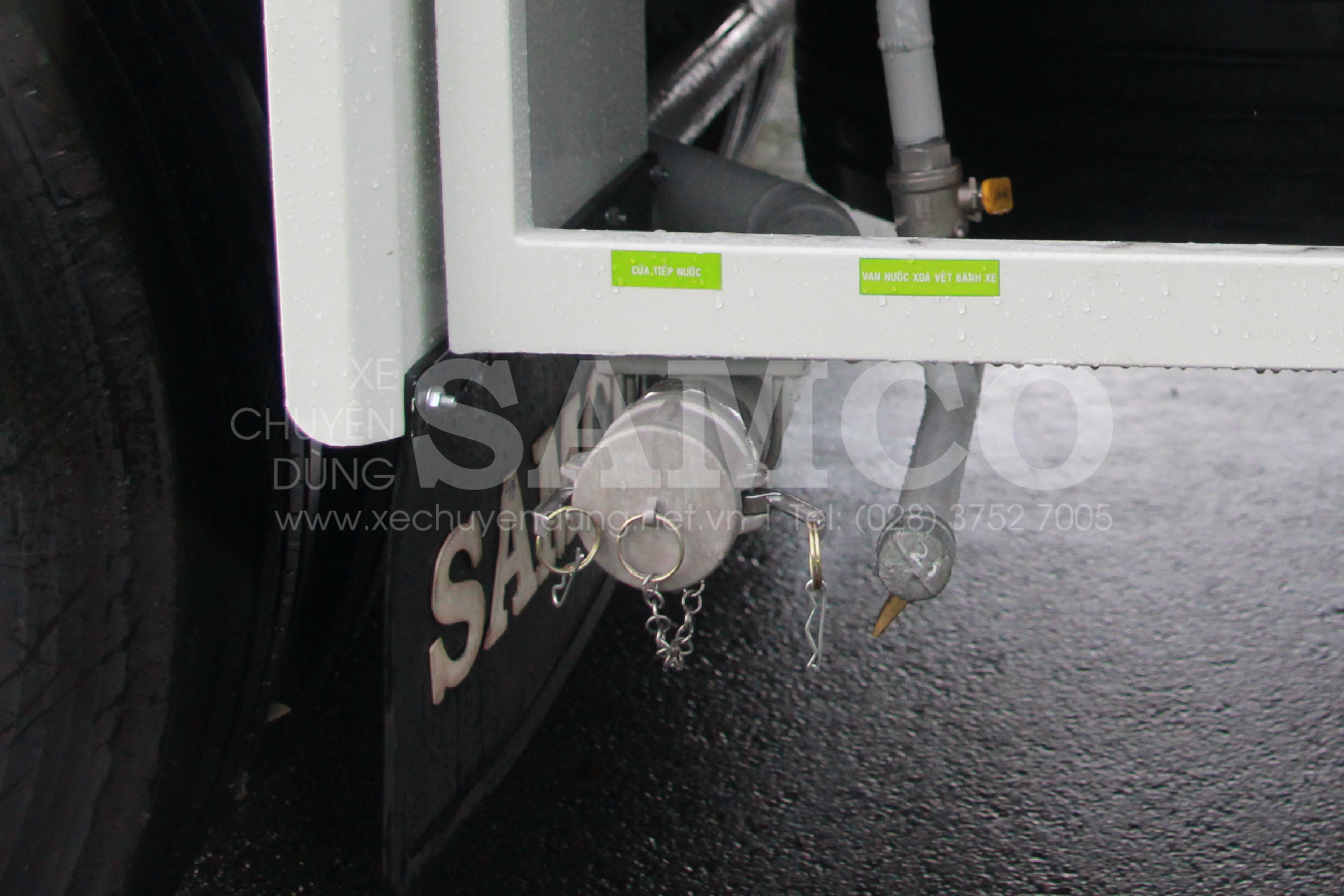

Ống tiếp nước và cụm béc xóa vết bánh xe Ống tiếp nước và cụm béc xóa vết bánh xe

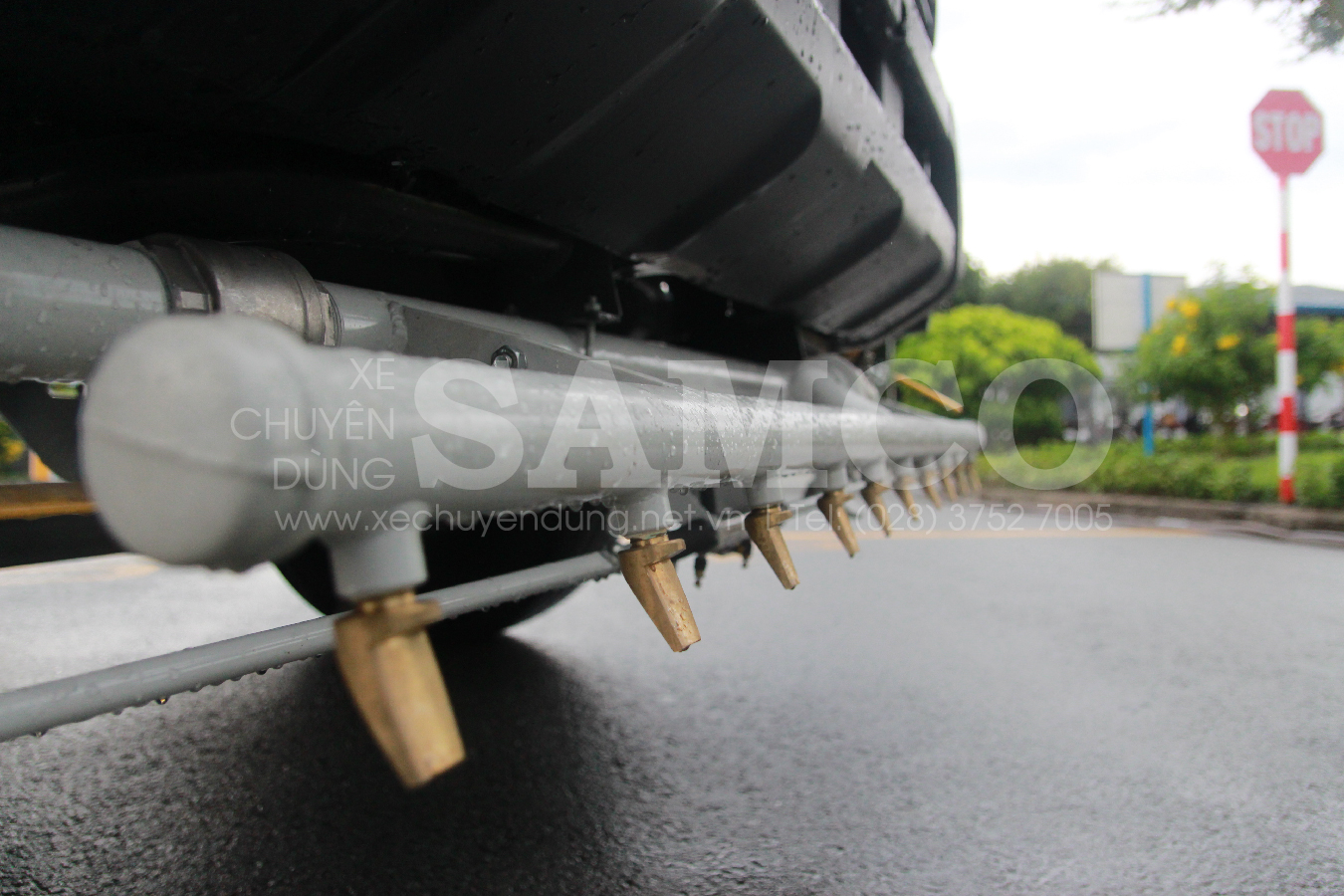

Cụm xóa vết bánh xe Cụm xóa vết bánh xe
Chỉ thị mực nước trong bồn Chỉ thị mực nước trong bồn

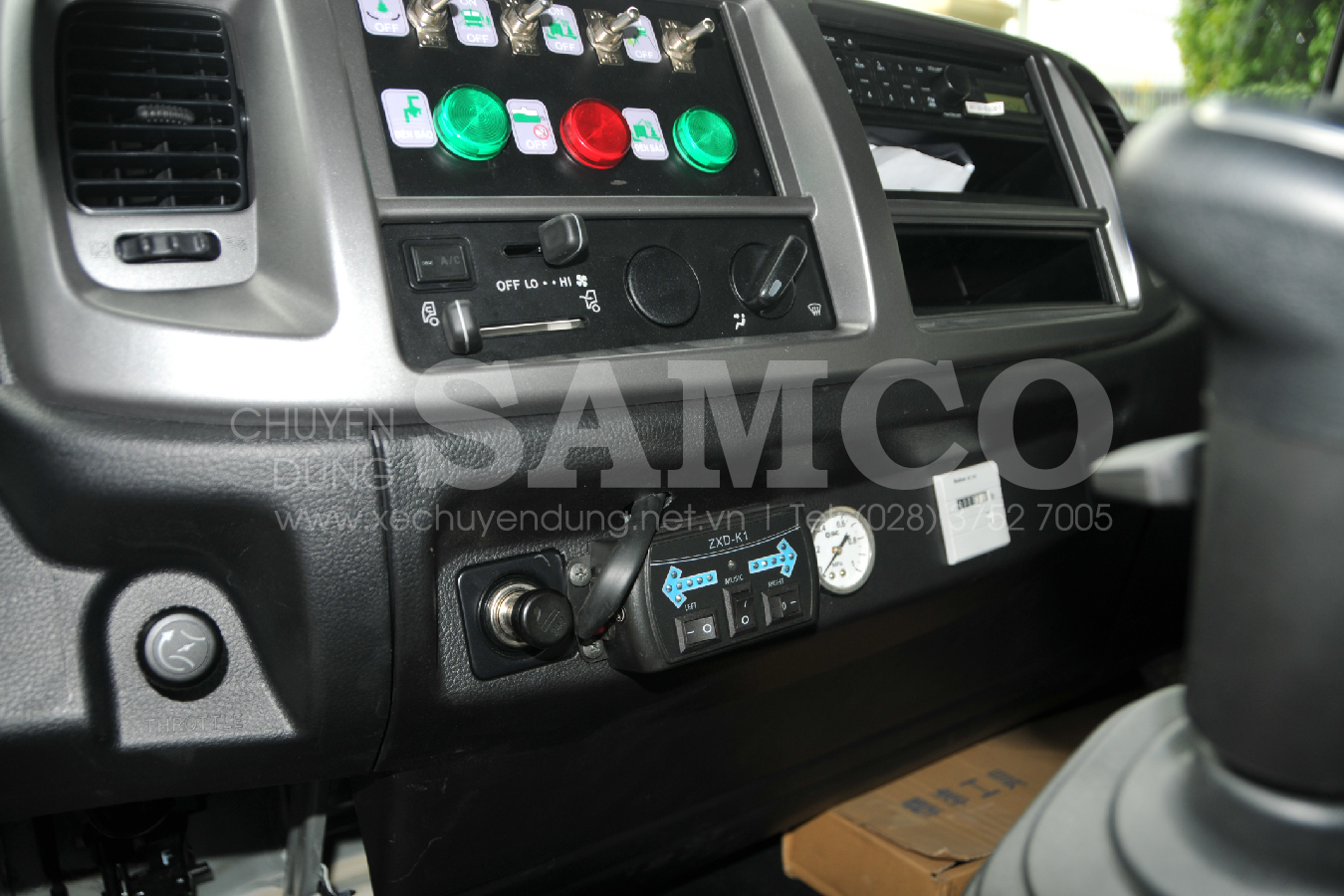

Bộ điều khiển đóng mở van nước Bộ điều khiển đóng mở van nước

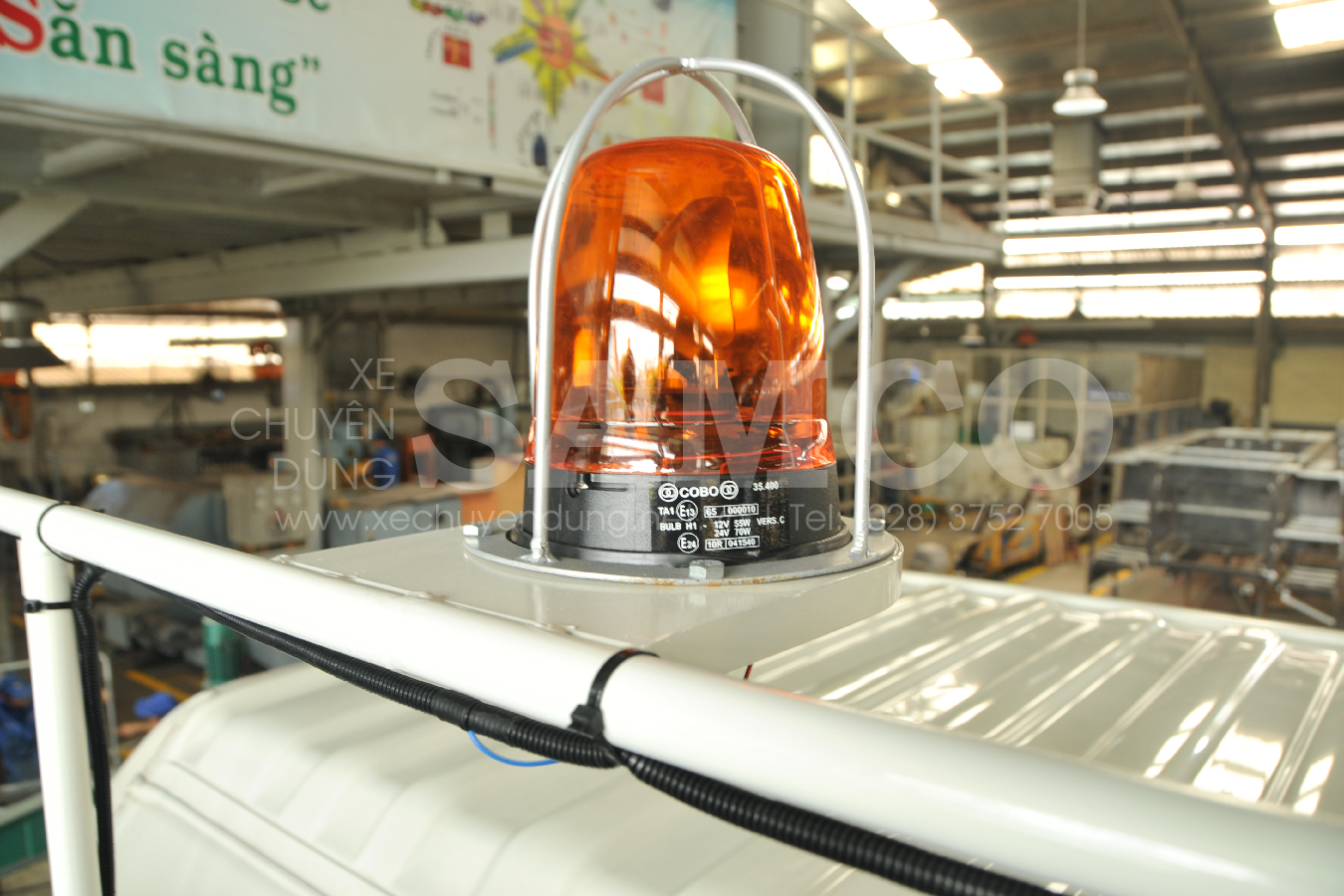

Đèn quay trên nóc cabin Đèn quay trên nóc cabin

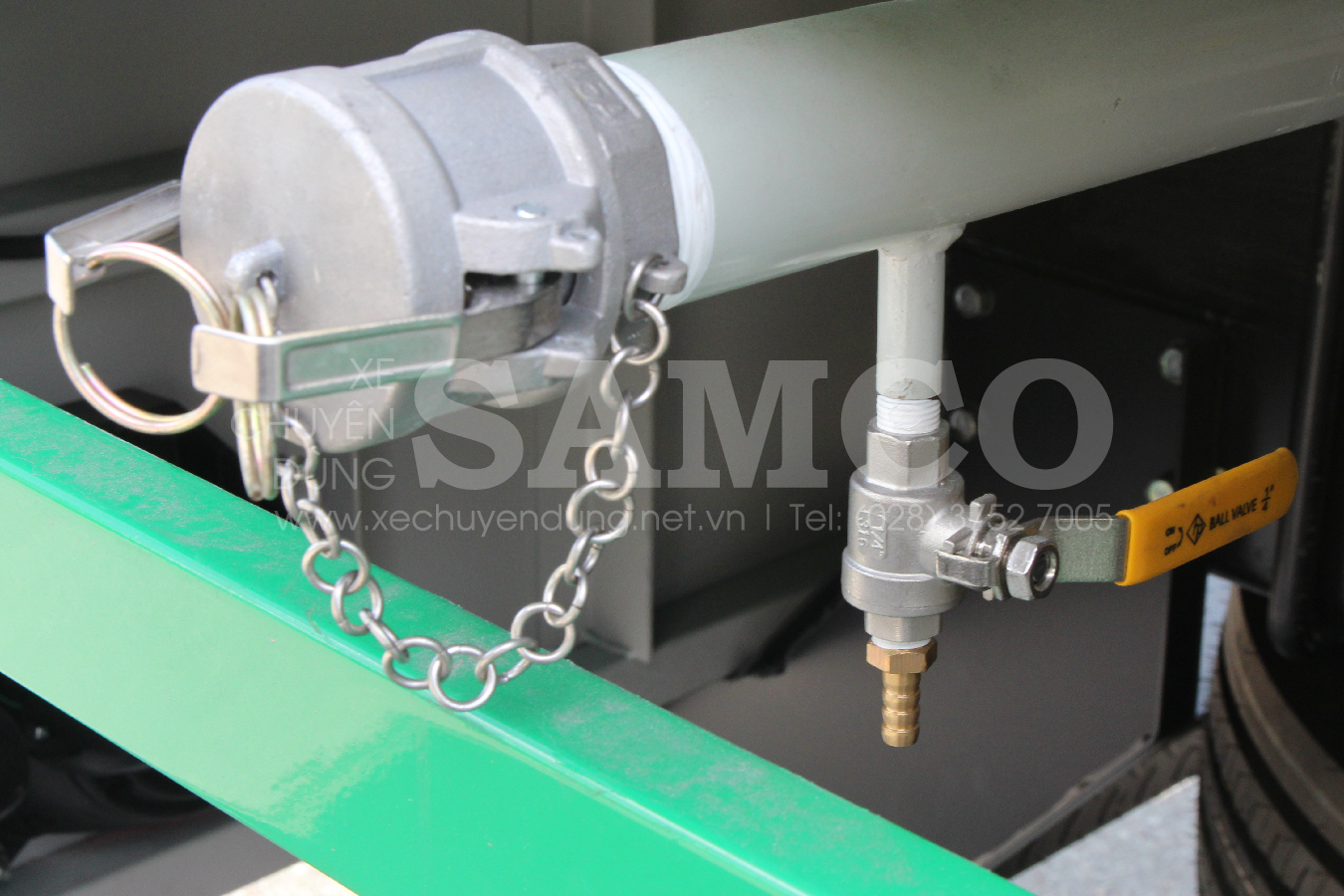

Ống tiếp nước Ống tiếp nước

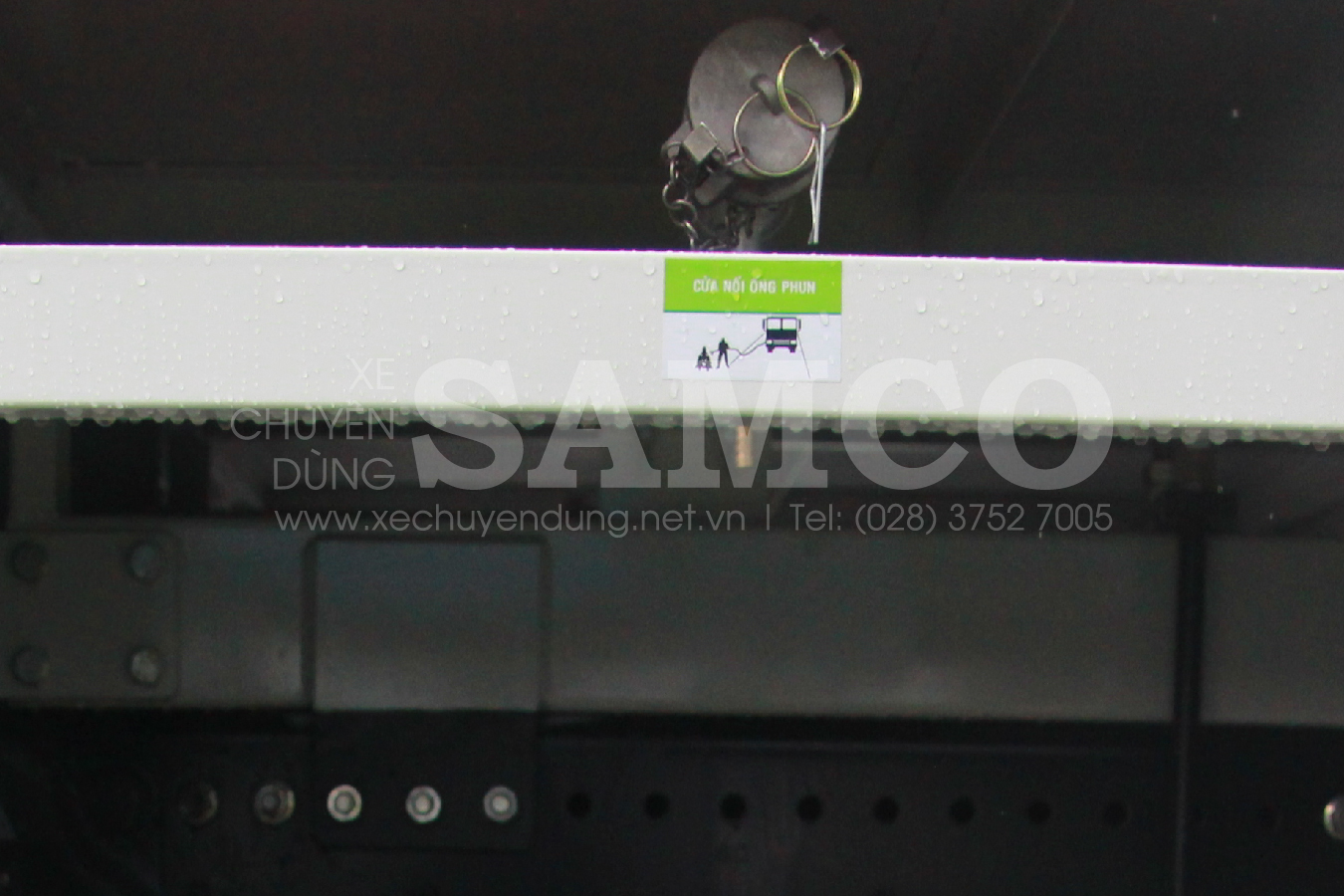

Ống nối ống phun cầm tay Ống nối ống phun cầm tay
