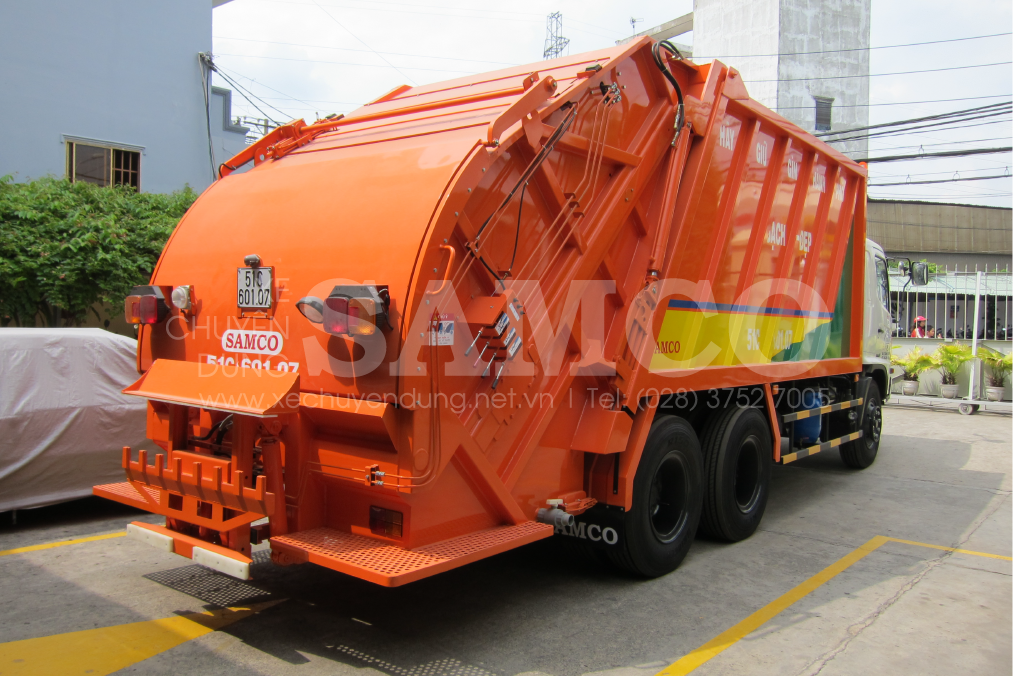

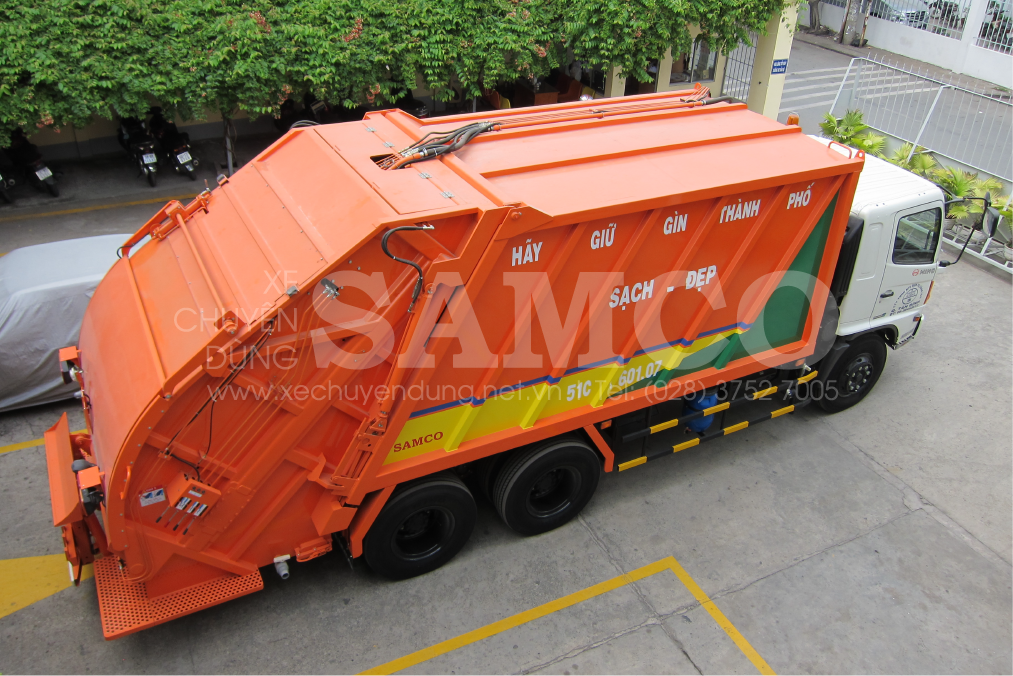

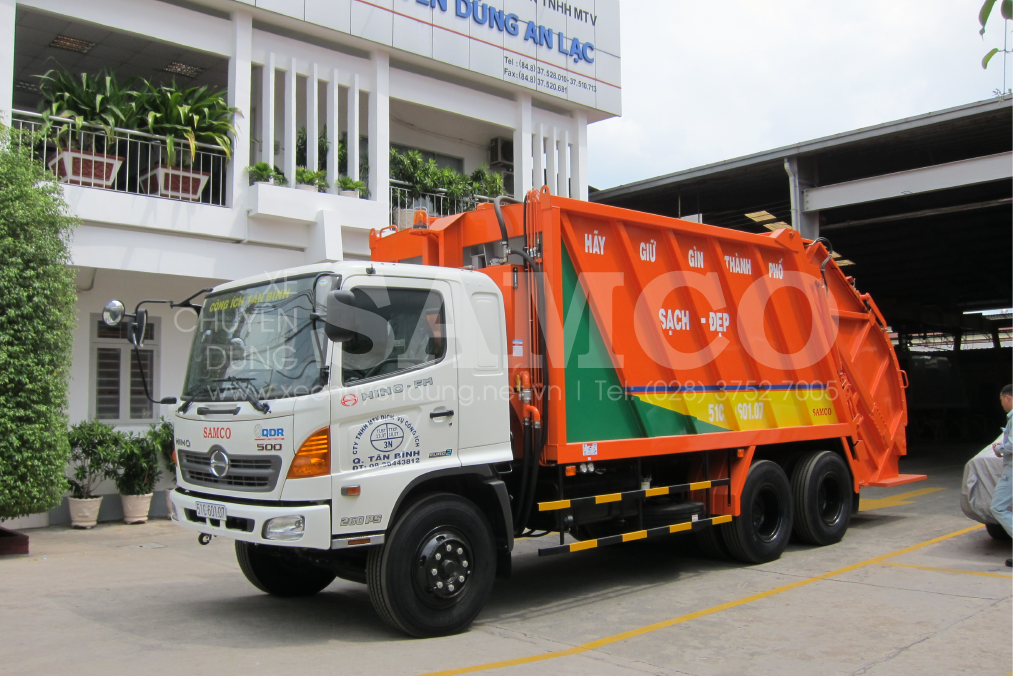

Garbage Truck - ERNHI 180

Overview

With the tank volume approx. 18.0m³, and is built on HINO FM8JN7A cab chassis, the biggest cab chassis manufactured in Vietnam, garbage truck model ERNHI 180 seems to be a king garbage truck in market. It is compatible with customers who have high demand for transferring solid waste from operating place to center treatment. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chassis: Hino FM8JN7A
  • Payload: 10,500 kg
  • Gross vehicle weight: 24,000 kg
  • Volume: 20.0 m³
  • Standard Emission: EURO 4
Brochure download
garbage truck, Hino, garbage tailgate cover, garbage loading structure

Technical Specifications

Cab chassis Hino FM8JN7A
Max. output 206 / 2,500 kW/rpm
Displacement 7,684 cc
Overall Dimesions (L x W x H) 8,800 x 2,500 x 3,500 mm
Wheelbase 4,030 + 1,350mm
Front and rear track 11.00R20
G.V.W 24,000 kg
Payload 10,200 kg
Tank   Volume: 18 m³
   Body profile: Curve wall, curve top
   Tank material: SPA-H steel, Japan
 Compacting force  27,000 kgf

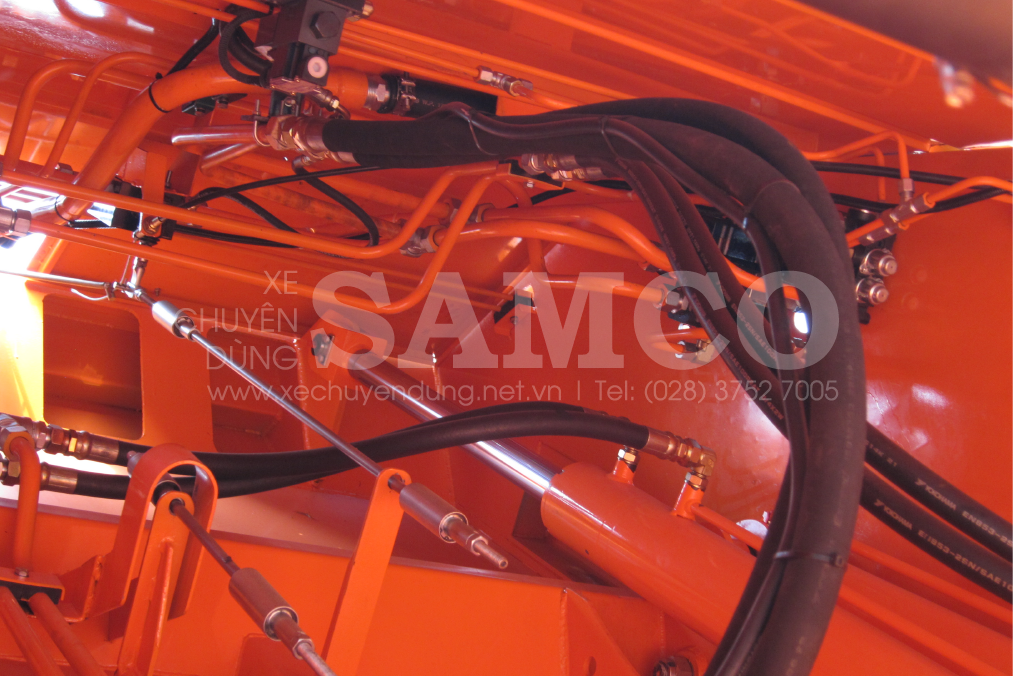

 Hydraulic equipments  Imported from Europe
 Operating accelerator:  Uninterrupted electro-pneumatic accelerator

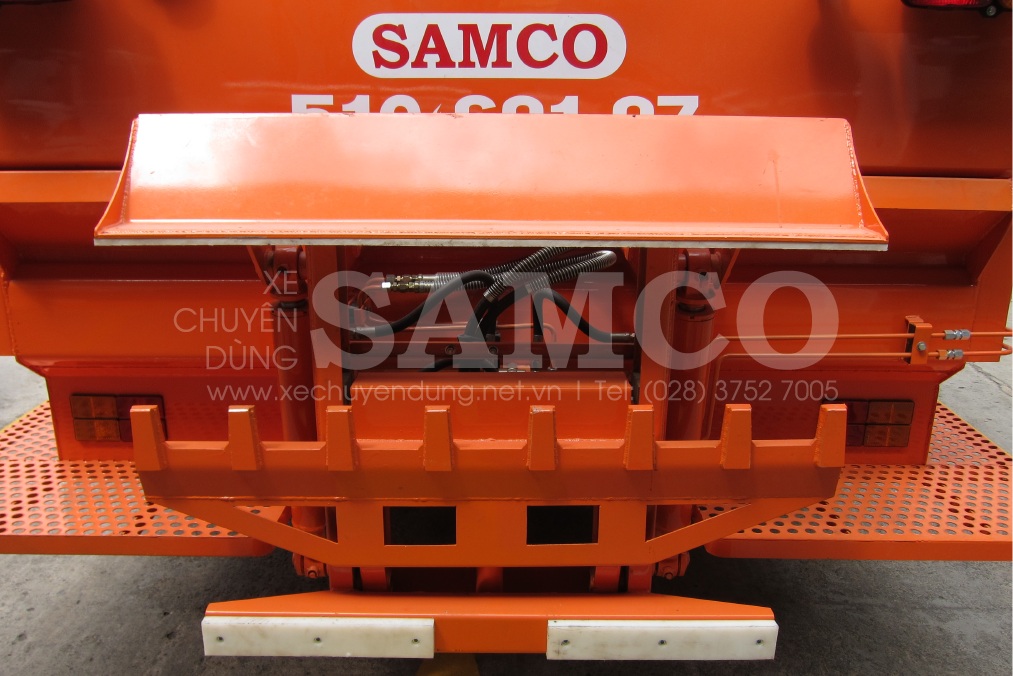

 Options  Garbage Tailgate Cover
   240 littre / 660 littre garbage bin clipper
   Two-arms garbage loading structure
   Standard garbage loading structure combined with removable garbage bulldoze
Garbage loading control by automatic mechanism  Clip bin
   Turn up bin into the trough
   Turn bin down
   Release bin
 Garbage compacting control by automatic mechanism in two modes  Continuous automatic operation
   Manual operation

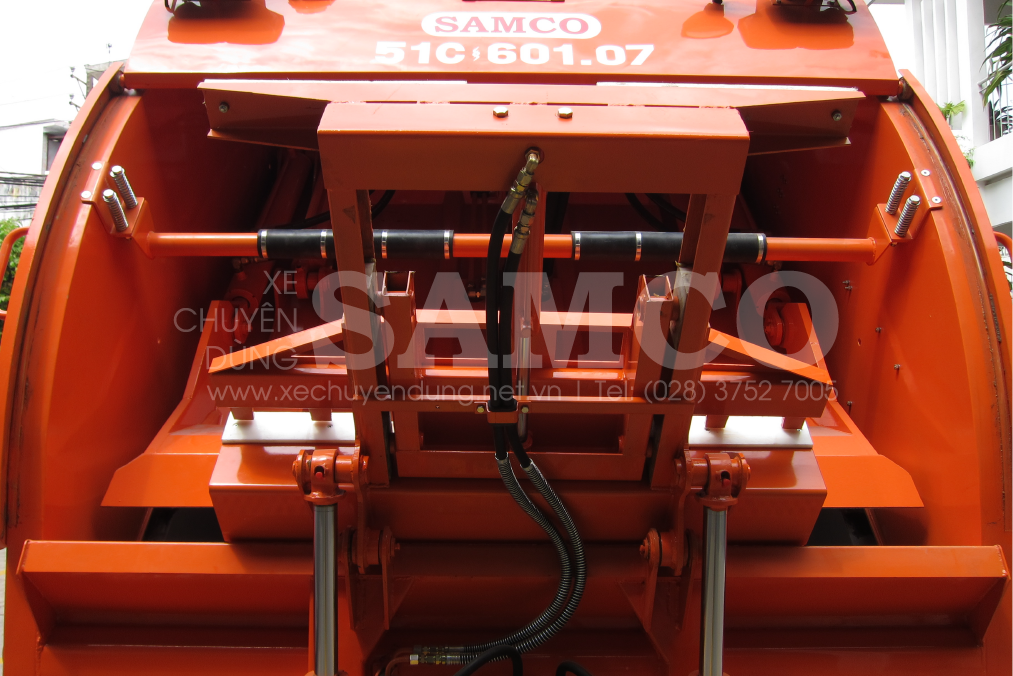

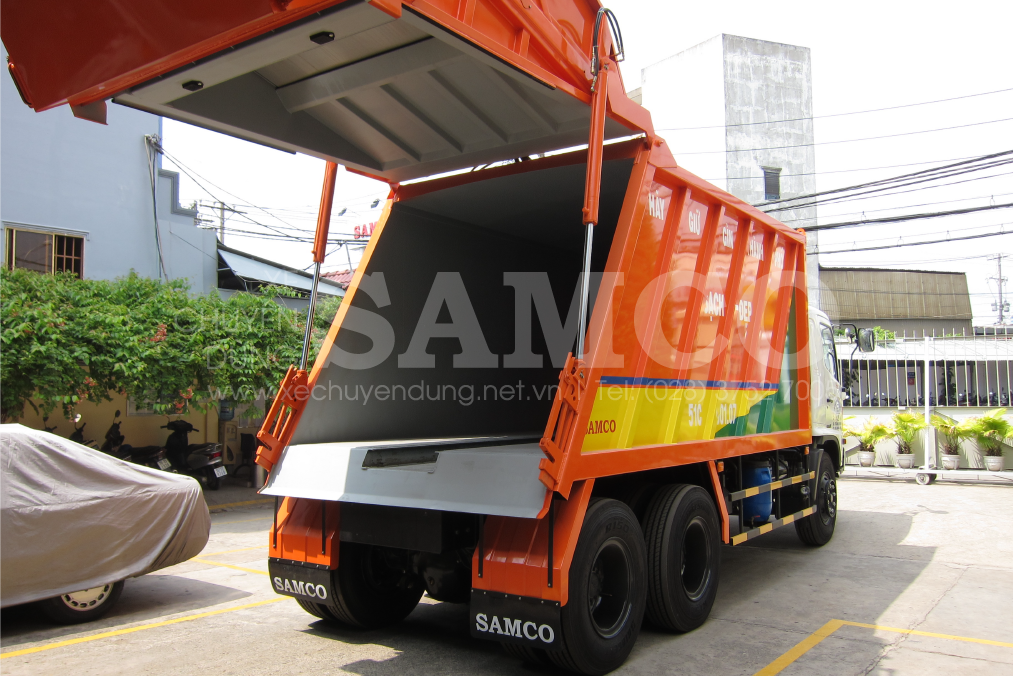

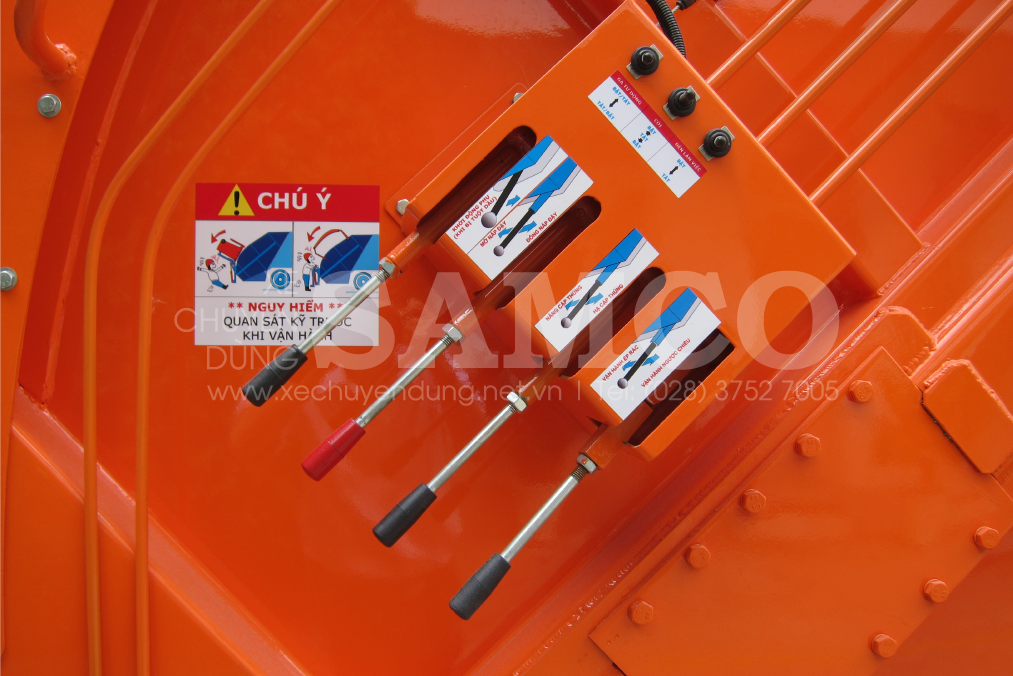

 Garbage ejecting control by manual control  Opening locks and lifting tailgate
   Ejecting garbage
   Moving the ejecting plate pack
   Lowering and locking the tailgate
Tank Blue, Green, Orange, White, Customers demand
Product policy  In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation
   The Garbage Tailgate Cover for standard garbage truck, bulldozing garbage truck, two-arms loading garbage truck is protected for industrial design under Vietnamese Law of Intellectual Property. All copy without SAMCO authorizing is unlawful.
Trucks

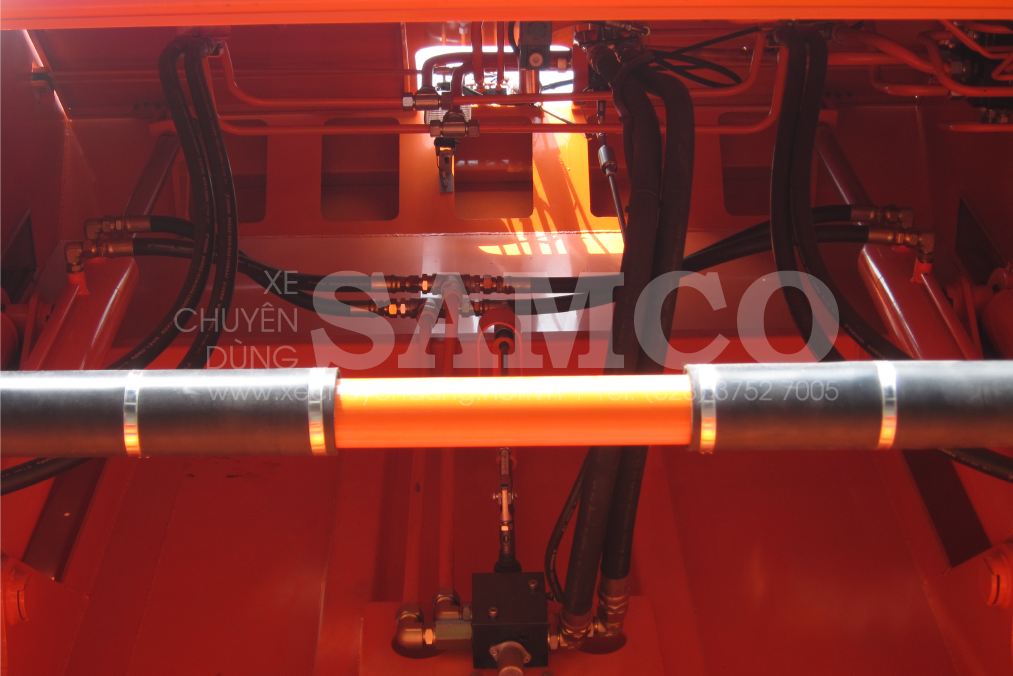

Detail images
