Garbage Truck - ERMHI 180

Overview

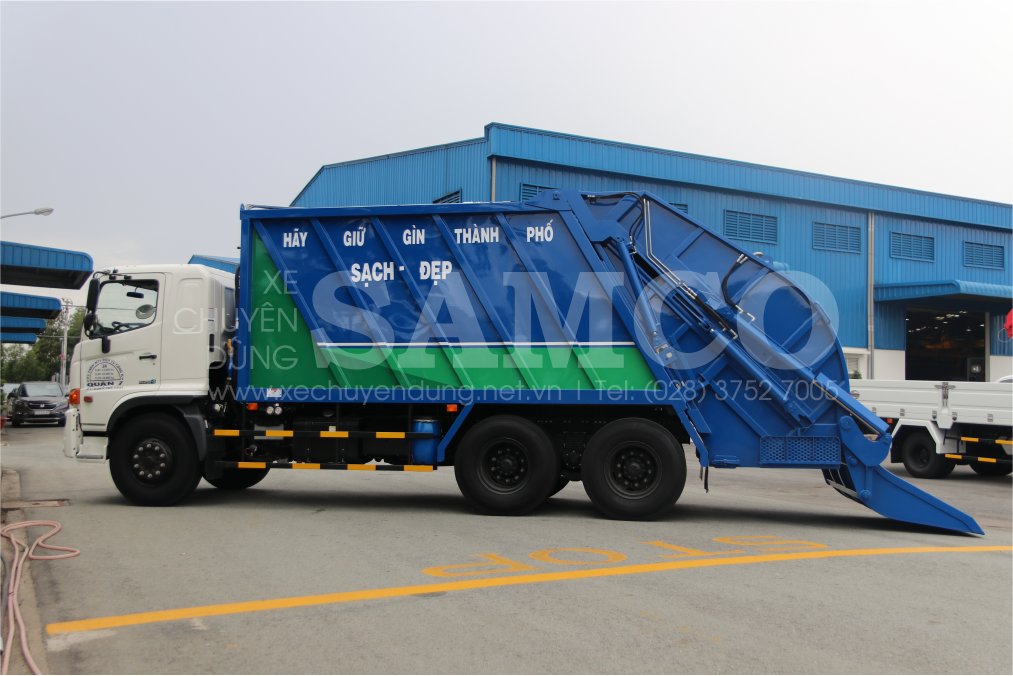

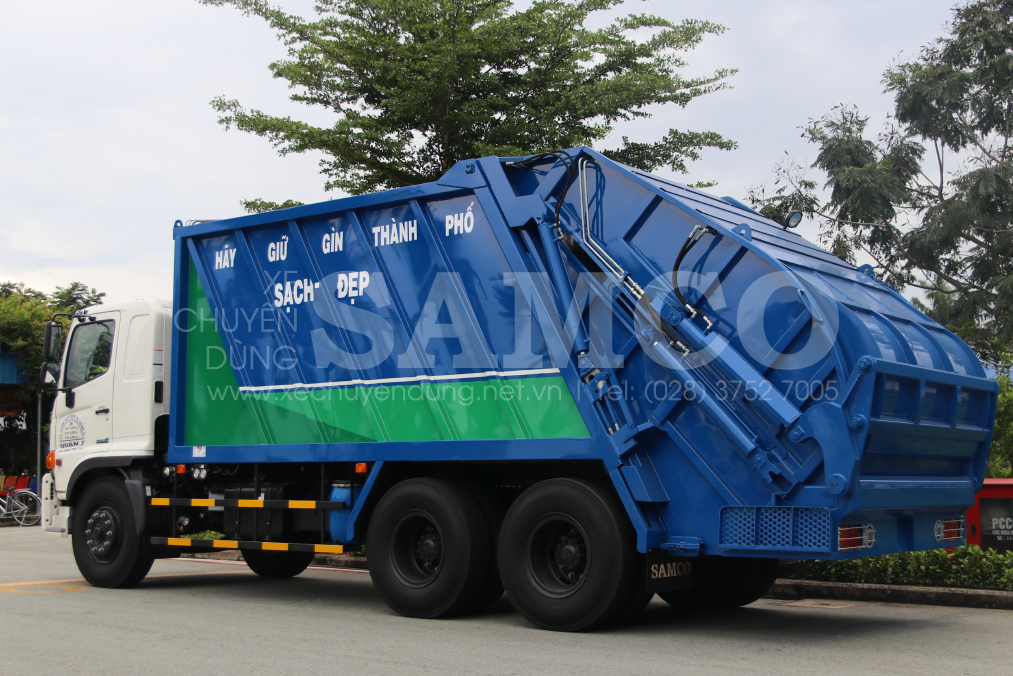

With the tank volume approx. 20.0m³, and is built on HINO FM8JN7A chassis, the biggest cab chassis manufactured in Vietnam, garbage truck model ERMHI 110 seems to be a king of garbage truck in market. It is compatible with customers who have high demand for transferring solid waste from operating place to center treatment. Equipped with bulldoze, it can operate in place where do not have standard bins.

  • Chassis: Hino FM8JN7A
  • Payload: 10,300 kg
  • Gross vehicle weight: 24,000 kg
  • Volume: 20,0 m³
  • Standard Emission: EURO 4
Brochure download
garbage truck, Hino,

Technical Specifications

Cab chassis Hino FM8JN7A
Max. output 206 / 2,500 kW/rpm
Displacement 7,684 cc
Overall Dimesions (L x W x H) 8,800 x 2,500 x 3,500 mm
G.V.W 24,000 kg
Payload 10,300kg
Tank Volume: 18 m³
Body profile: Cure wall, curve top
Tank material: SPA-H steel, Japan
Compacting force 27,000 kgf

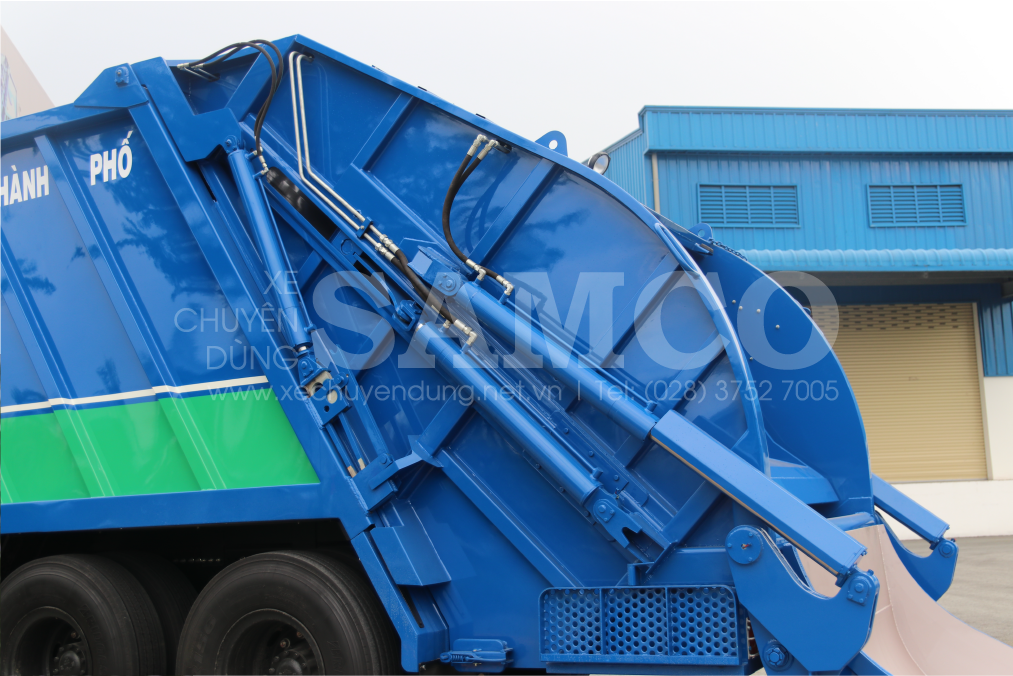

Hydraulic equipments Imported from Europe
Operating accelerator: Uninterrupted electro-pneumatic accelerator
Options For bulldozing garbage structure
Operating accelerator Uninterrupted electric accelerator

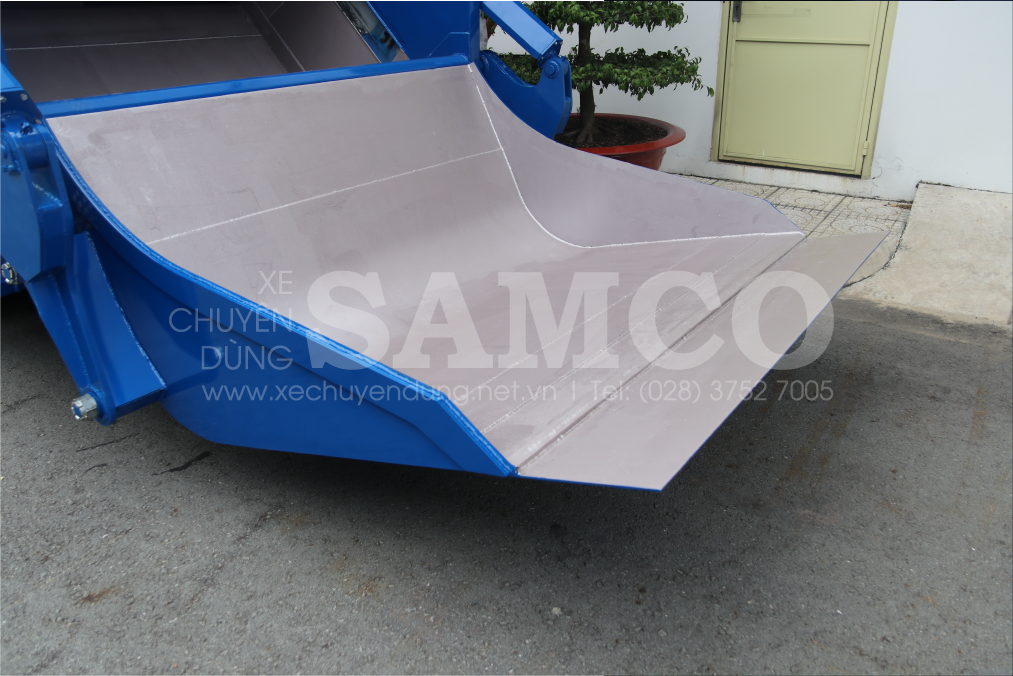

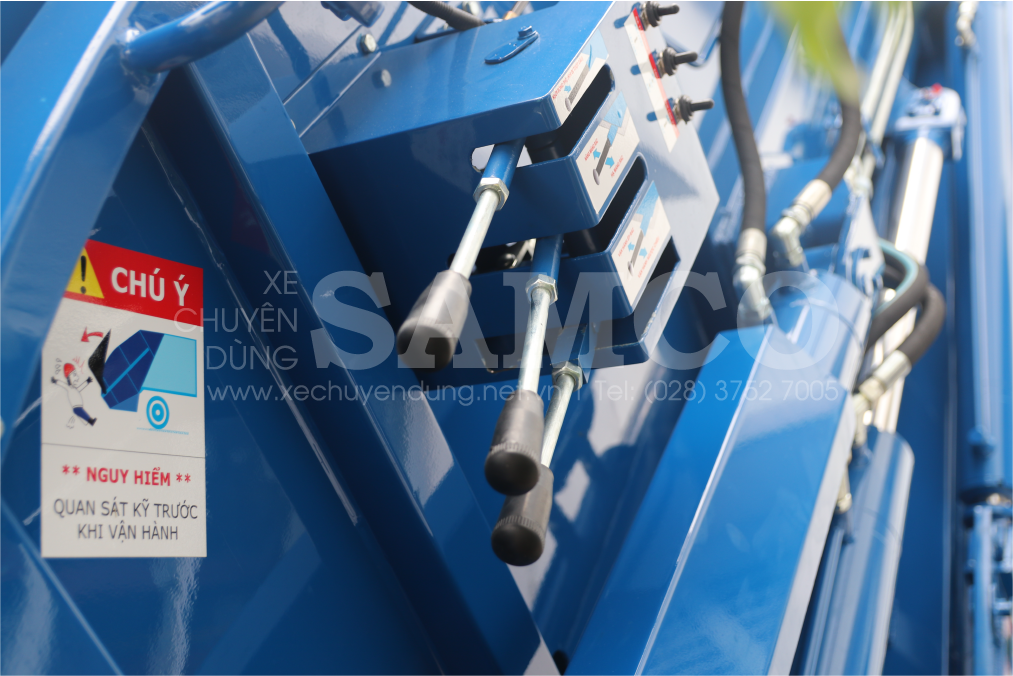

Garbage loading control - Turn up bulldoze into the trough
- Turn back bulldoze to initial position
Garbage compacting control - Continuous automatic operation
- Manual control
Garbage ejecting control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue, Green, Orange, White, or design marquette base on customer's request
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation
Trucks

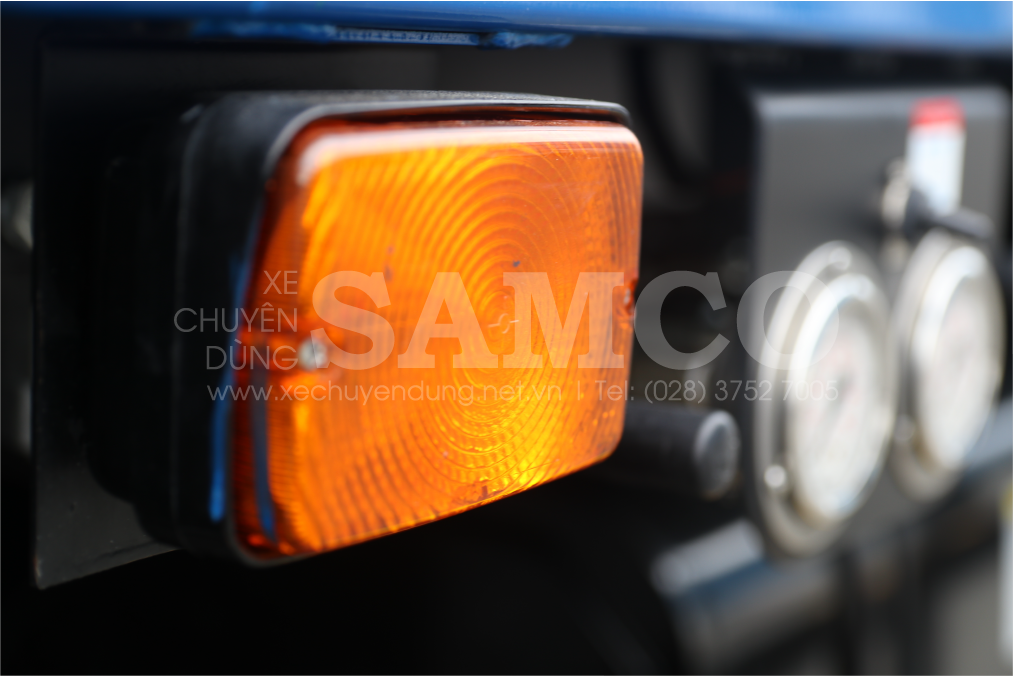

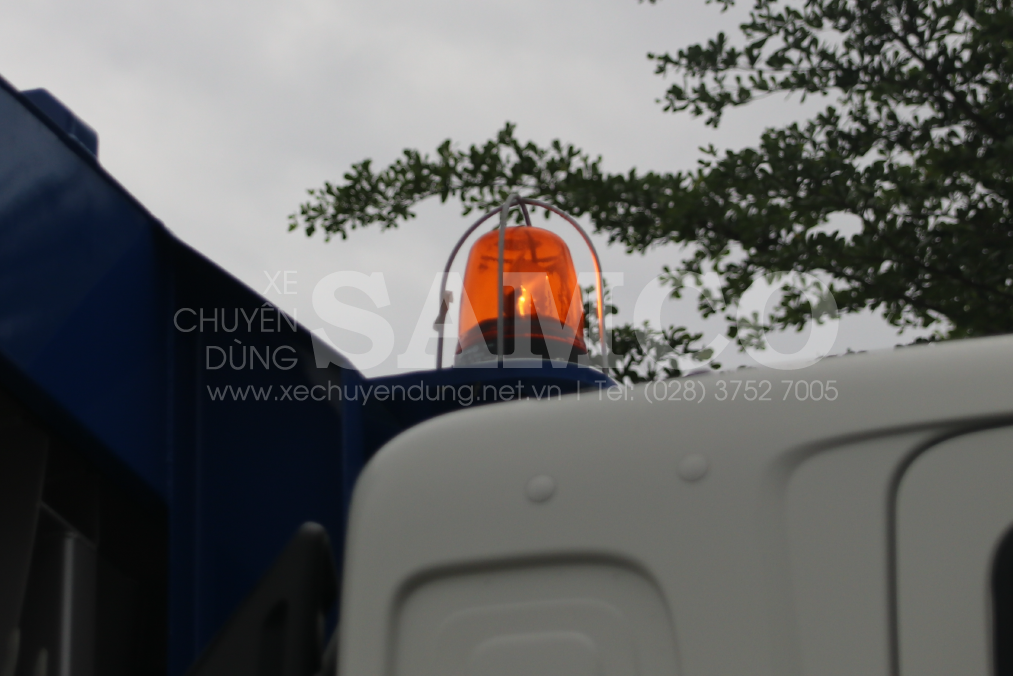

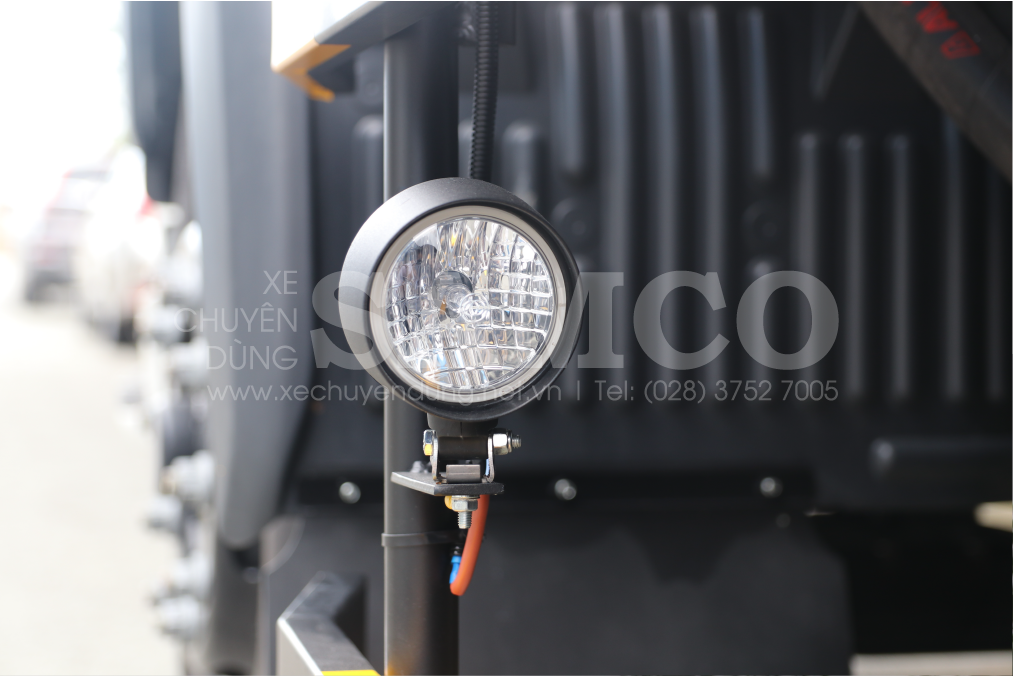

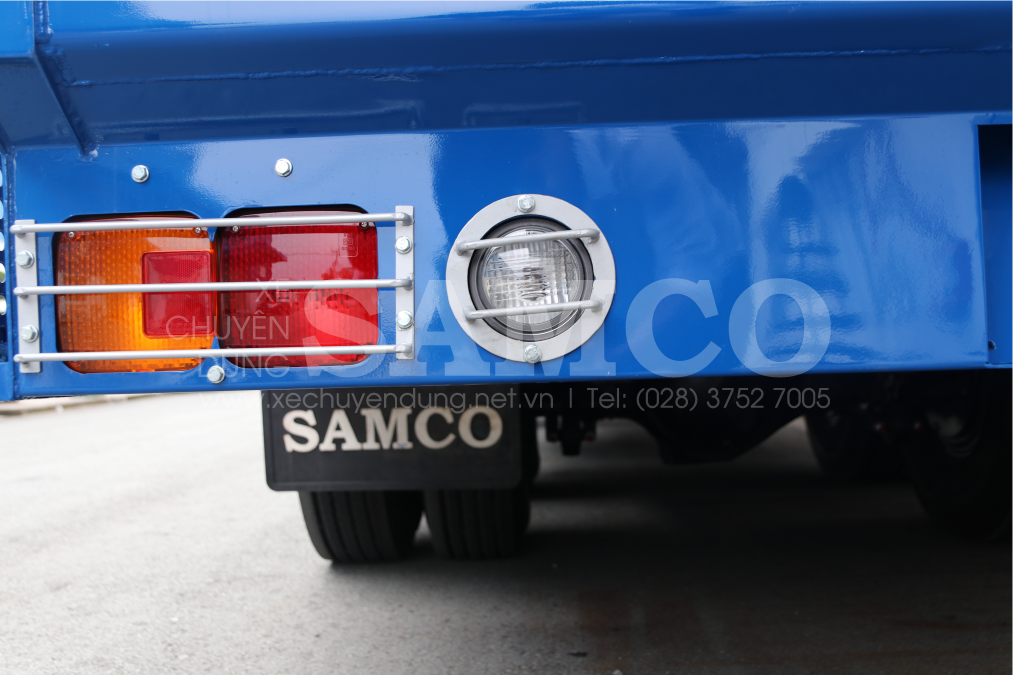

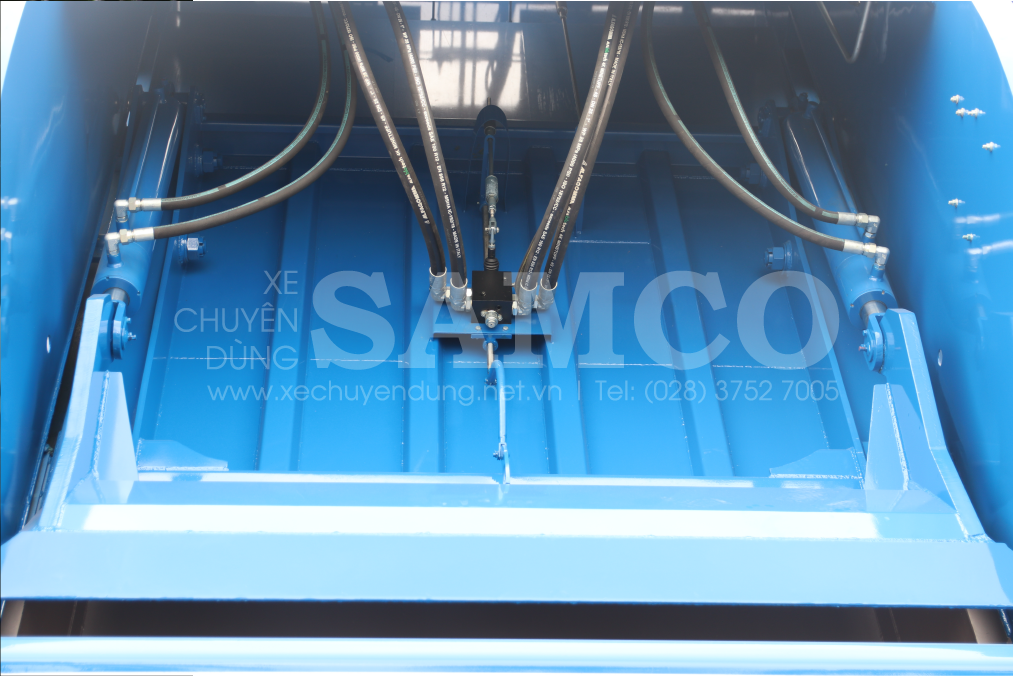

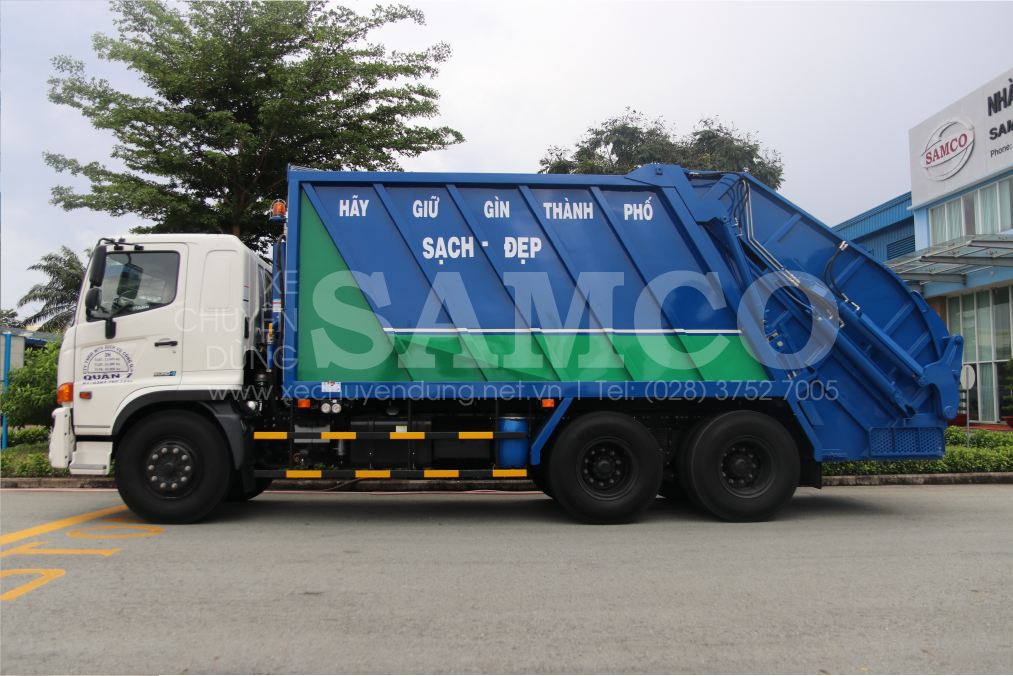

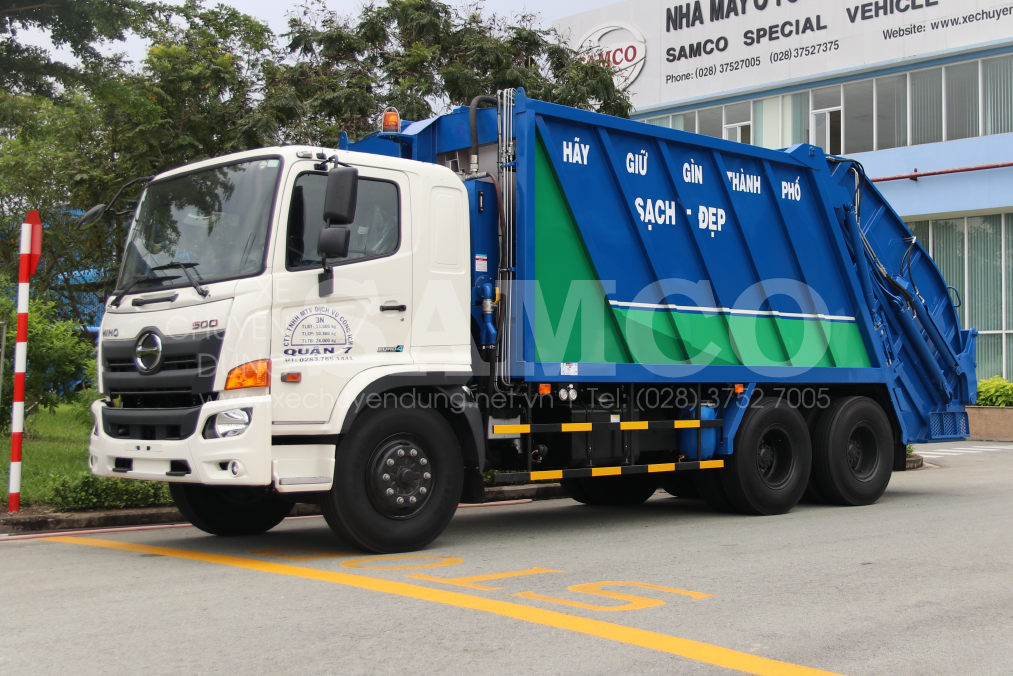

Detail images
