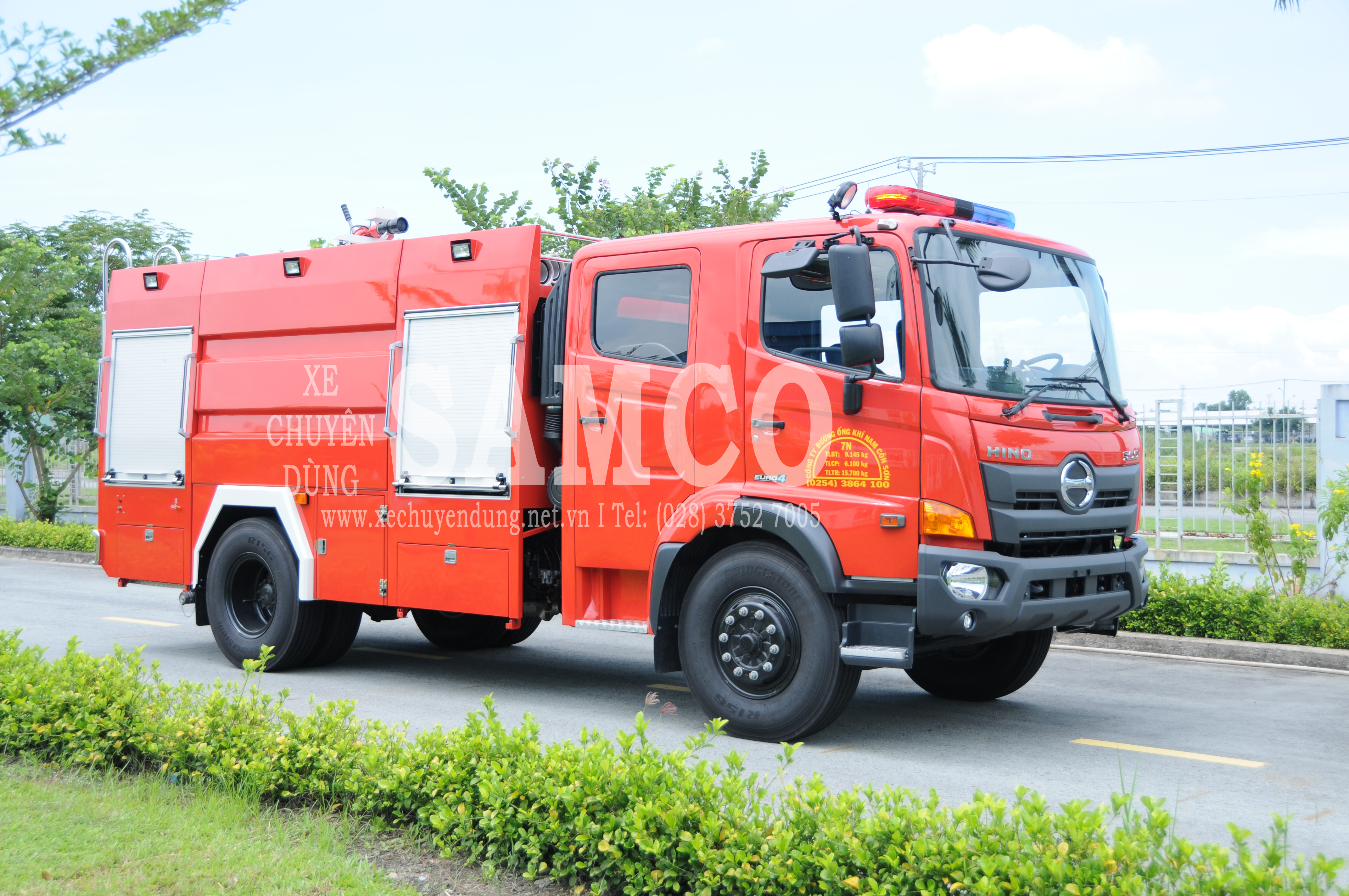

Fire Fighting Truck - CCFHI 060

Overview

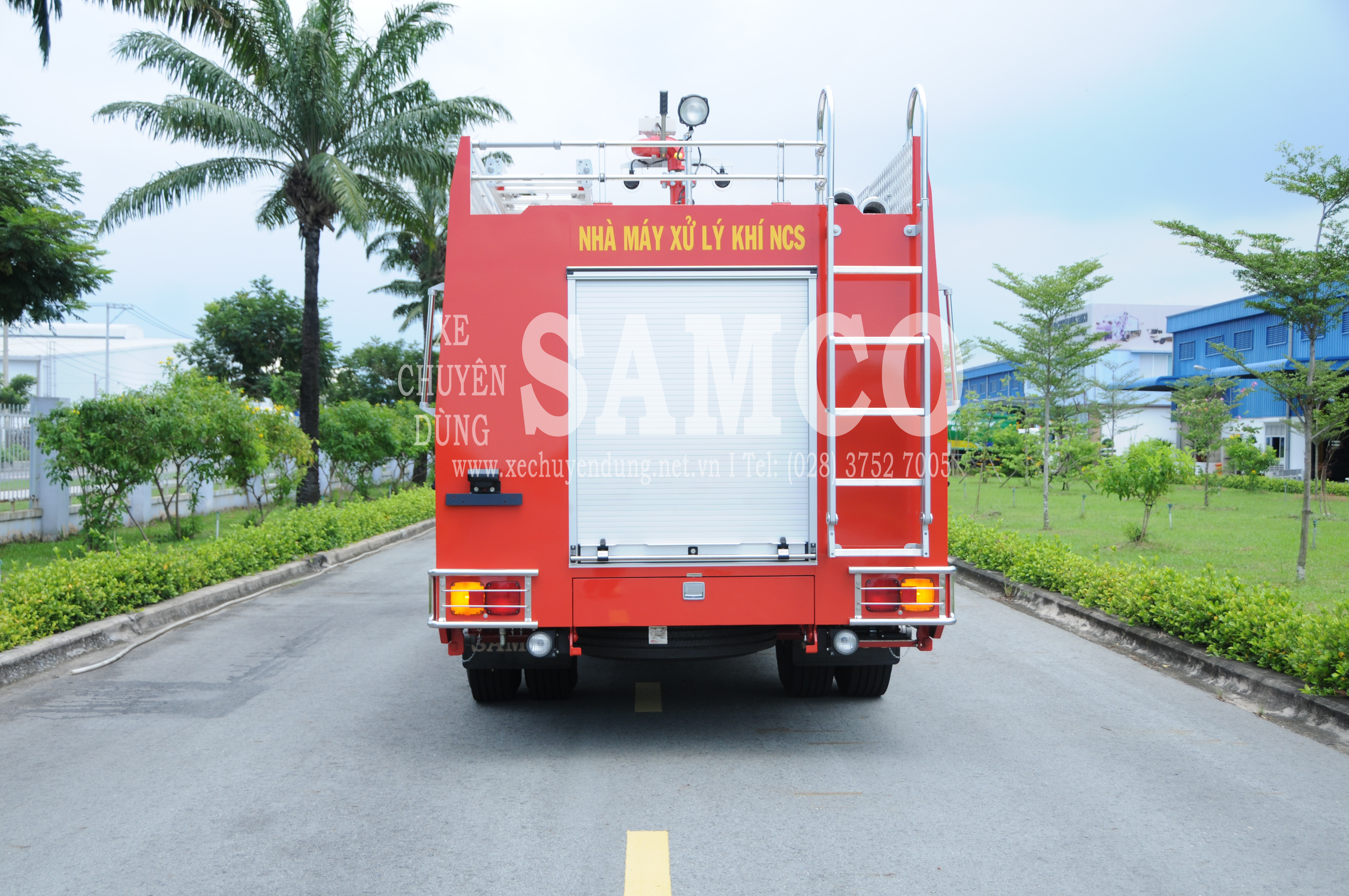

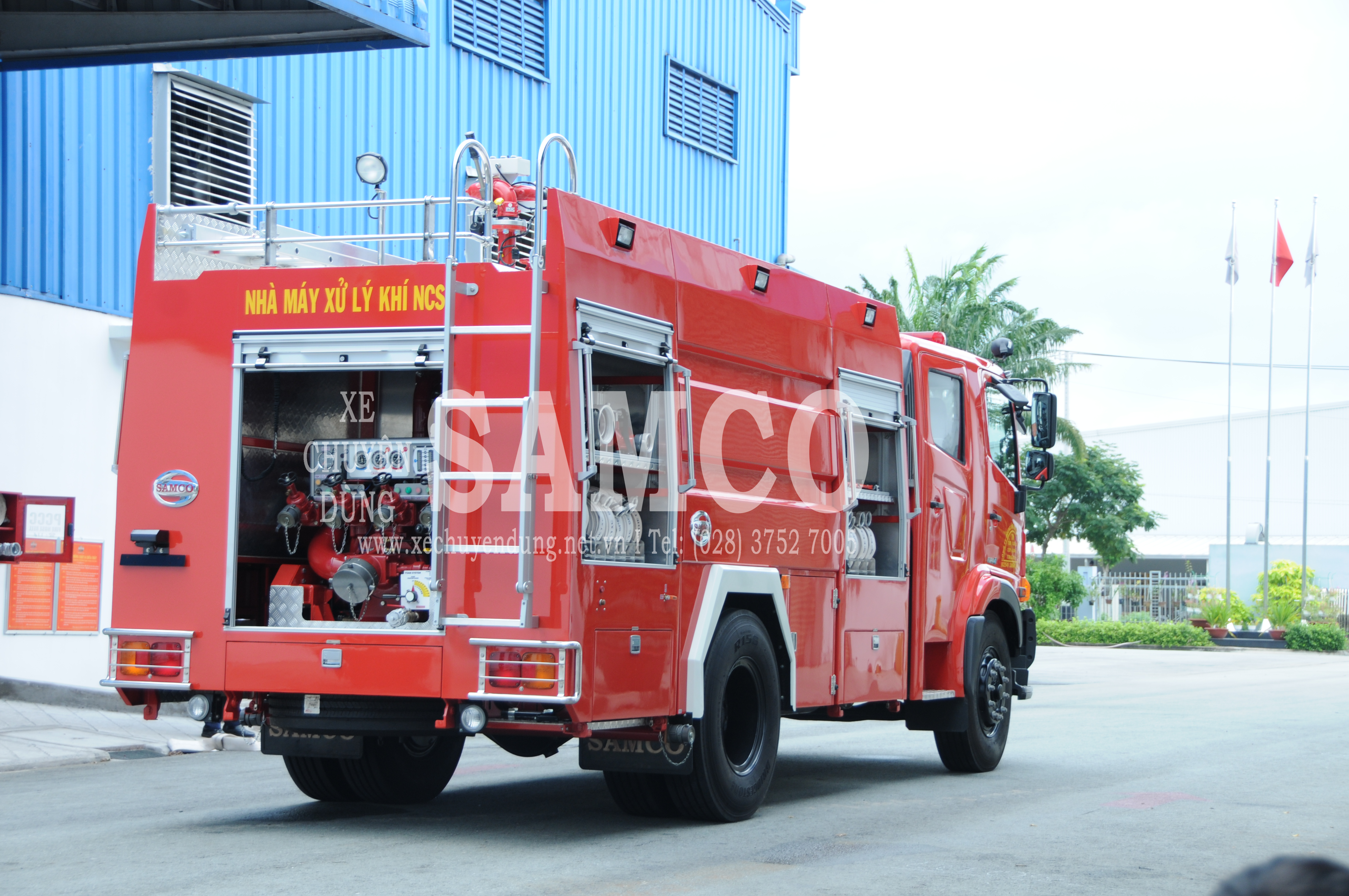

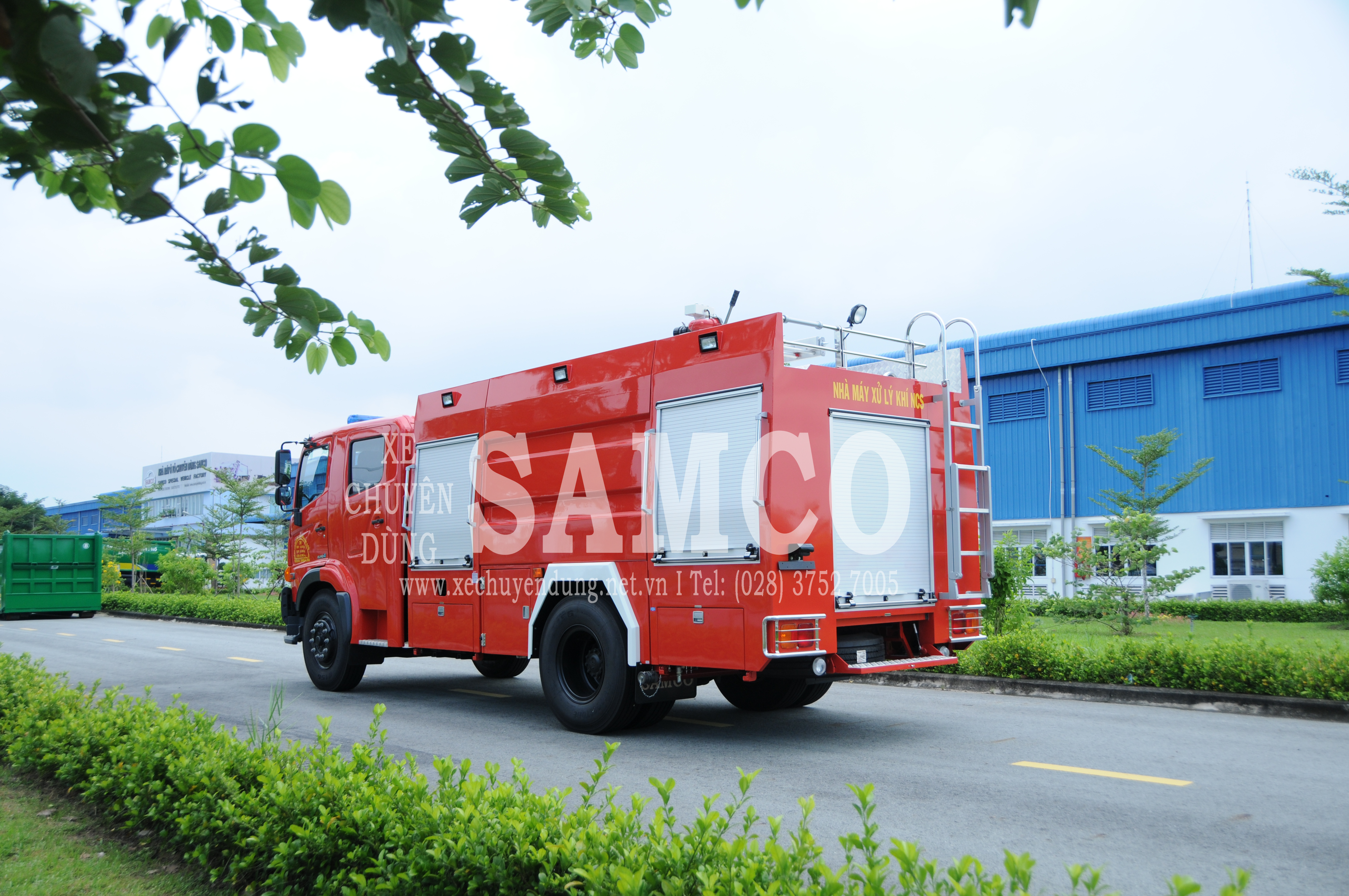

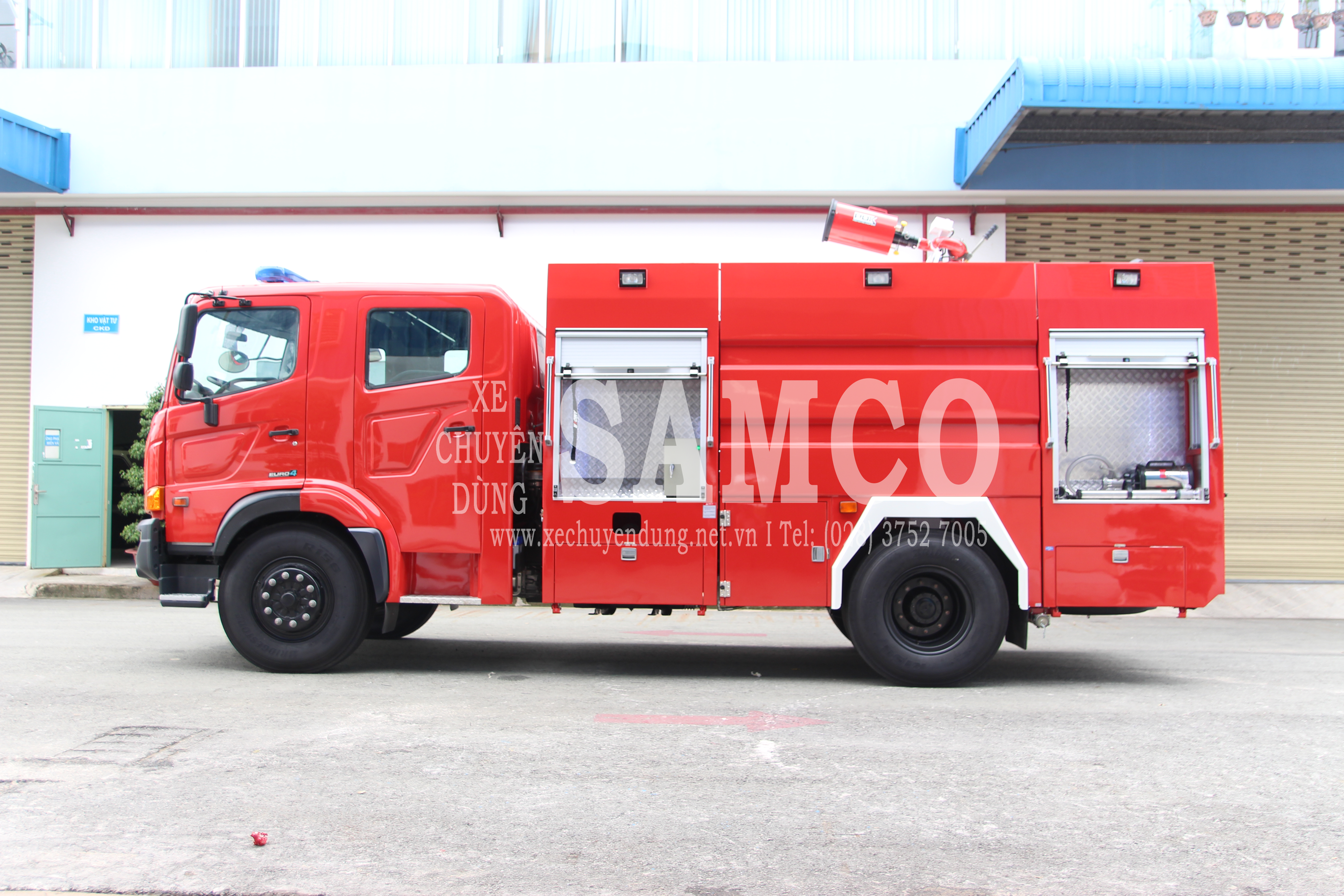

CCFHI 060 fire truck is an efficient vehicle using for fire fighting. Designed in the modern module technology and assembled specialized fire fighting system from first-class manufacturers in this industry such as Rosenbauer (Austria), but the price is only half as imported one.

It's equipped with water and foam fire fighting system.
  • Cab chasiss: Hino FG8JJ7A
  • Cab: Double Cab
  • Payload: 6,000 kg
  • Gross vehicle weight: 16,000 kg
  • Water tank volume: 5.0 m³
  • Foam tank volume: 1.0 m³;
  • Fire pump: Rosenbauer (Austria)
  • Standard Emission: EURO 4
Brochure download
<p>fire fighting truck, fire pump, Rosenbauer, Autria</p>

Technical Specifications

Cab chassis Hino FG8JJ7A
Engine J08E-WE
Max output 191 / 2,500 kW/rpm
Displacement 7,684 cc
Overall Dimensions (L x W x H) 7,800 x 2,500 x 3,500 mm
Wheelbase 4,330 mm
G.V.W 16,000 kg
Payload 6,000 kg
Kerb Mass 9,545 kg
Cabin 07 seats (Double Cab)

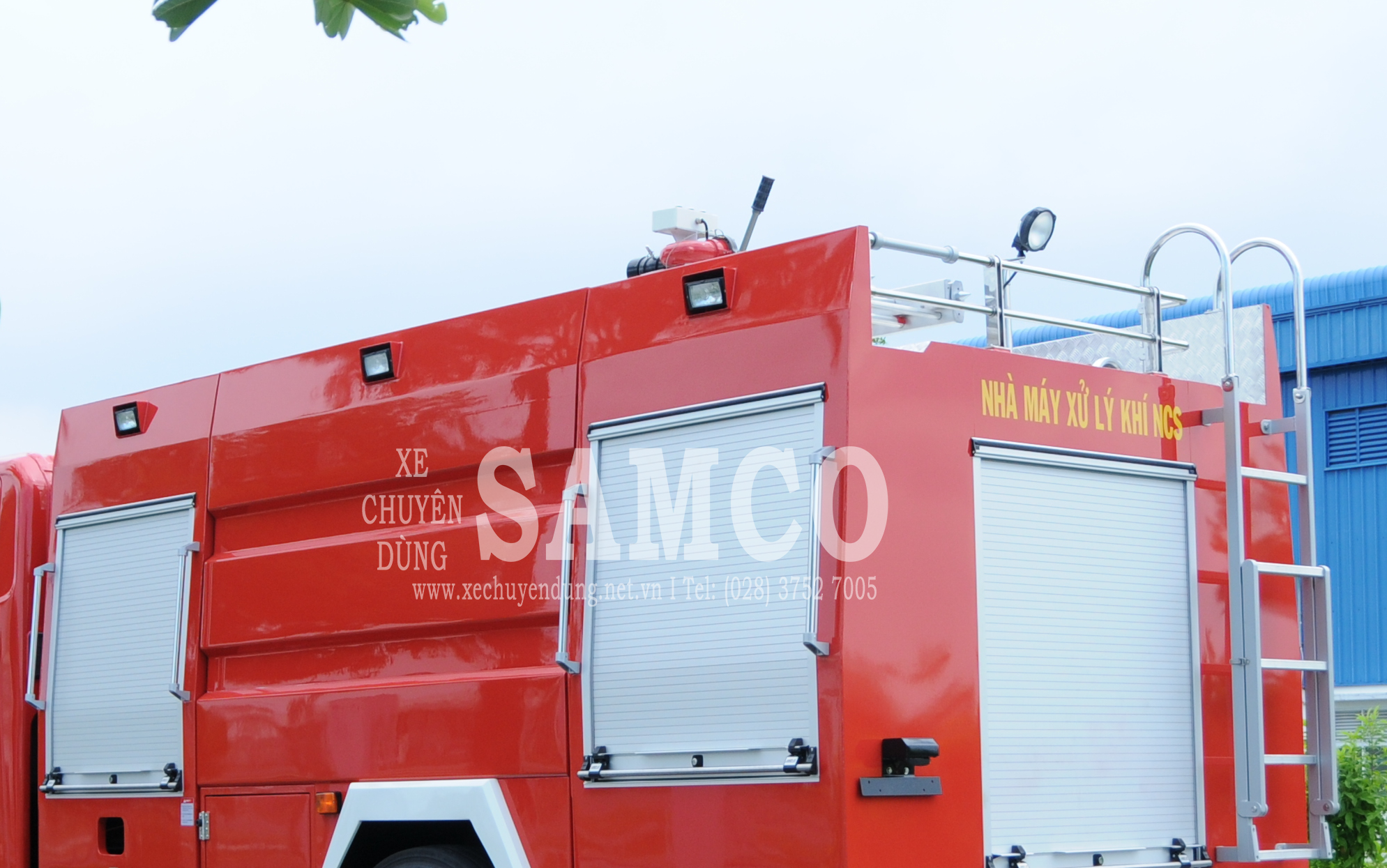

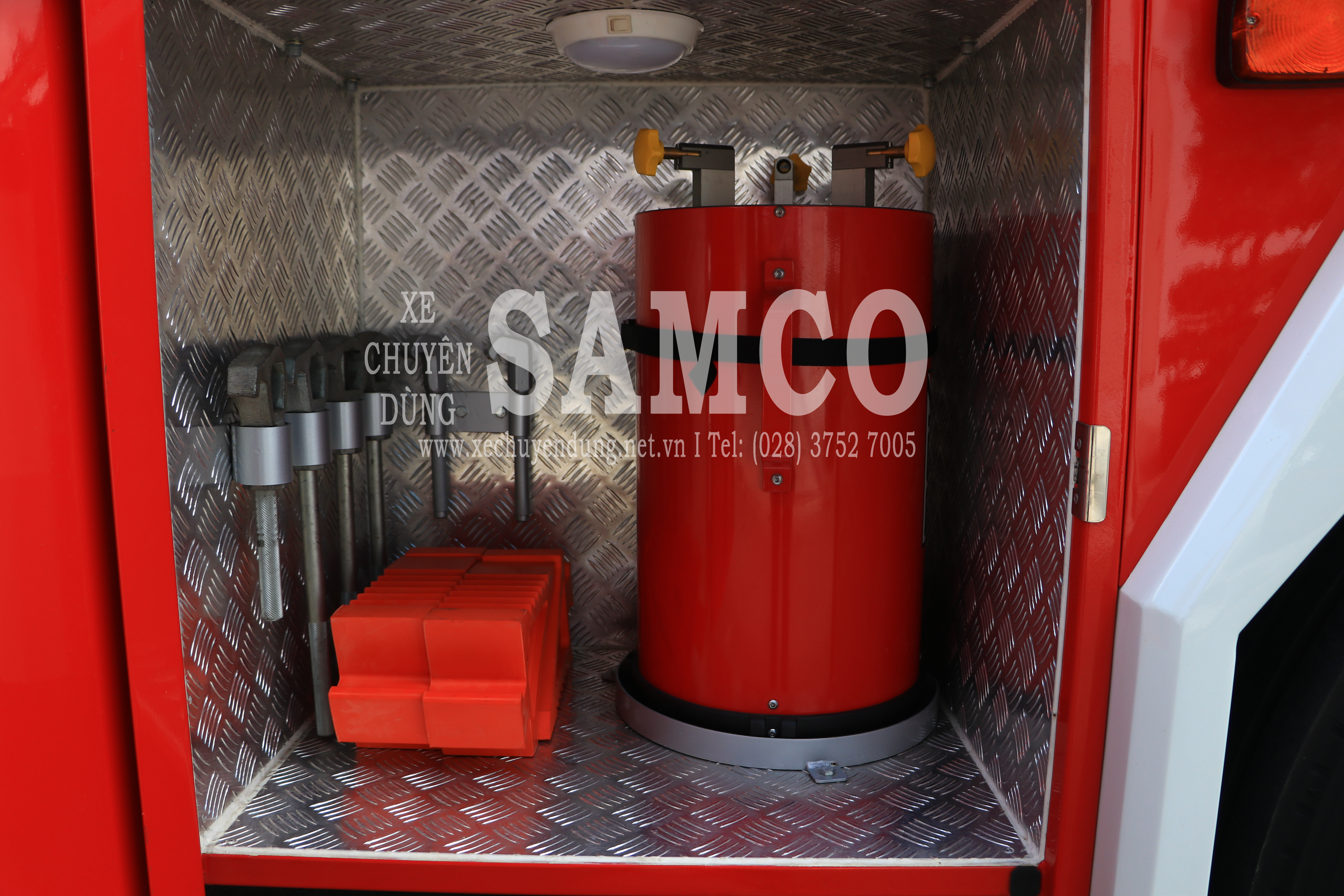

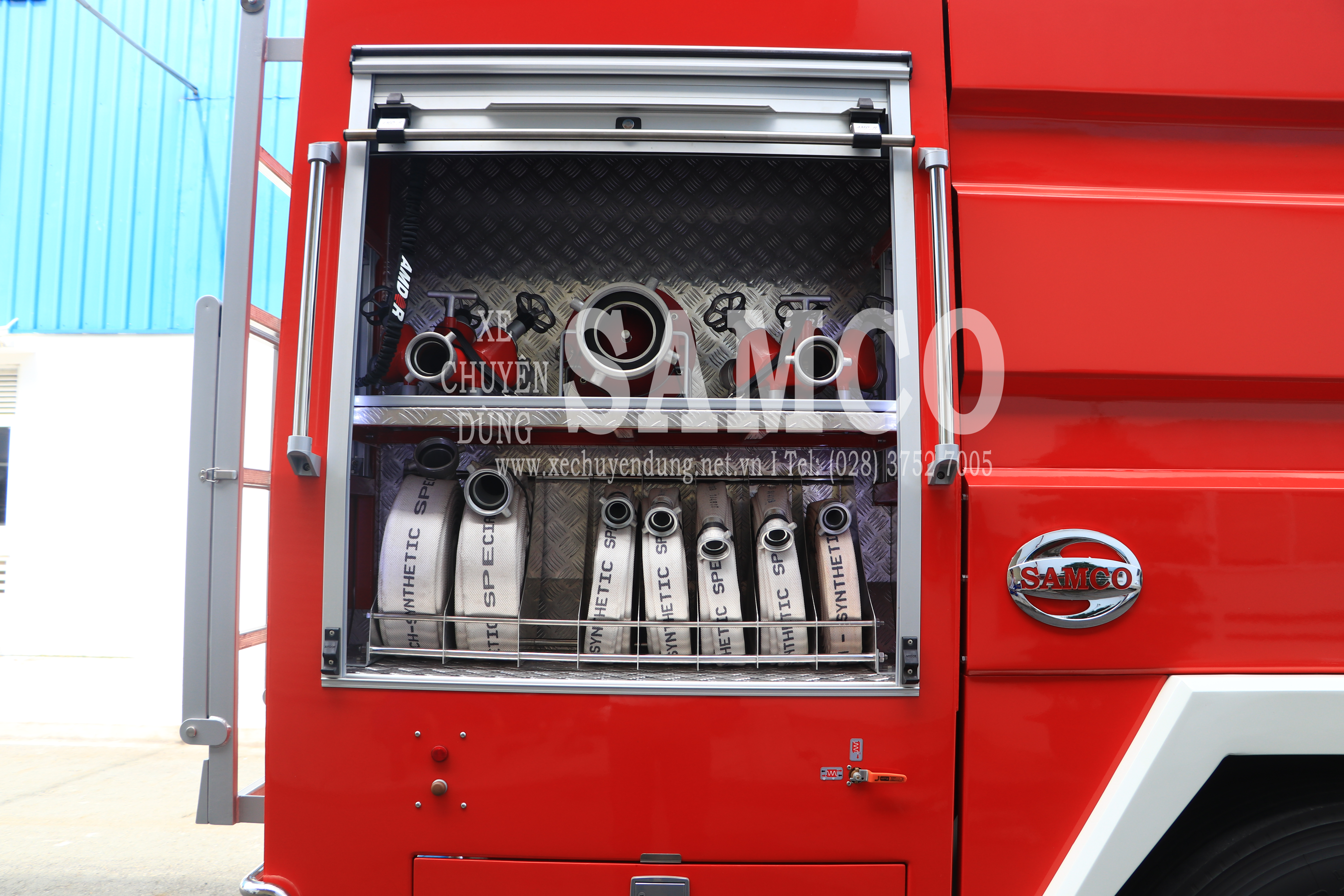

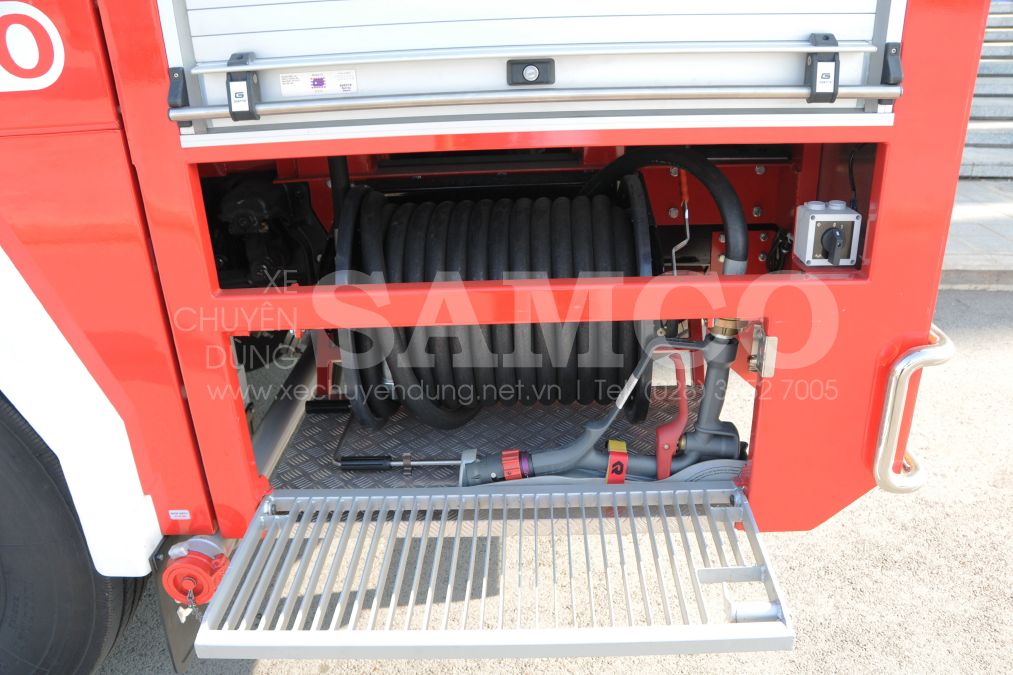

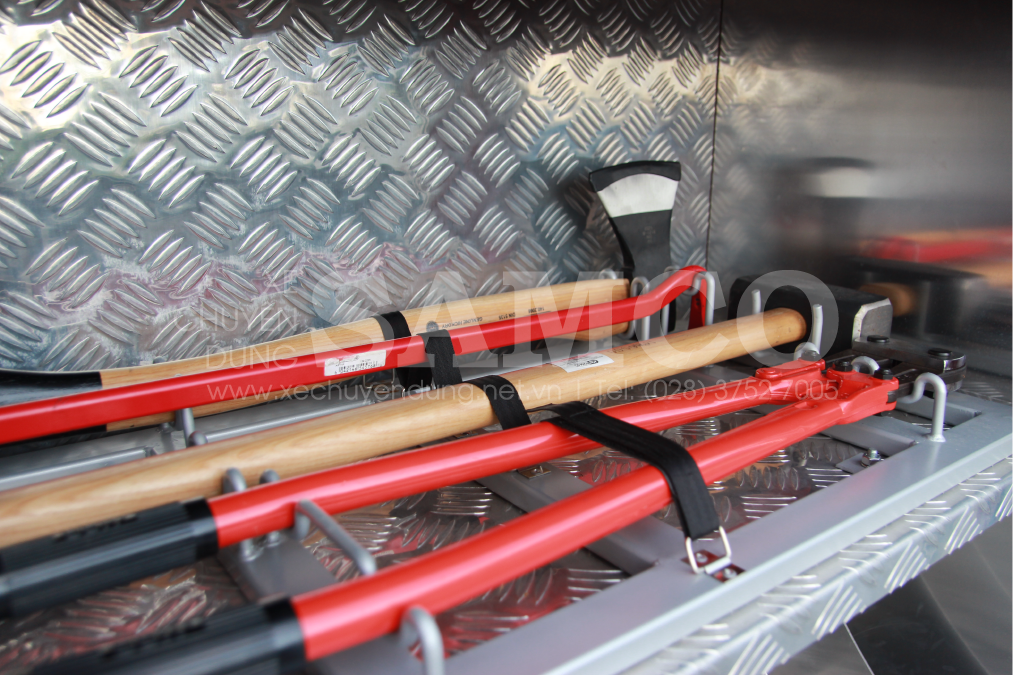

Accessories and fire pump compartment Made of stainless steel or atmospheric corrosion resistant steels SPA-H (Japan).
Water tank volume 5.0 m³
Foam tank volume 1.0 m³
Specialized system and fire fighting equipment Import, brand new

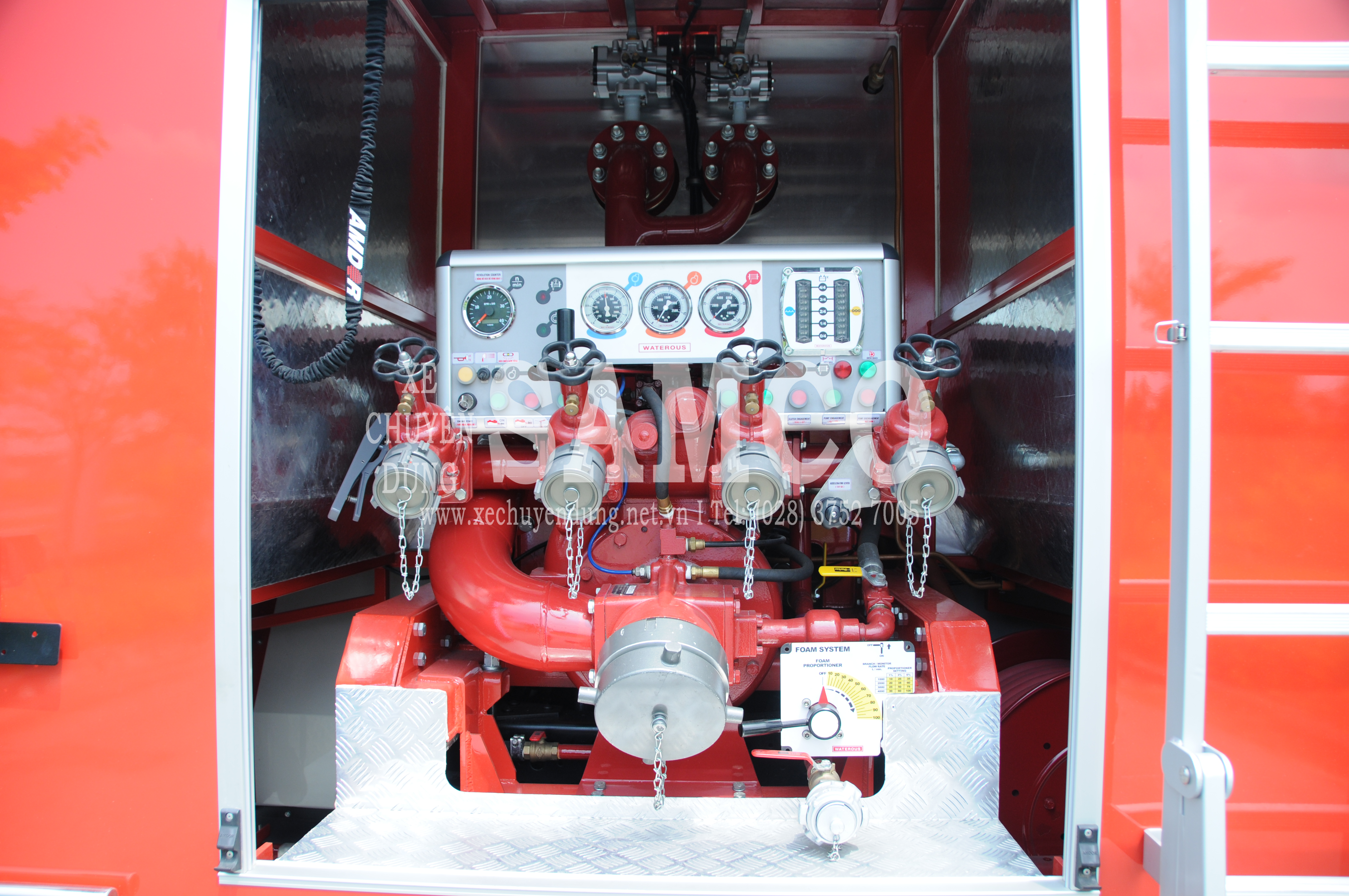

Fire pump Single-stage centrifugal pump with vacuum aspiration pump

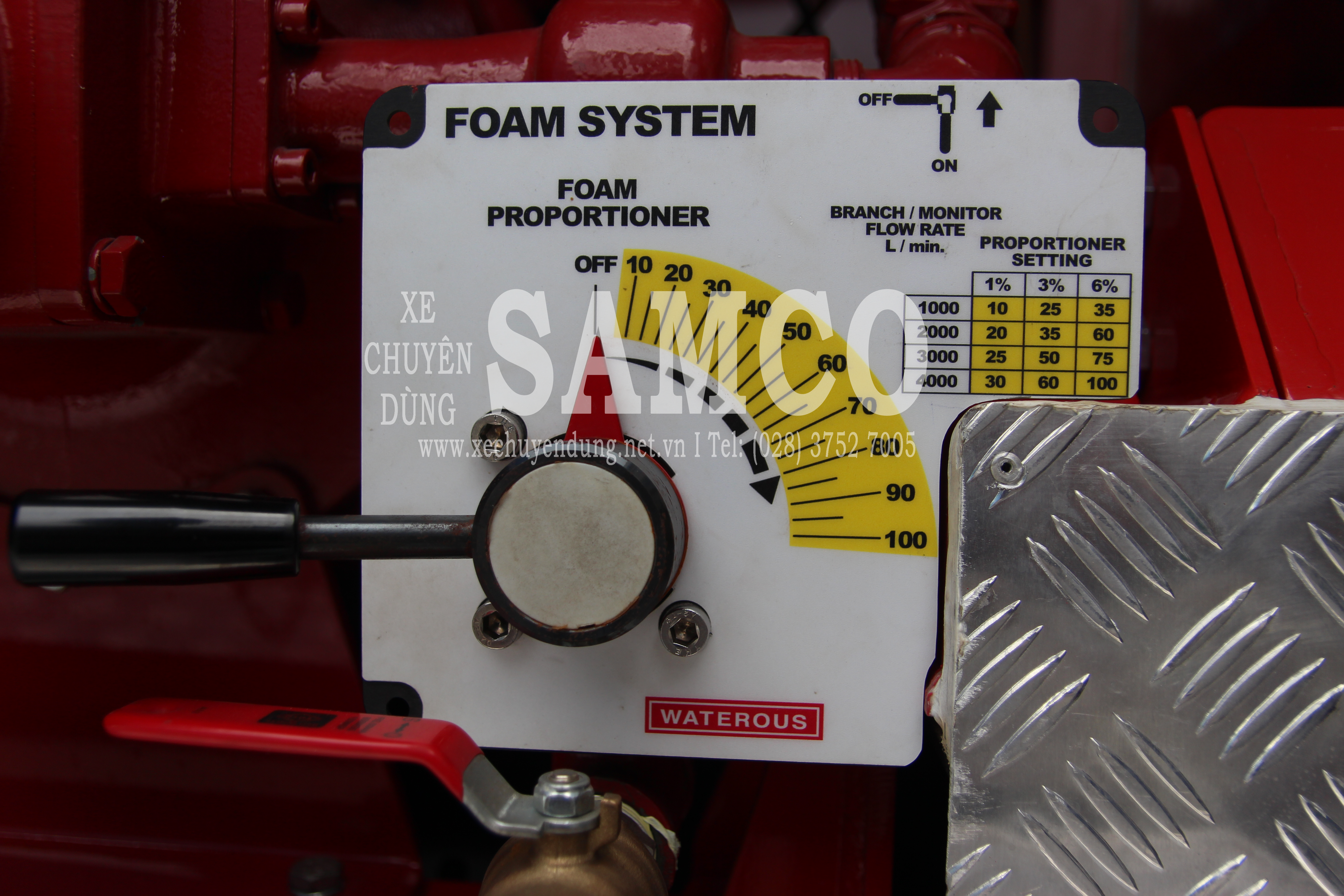

Foam mixer Fix mix – Intergrated with firefighting pump

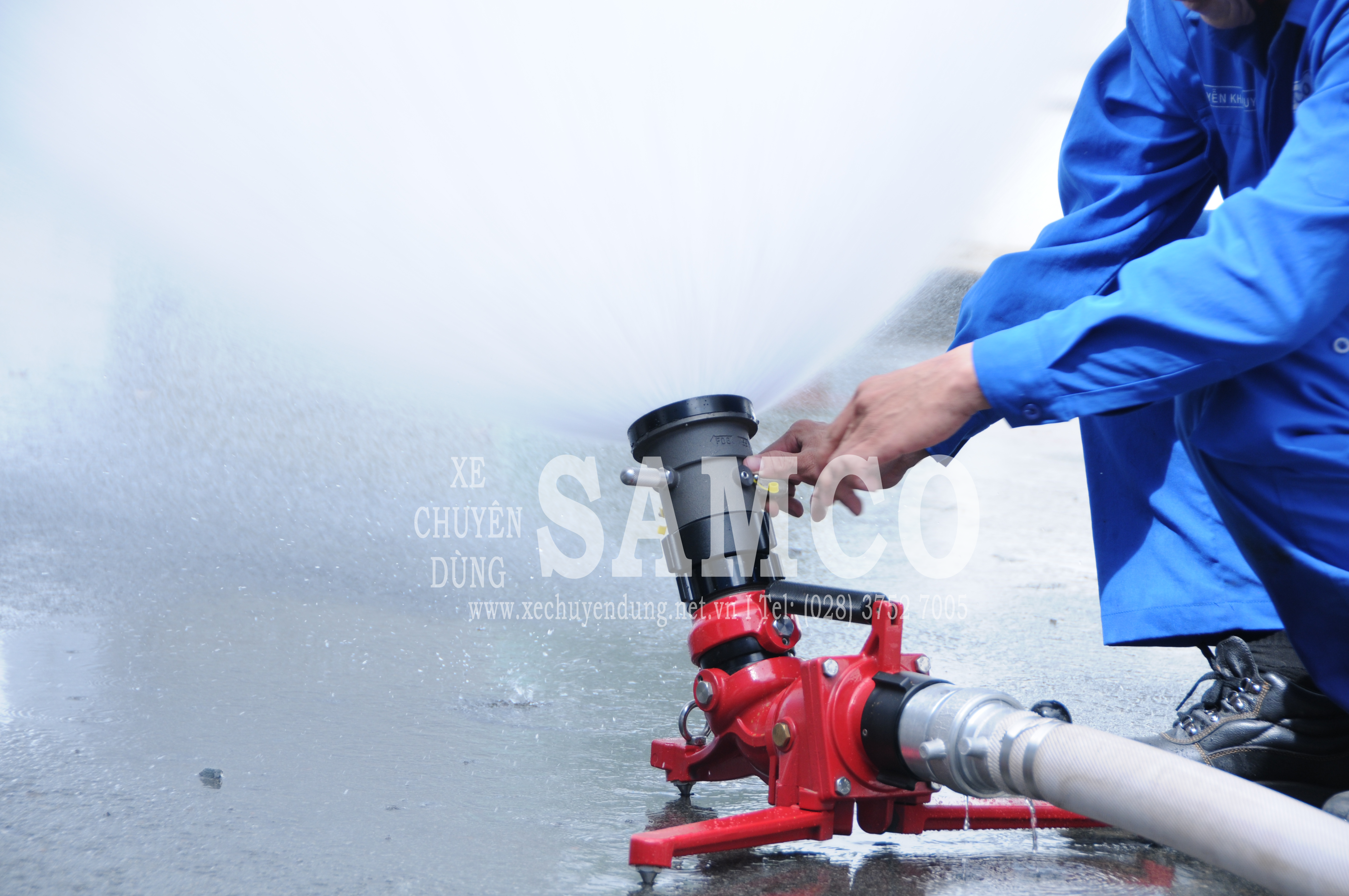

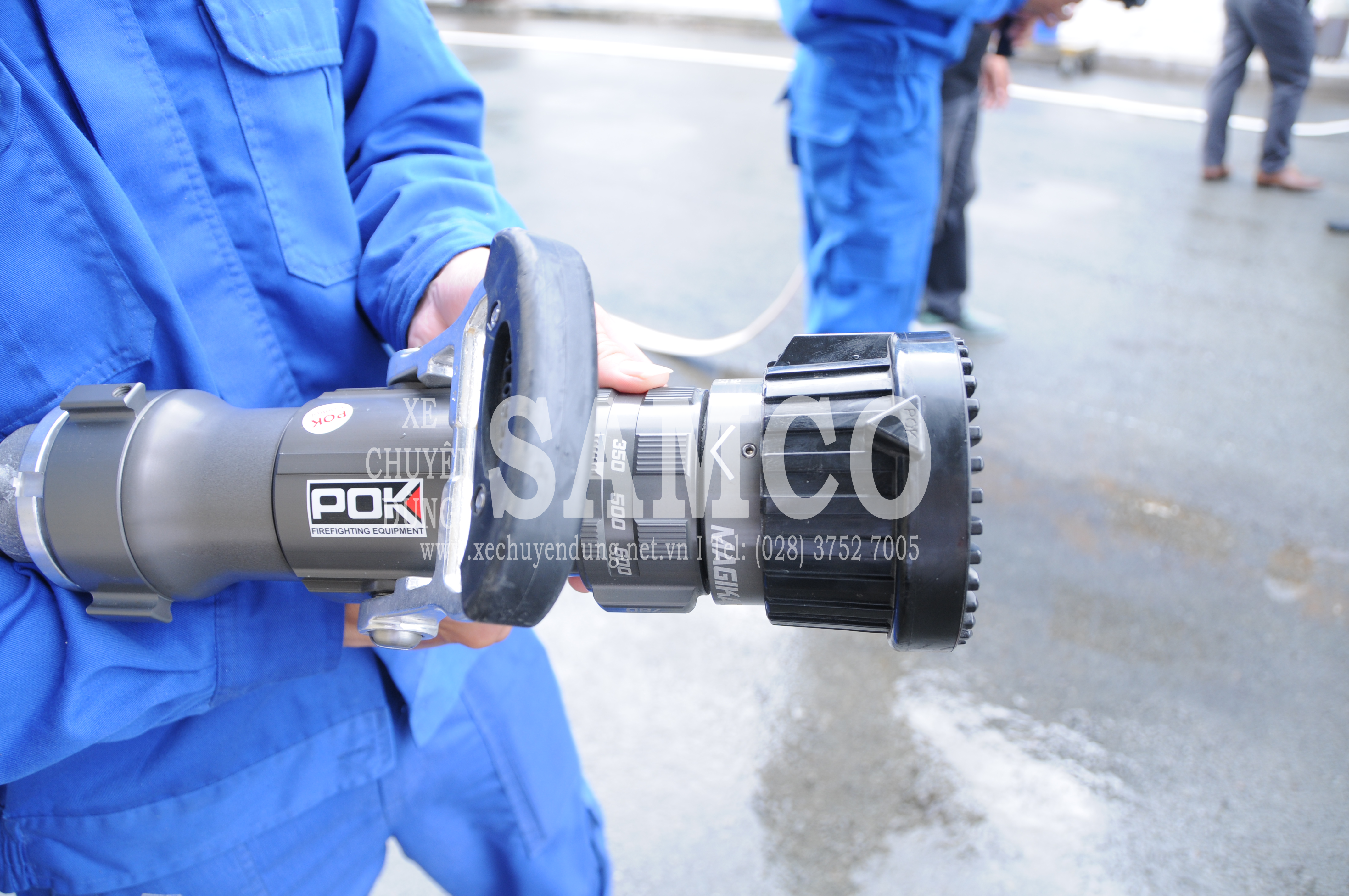

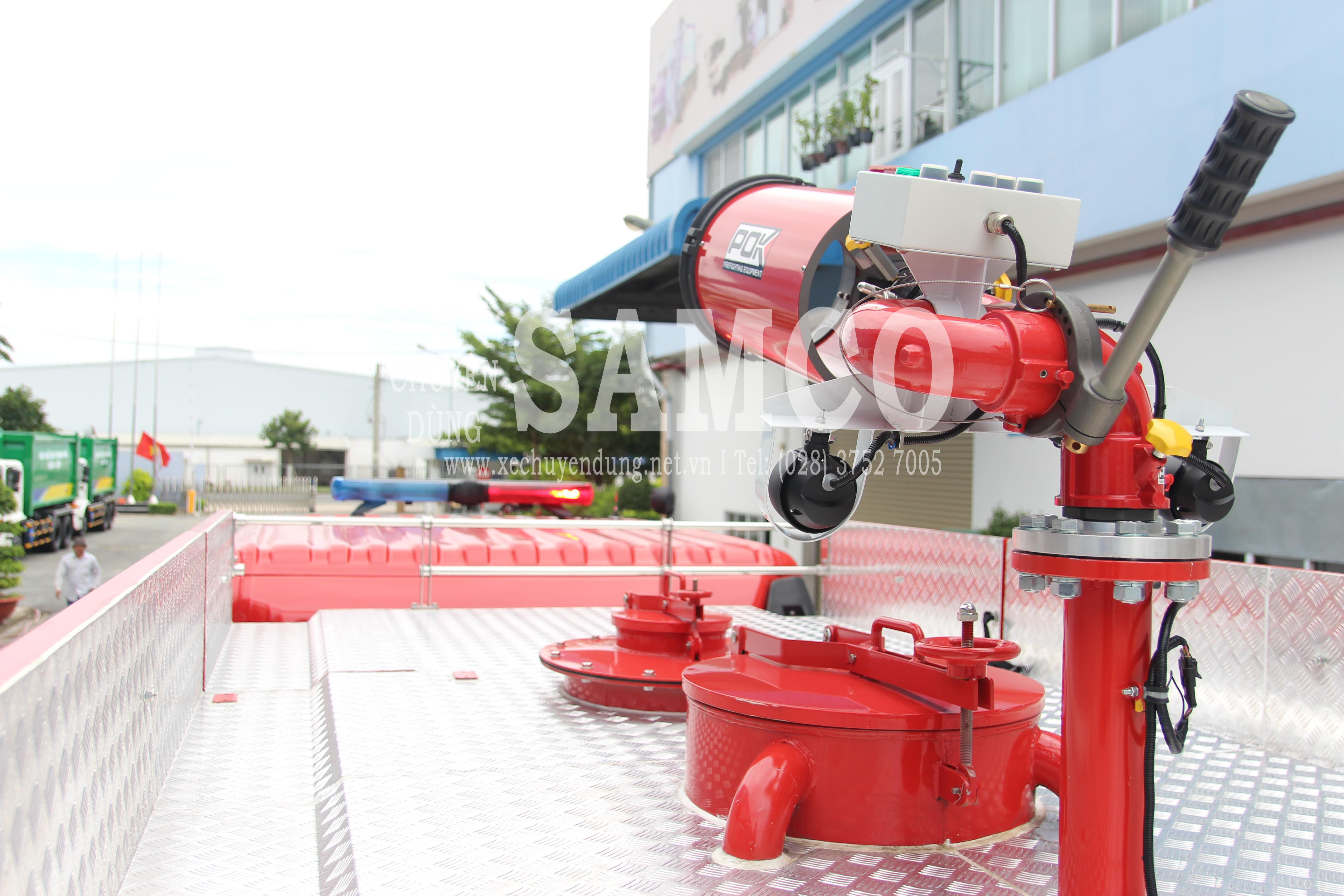

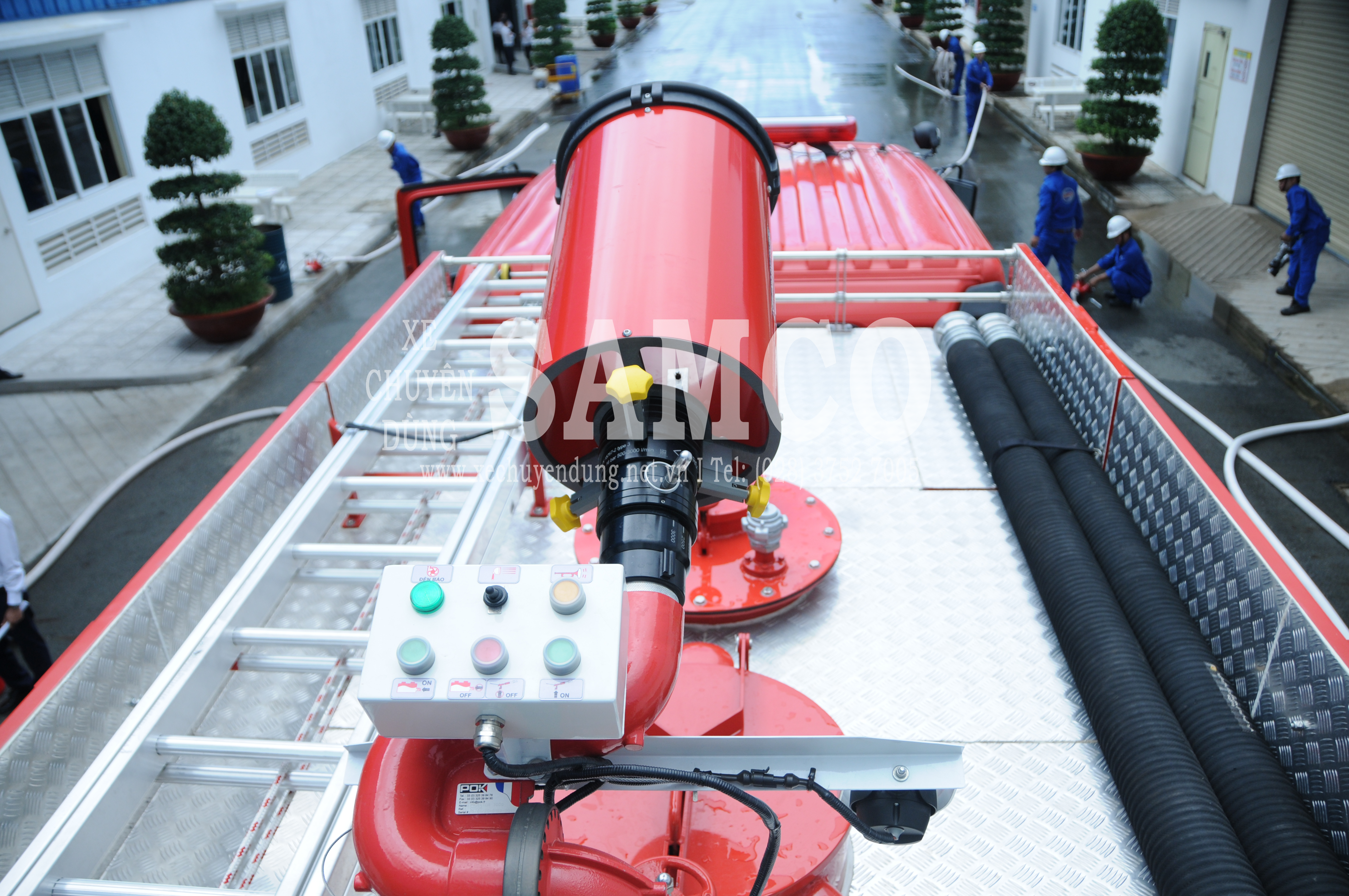

Firefighting spraying gun
- Mult ifunctional: concentrate spray, spread spray, water/foam spray.
- Can adjust flow rate or convert spraying type while working.
- Operate left – right, up – down unlimited

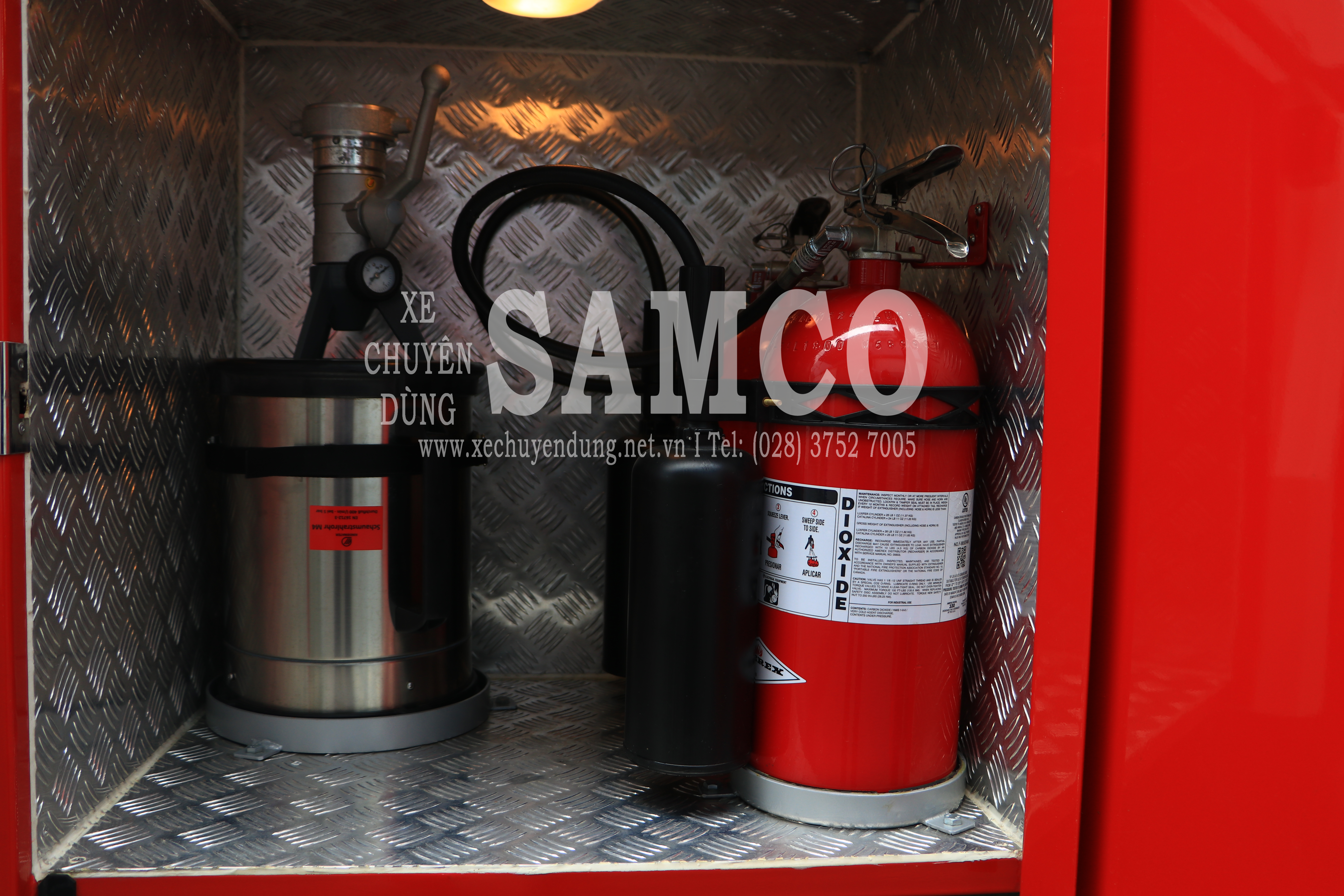

Options - Chemical fire extinguisher
- Quick-response kit
- Portable fire pump
Operation method - Electric - compressed air operated

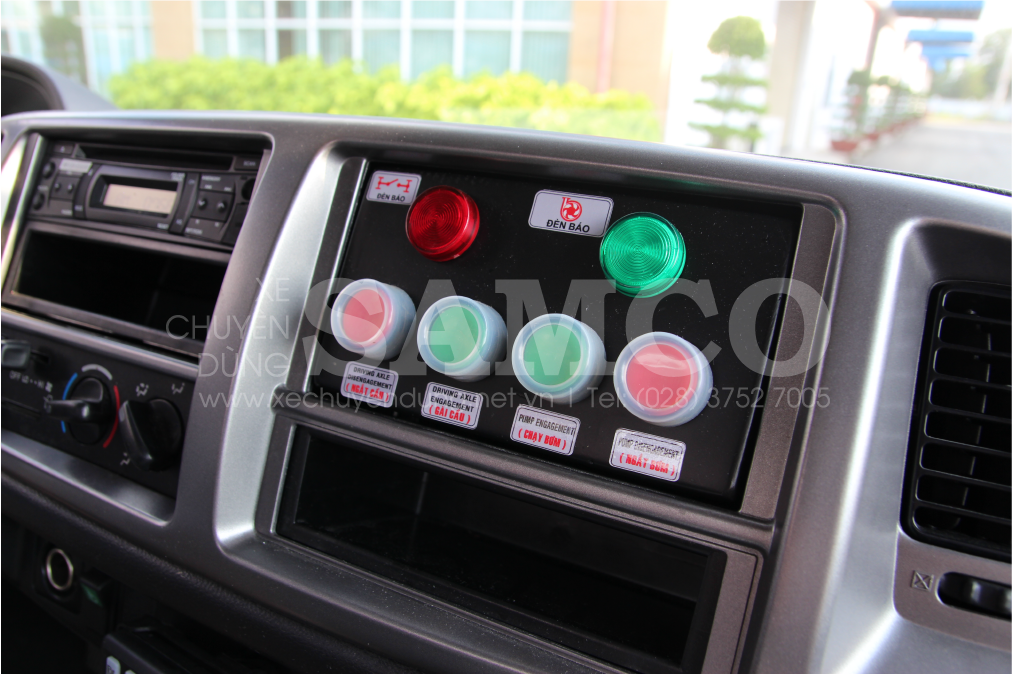

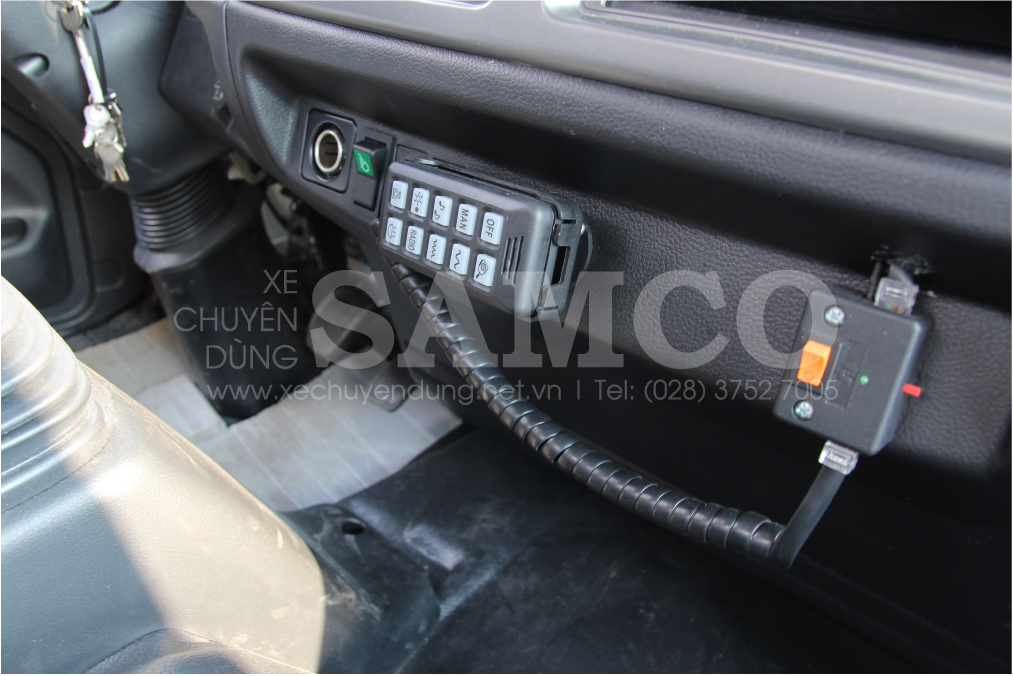

- Operating control is placed in cab and pump compartment
Color Red
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
