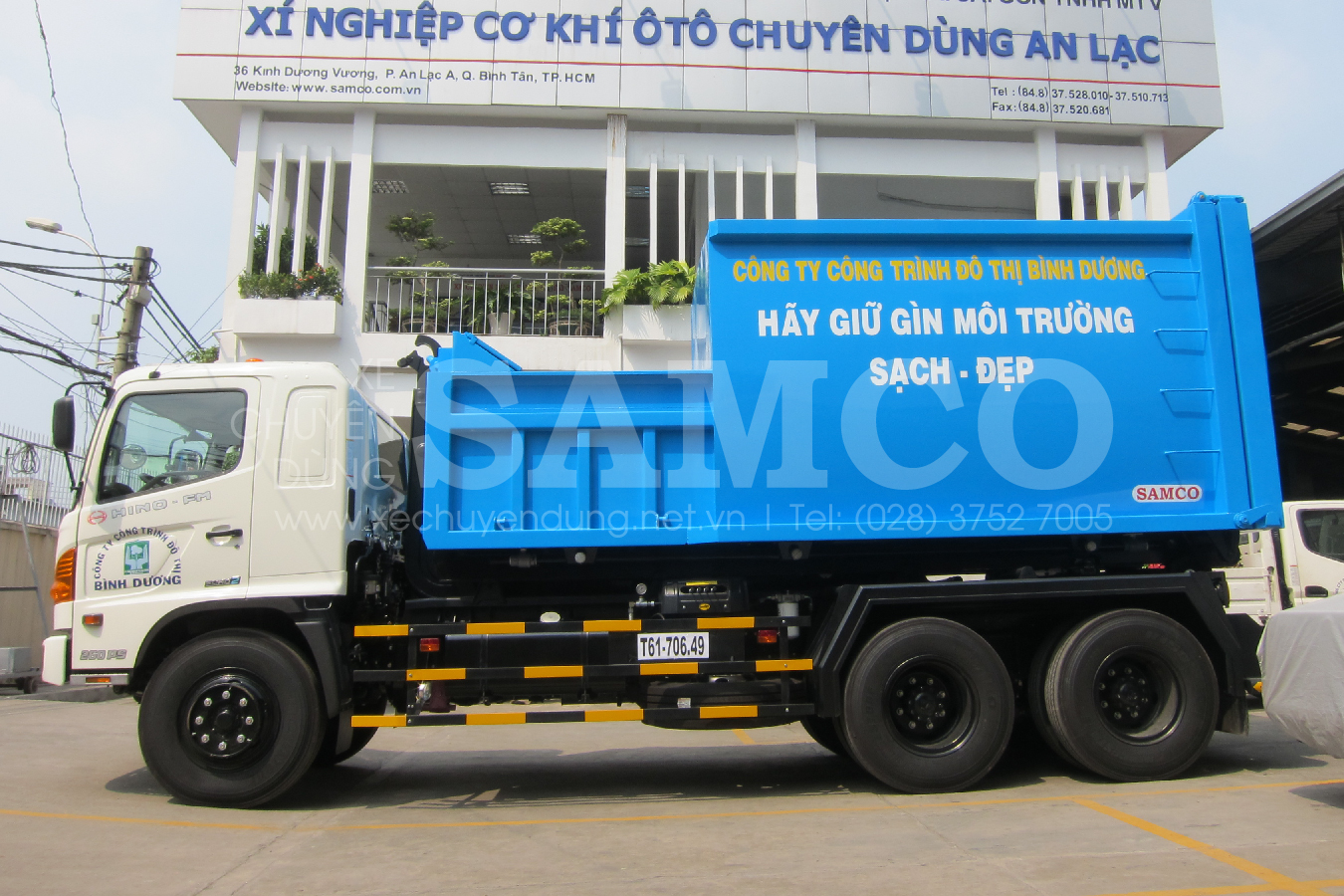

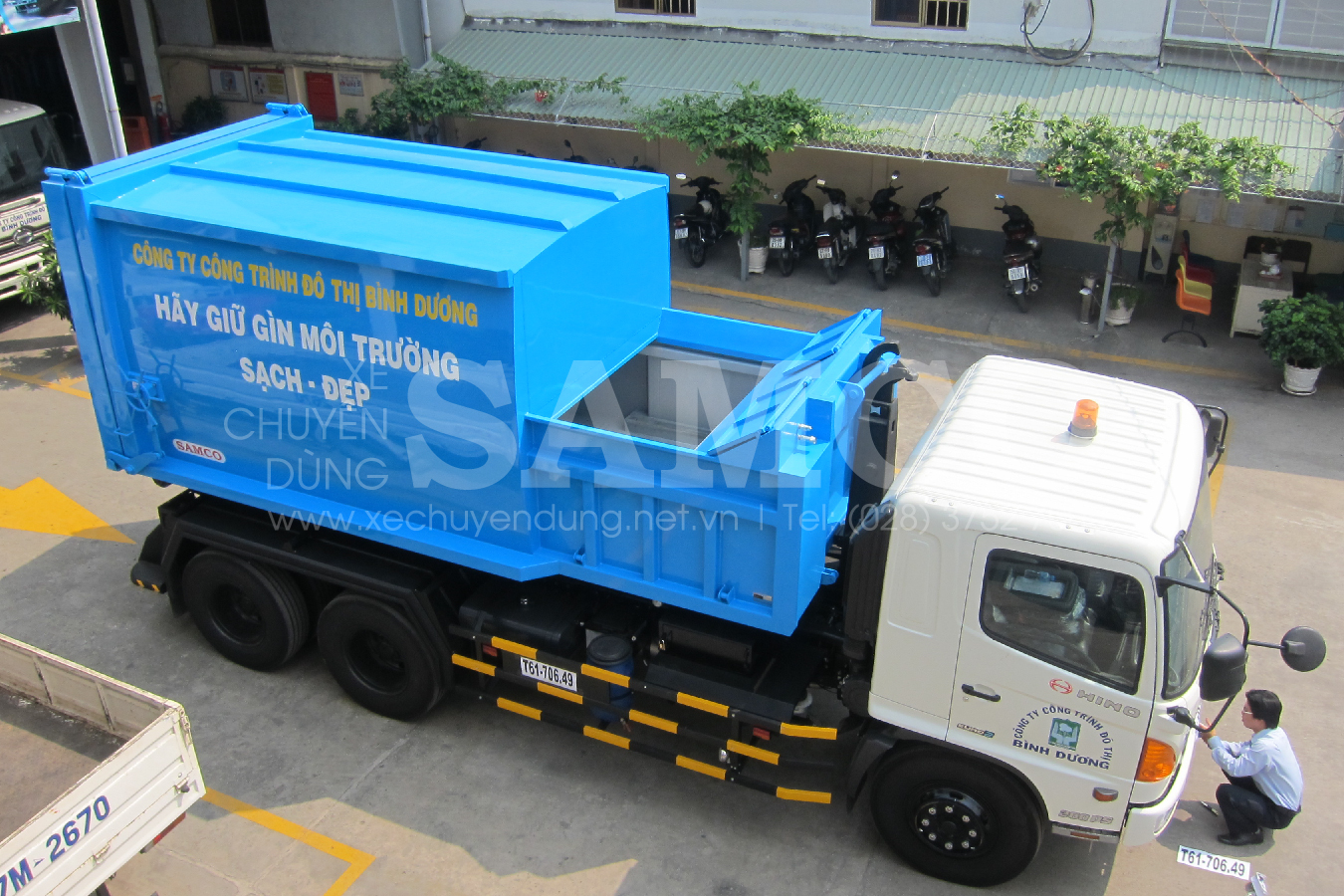

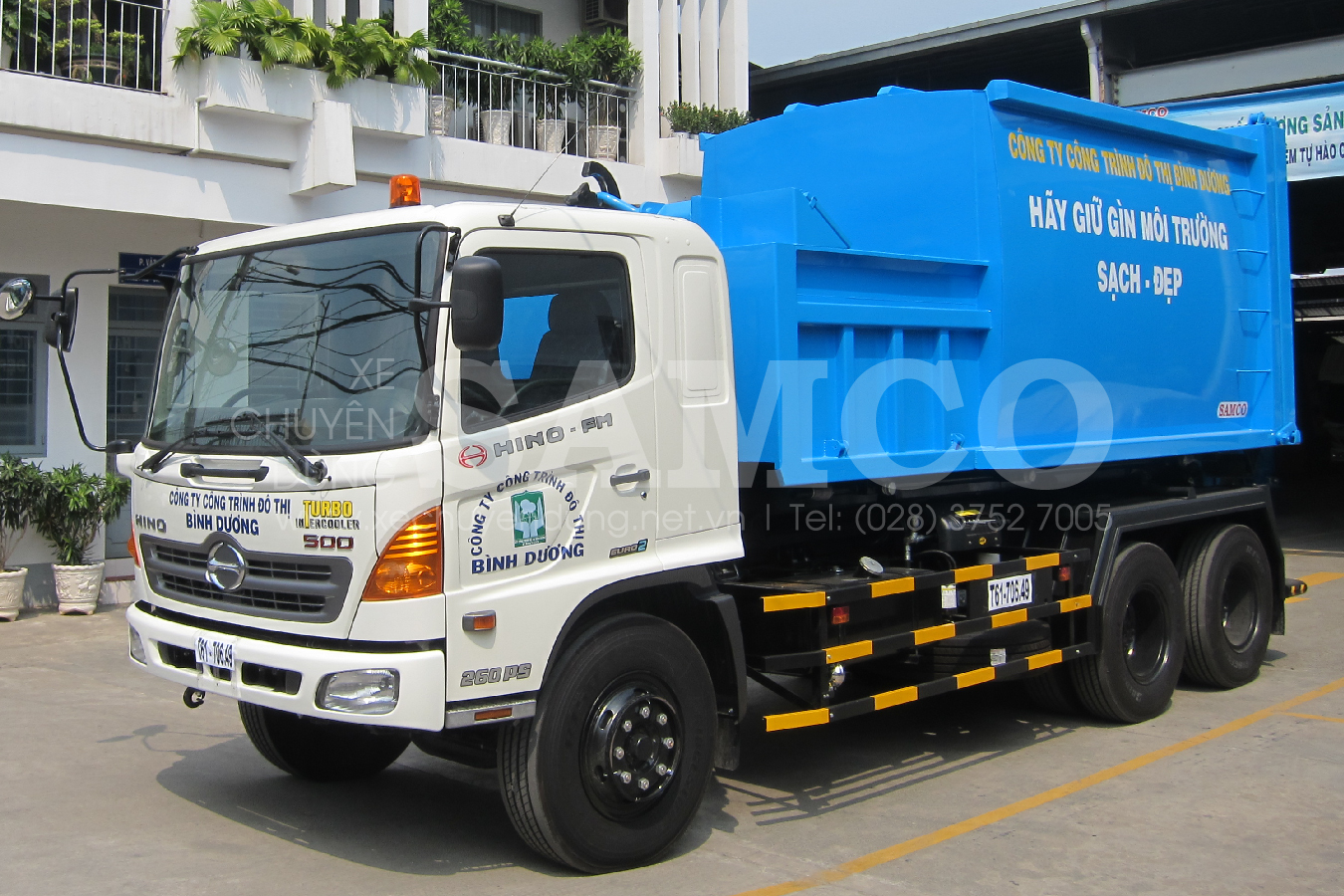

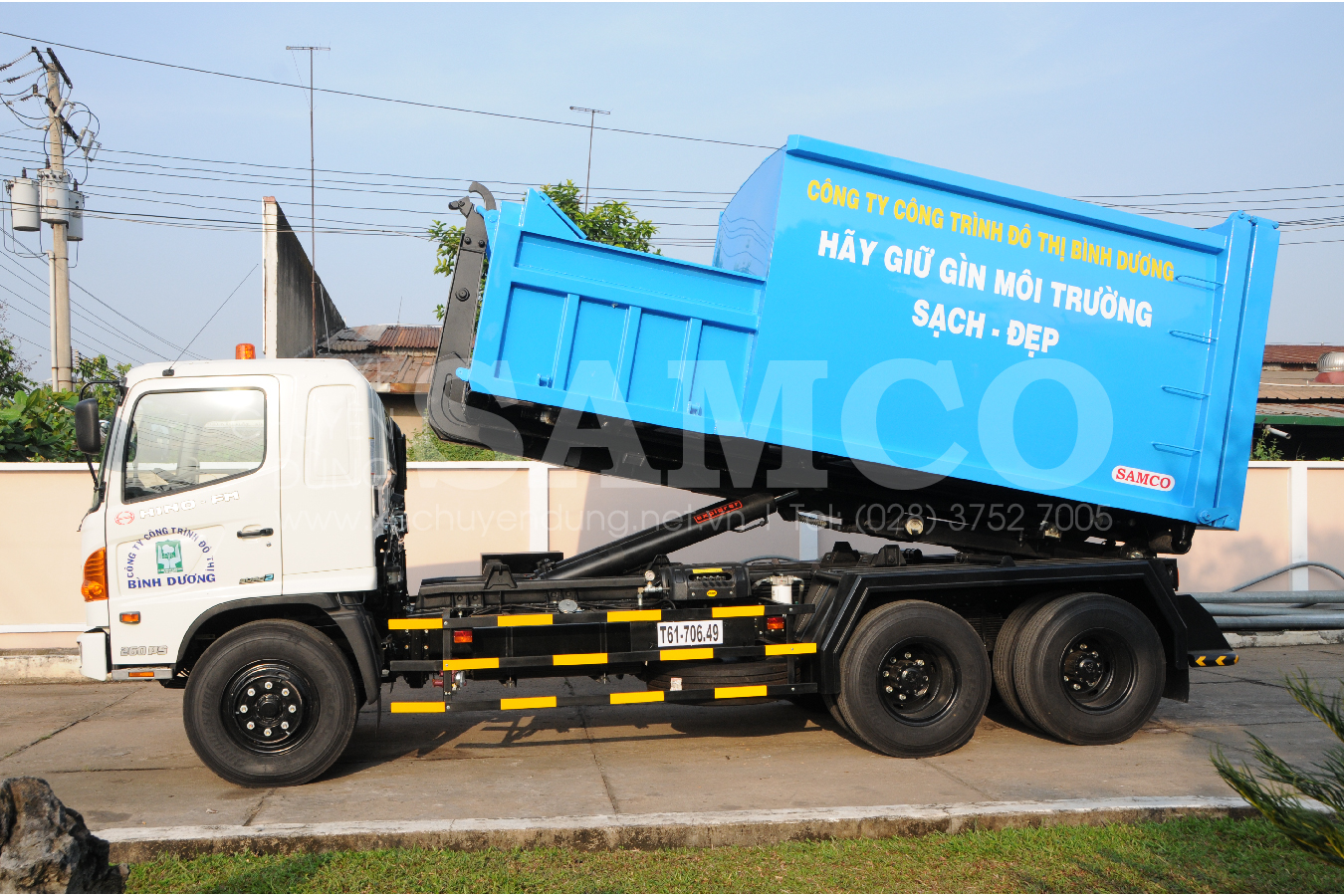

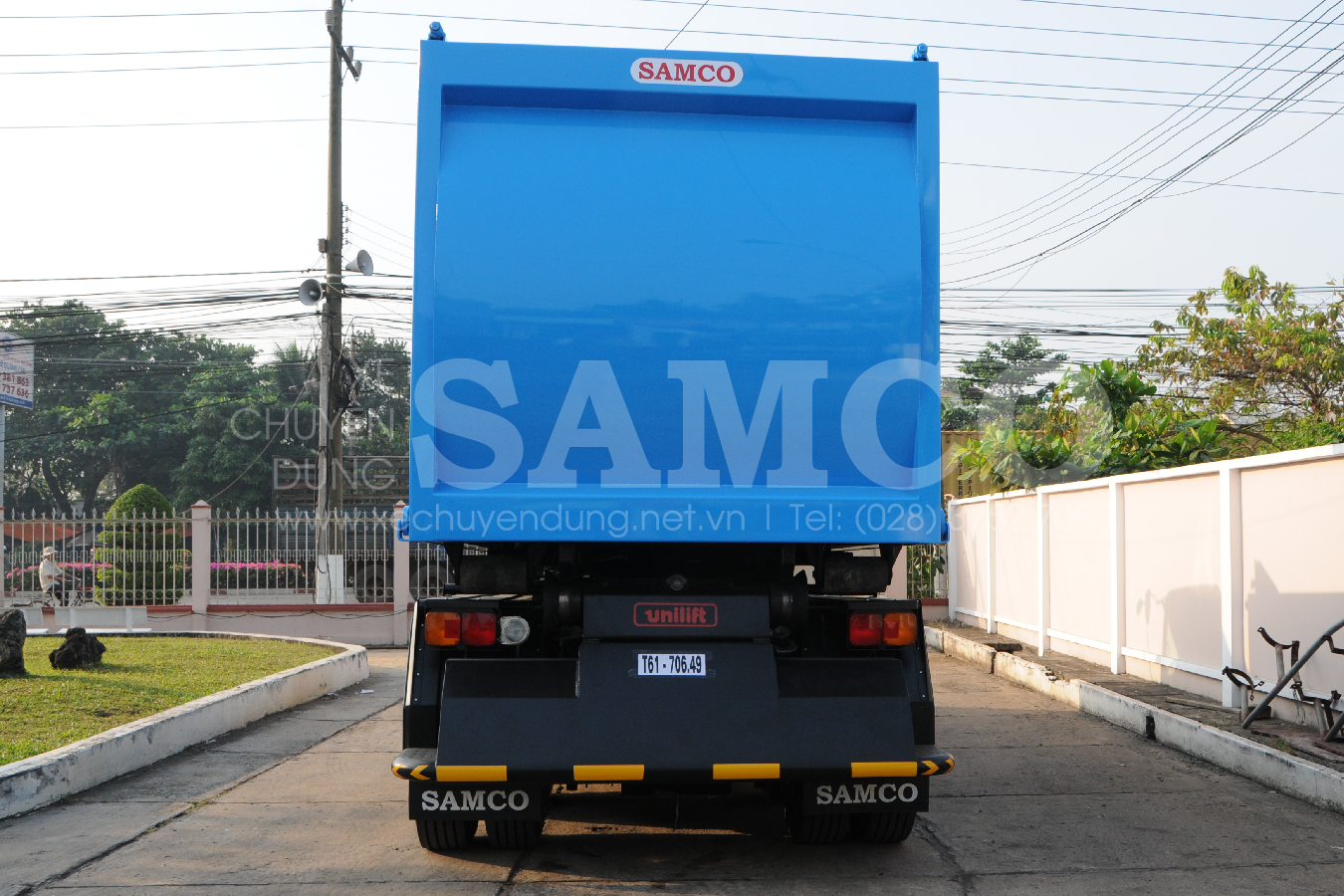

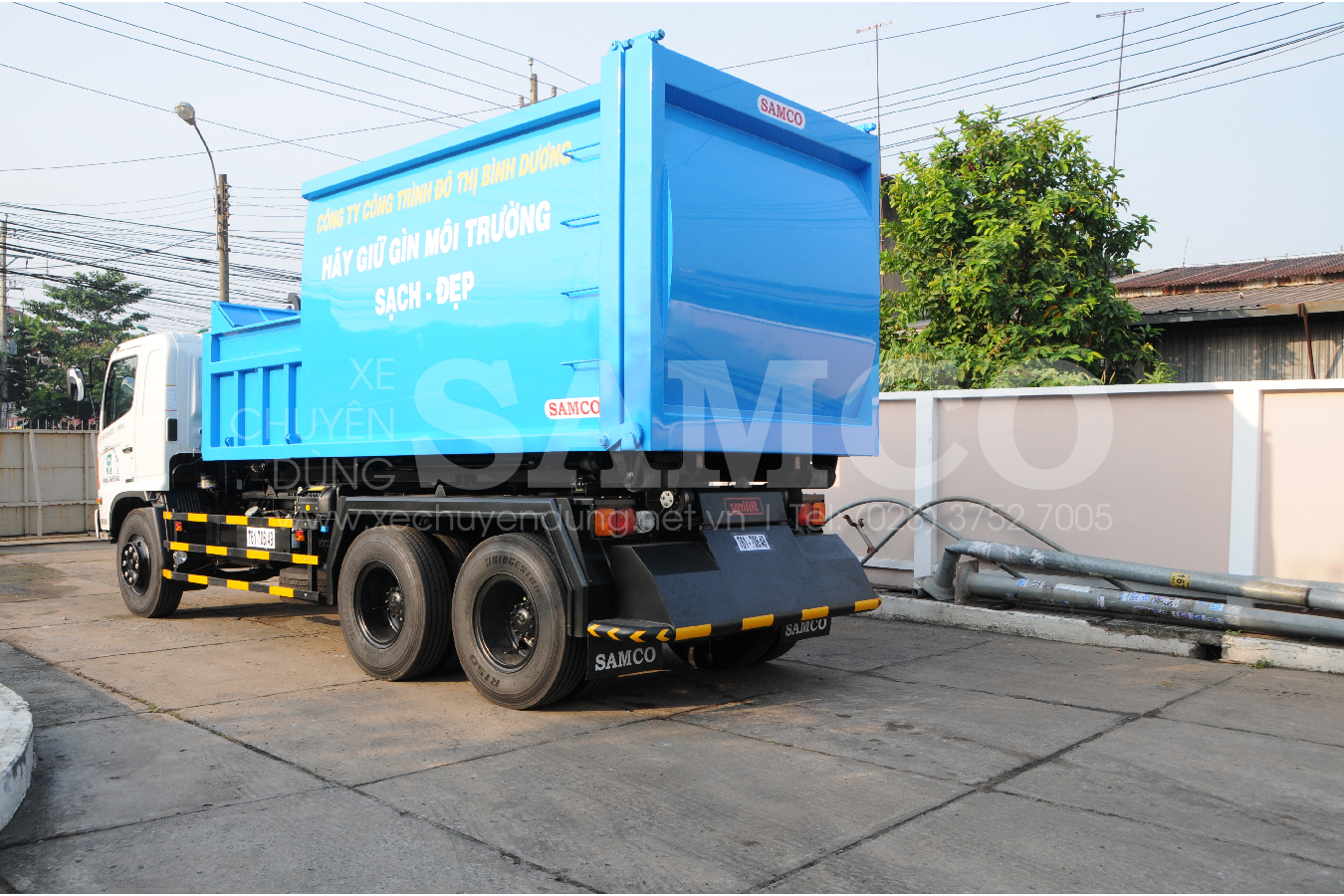

Hooklift Truck - HERHI 105

Overview

With the modern design and technology, HERHI 160 hooklift truck is the effectiveness choice for transfer compacting station in residental areas.

  • Cab chassis: Hino FM8JN7A
  • Gross weight mass : 24,000 kg
  • Payload : 10,000 kg
  • Volume: 16 m³
  • Ermission standard: EURO 4
Brochure download
Hooklift

Technical Specifications

Chasis HINO FM8JN7A
Engine Model HINO J08E-WD
Max. Output 206/ 2,500 kW/rpm
Displacement 7,684 cc
Overall Dimensions
(L x W x H)
8,000 x 2,500 x 3,750 mm
Wheel Spase 4,030 + 1,350 mm
Kerb Mass 13,805 kg
Payload 10,000 kg
G.V.W 24,000 kg
 Special container: - Length: 5,400 mm
  - Width: 2,480 mm

- Height: 2,320 mm
  - Volume: 16 m³
  - Payload: 9.500 kg
- Material: SPA-H Steel, Japan
  - Main function:  Garbage carrying
  - Accessories: 04 fold-sliding top doors
Hooklift system: - Origin : Italy
  - Model: Unilift A 18 N
  - Length: 5.200 mm
   - Max. lifting capacity: 18.000 kg

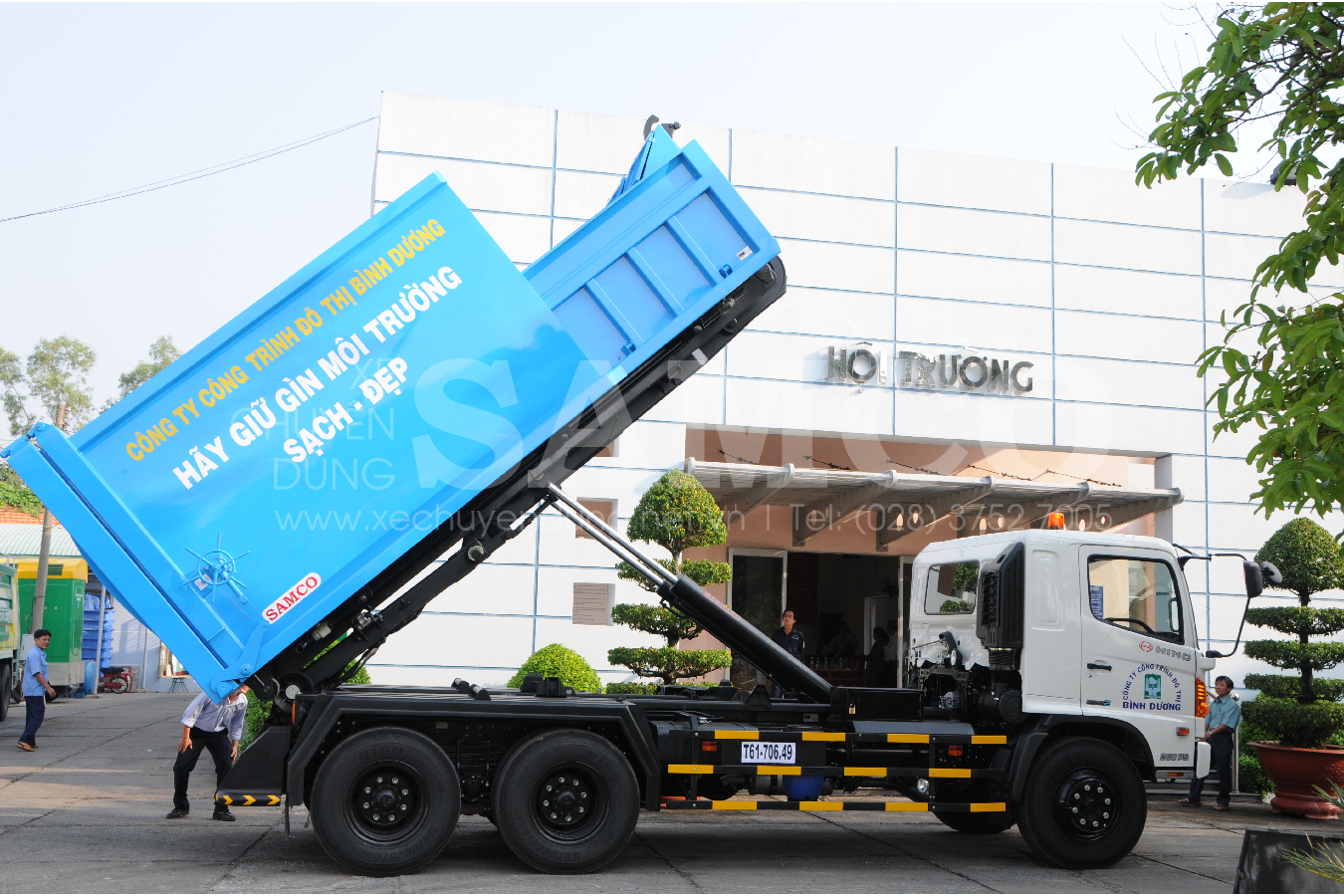

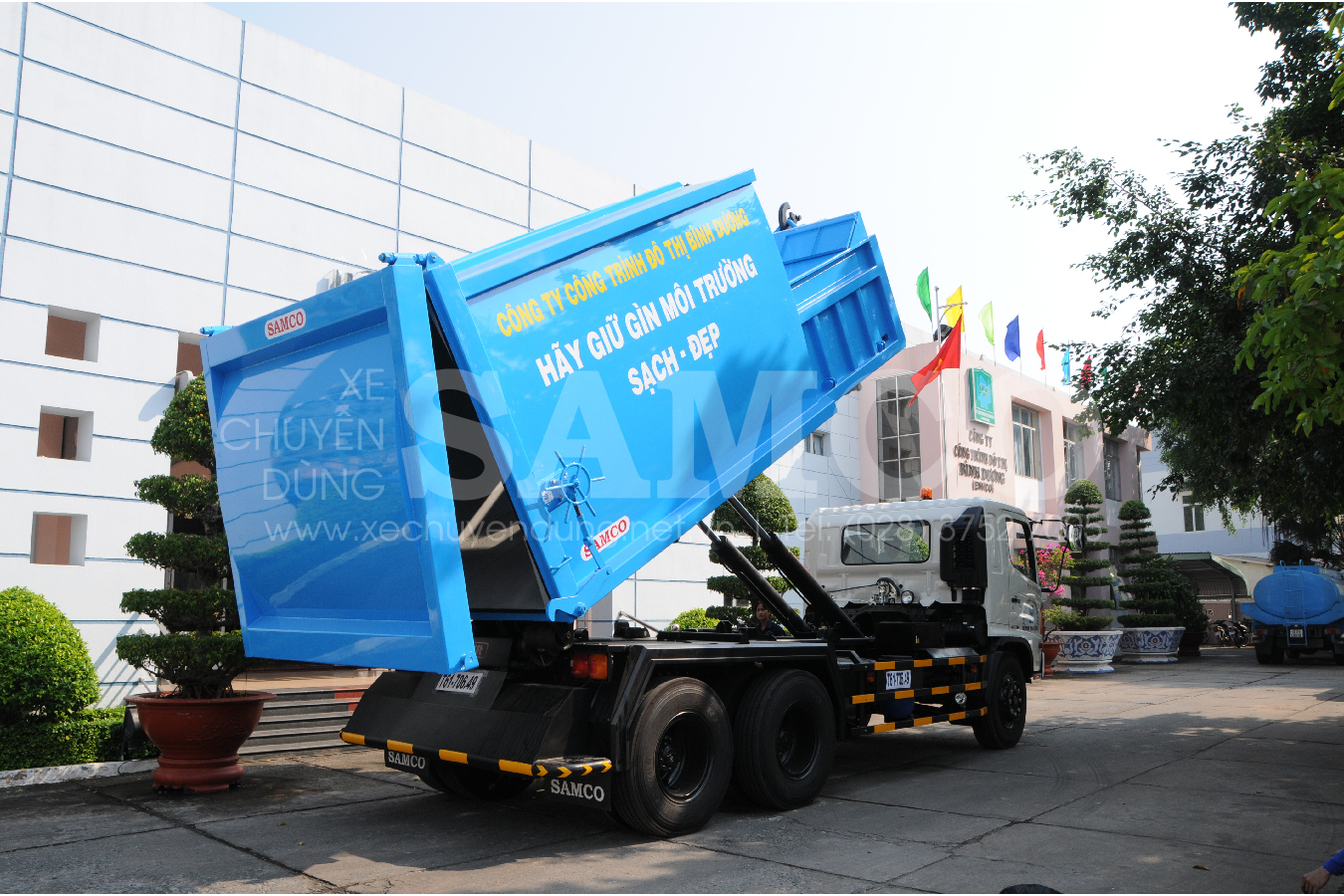

   -Tipping angle: 48º
   - Lifting cycle: 50s
  -  Safety devices:
  • Container hydraulic locking suring tipping and transporting
  • Rear foldable stabilizer imported synchonously
Controlling devices: - Hydraulic controlled
- Control lever is placed inside cab and side truck.
Cab Origin or Customer demand
Upper body Yellow, Green,Blue, Orange, Customer demand
  • In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
  • Special container could be modified with customers demand in some specified cases.
