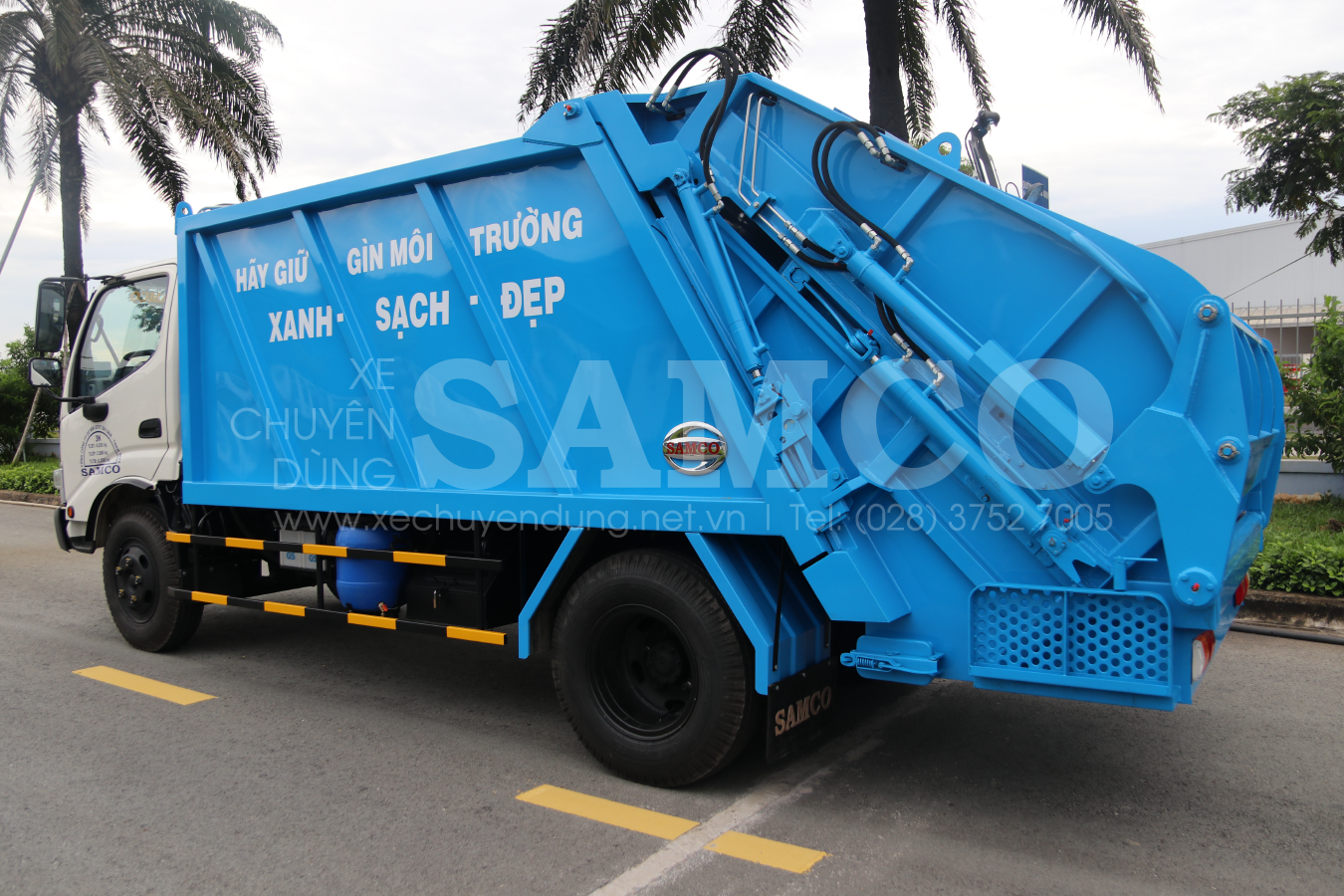

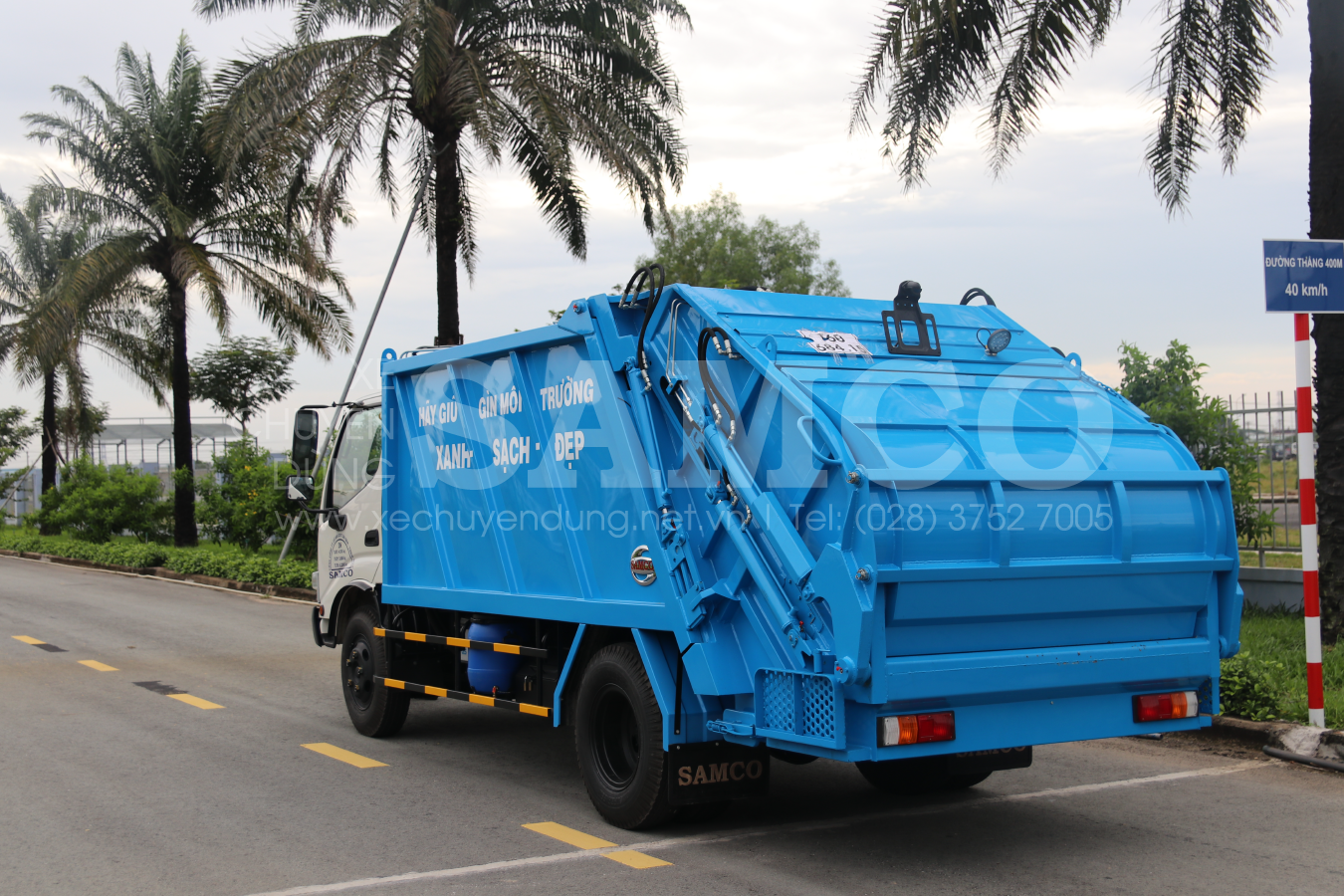

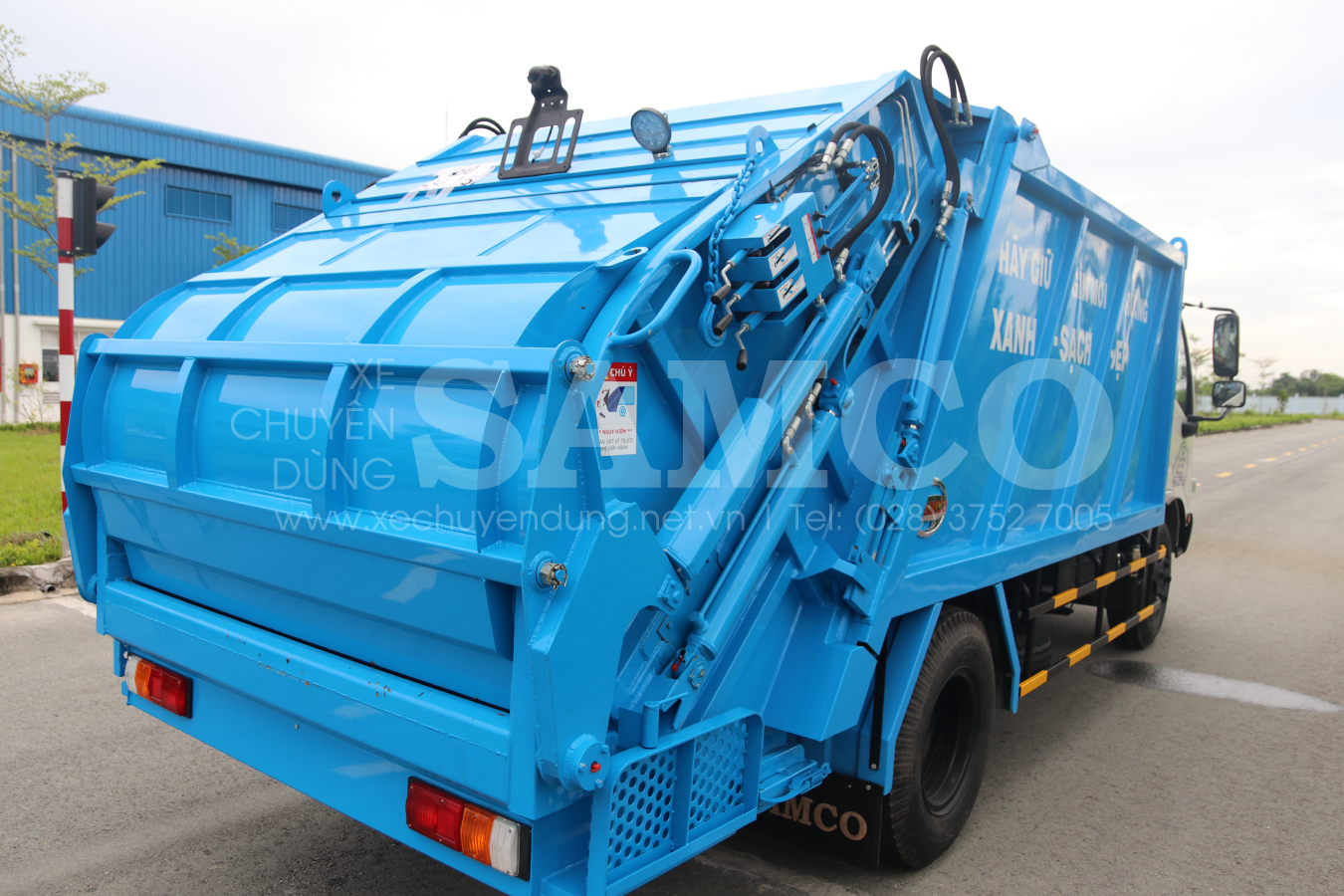

Garbage Truck - ERMHI 070

Overview

Garbage truck model ERMHI 070 is designed fully compatible with Vietnamese condition. The combination of HINO XZU342L cab chassis, by Hino Motors Vietnam and SAMCO's body will give the customer the appropriate choice. Besides, with the garbage tailgate cover equipped, which will preserve the hygiene and ensure the urban aesthetics.

  • Chassis: Hino XZU342L
  • Payload: 3,400 kg
  • Gross vehicle weight: 8,250 kg
  • Volume: 7.0 m³
  • Emission Standard: EURO4
Brochure download
<p>Garbage Truck with bulldoze, Bulldozing Garbage trucks, Hino</p>

Technical Specifications

Cab chassis Hino XZU342L
Engine N04C-VC
Max. output 104.1 / 2500 kW/rpm
Displacement 4,009 cc
Overall Dimensions (L x W x H) 6,240 x 1,990 x 2,500 mm
Wheel Spase 3,380 mm
G.V.W 8,250 kg
Vehicle mass 4,655 kg
Payload 3,400 kg
Tank Volume: 7.0 m³
Body profile: Rectangle shape with reinforced plane wall
Tank material: SPA-H steel, Japan
Compacting force 10,200 kgf

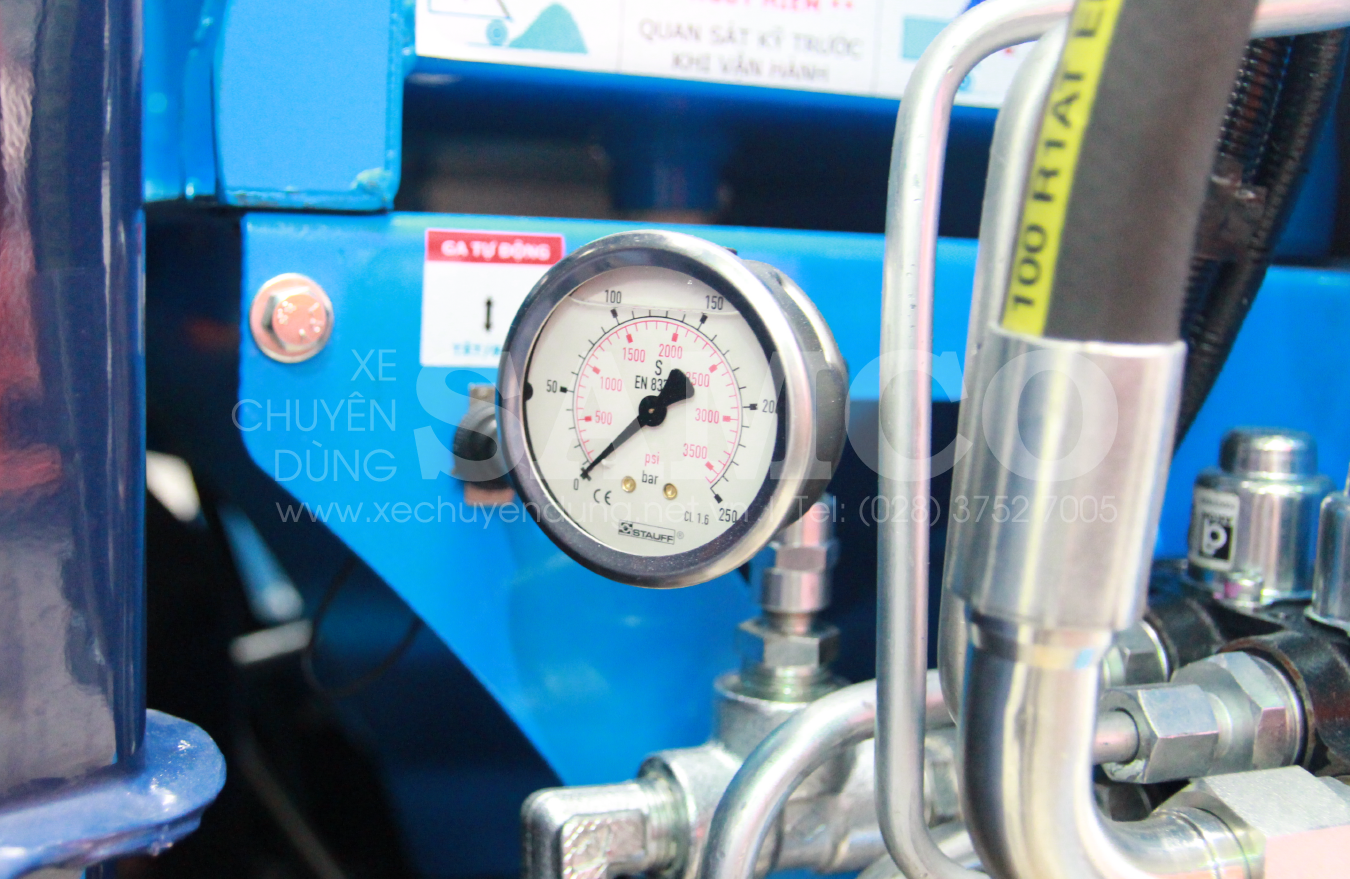

Hydraulic equipments Imported from Europe
Operating accelerator: Uninterrupted electric accelerator
Loading garbage system Bulldoze mechanism
Anti-leakage System Prevent leachate out and limit diffusion of odor
Garbage loading control - Turn up bulldoze into the trough
- Turn back bulldoze to initial position
Garbage compacting control - Continuous automatic operation
- Manual control

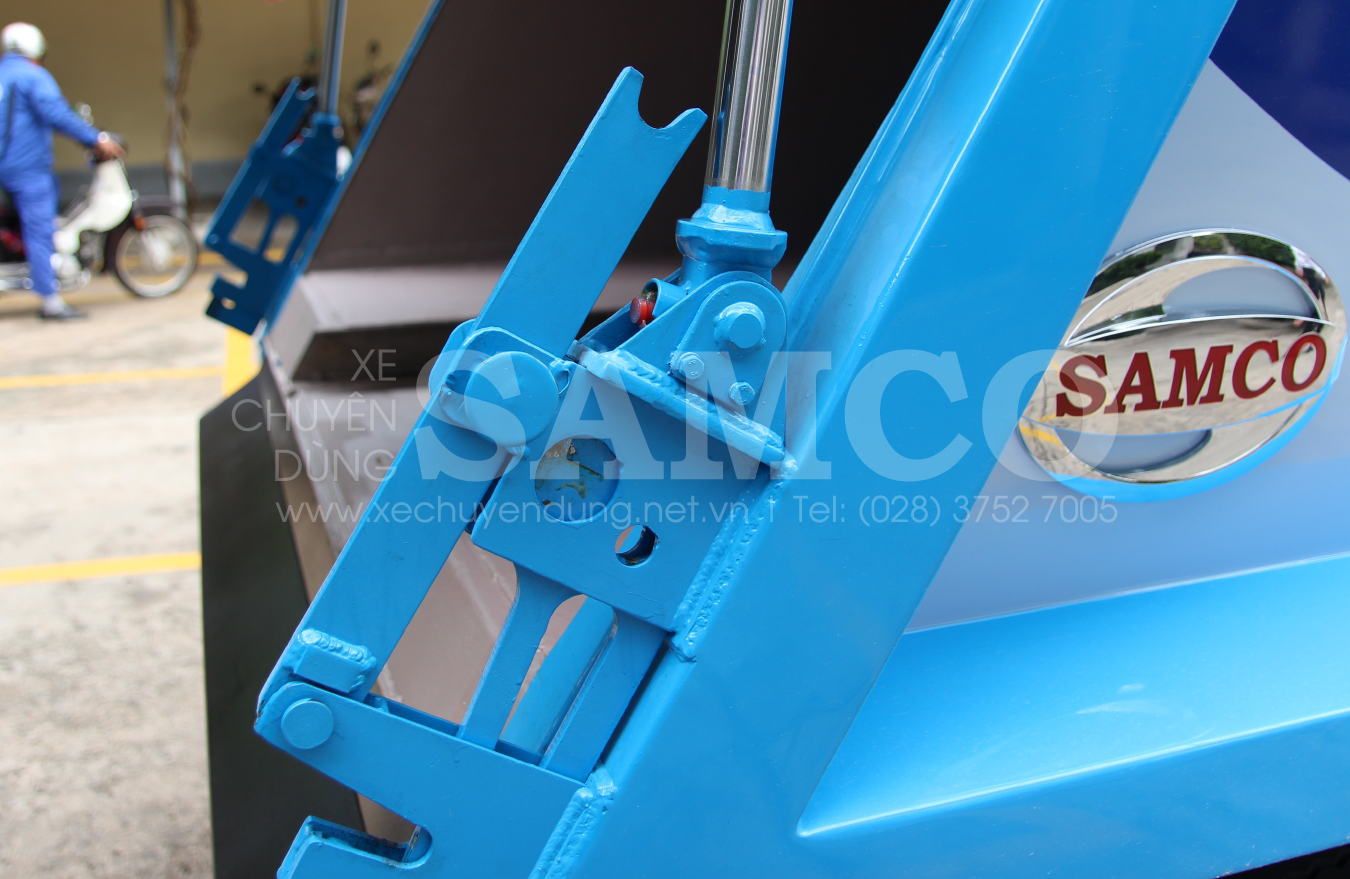

Garbage ejecting control - Opening locks and lifting tailgate
- Ejecting garbage
- Moving the ejecting plate pack
- Lowering and locking the tailgate
Tank Blue, Green, Orange, White, Customers demand
Product policy In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation
Trucks

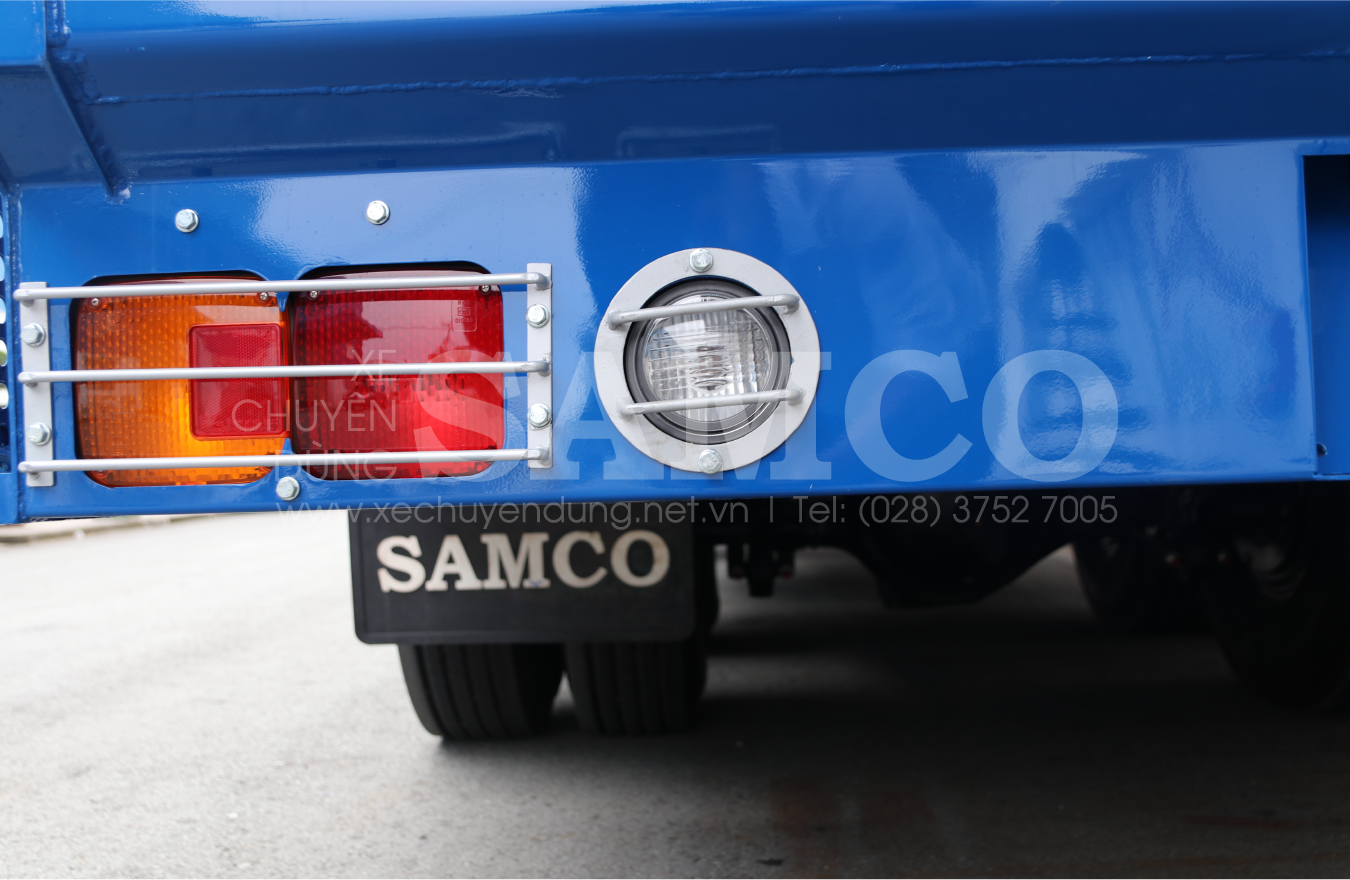

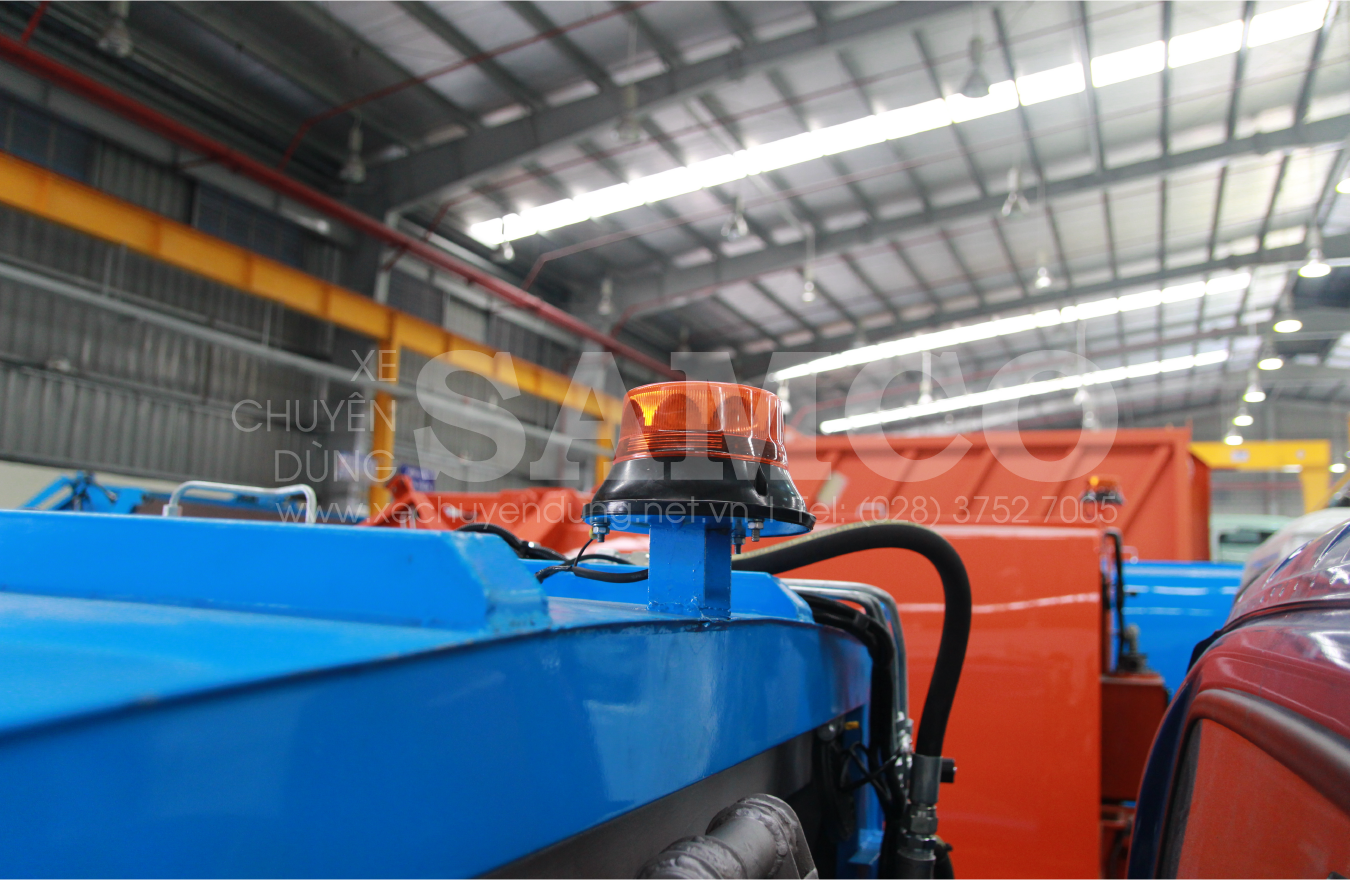

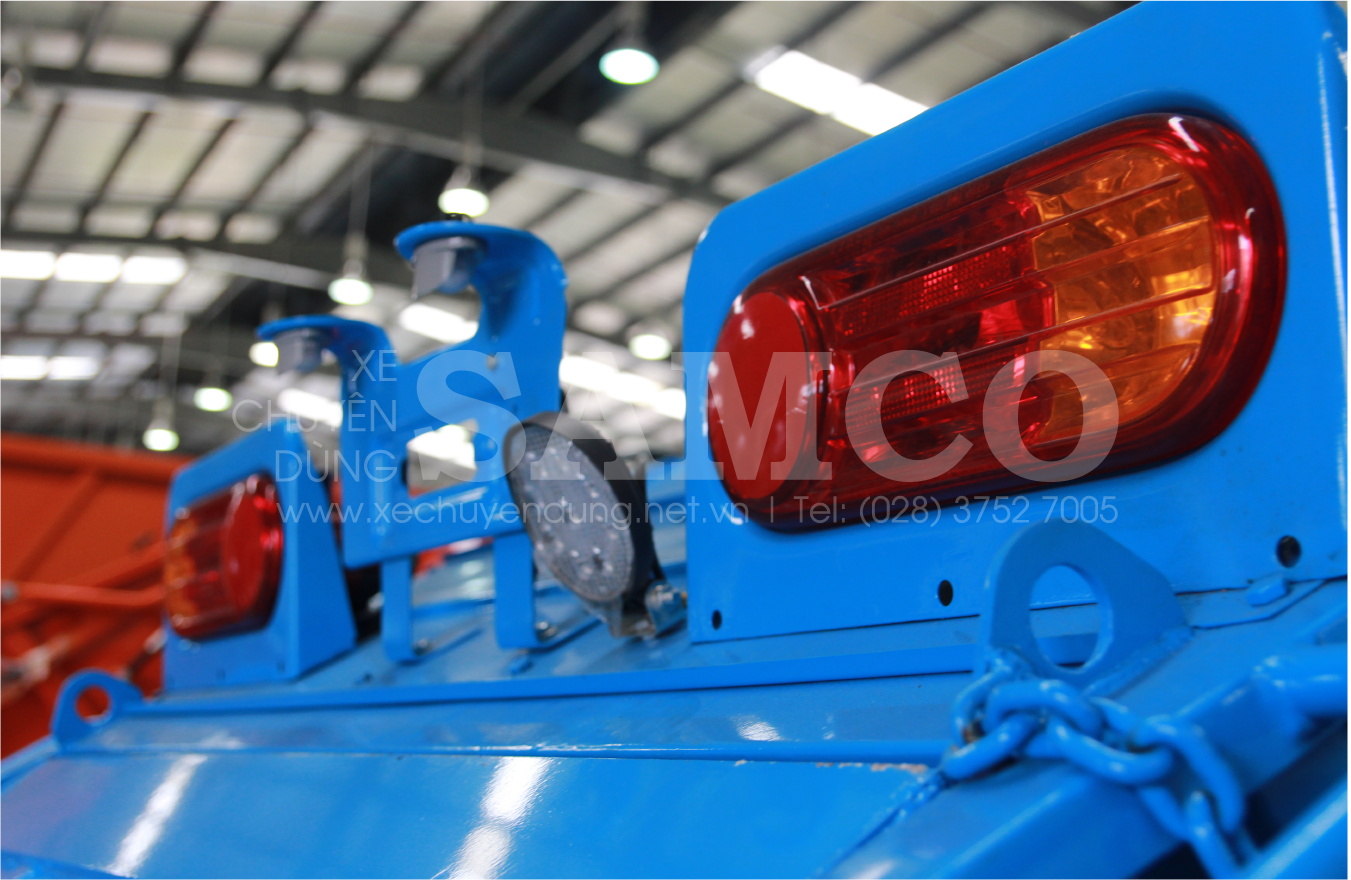

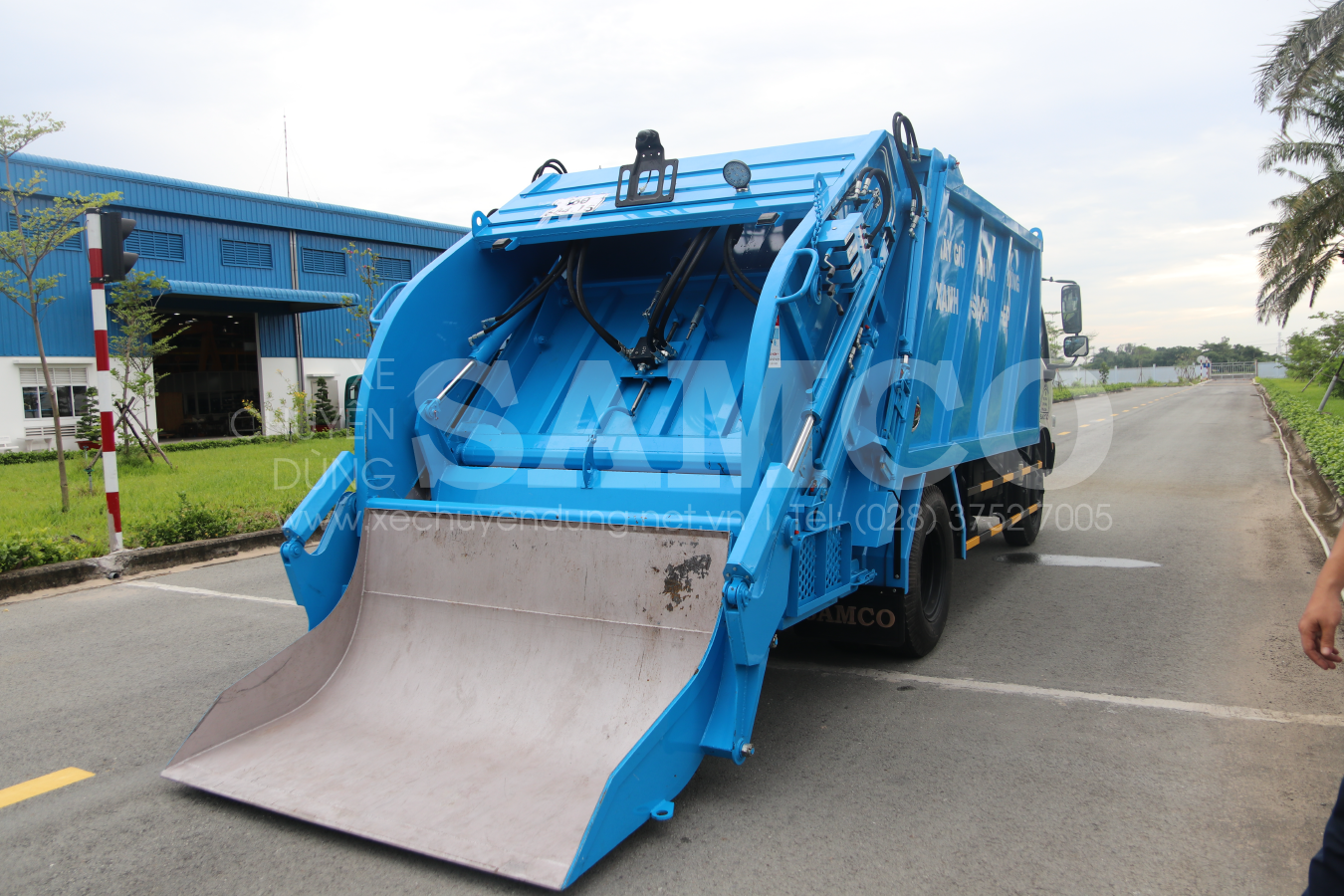

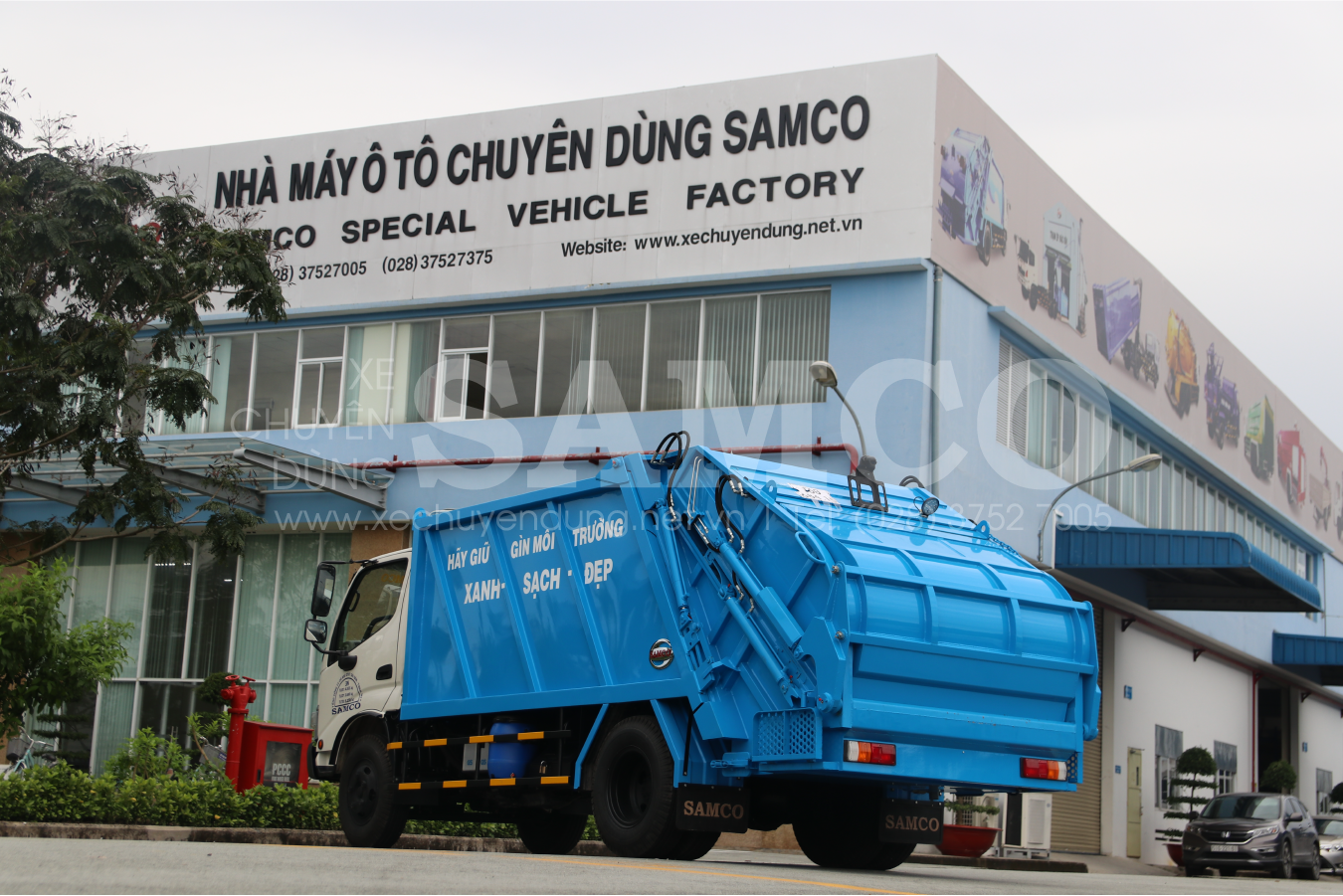

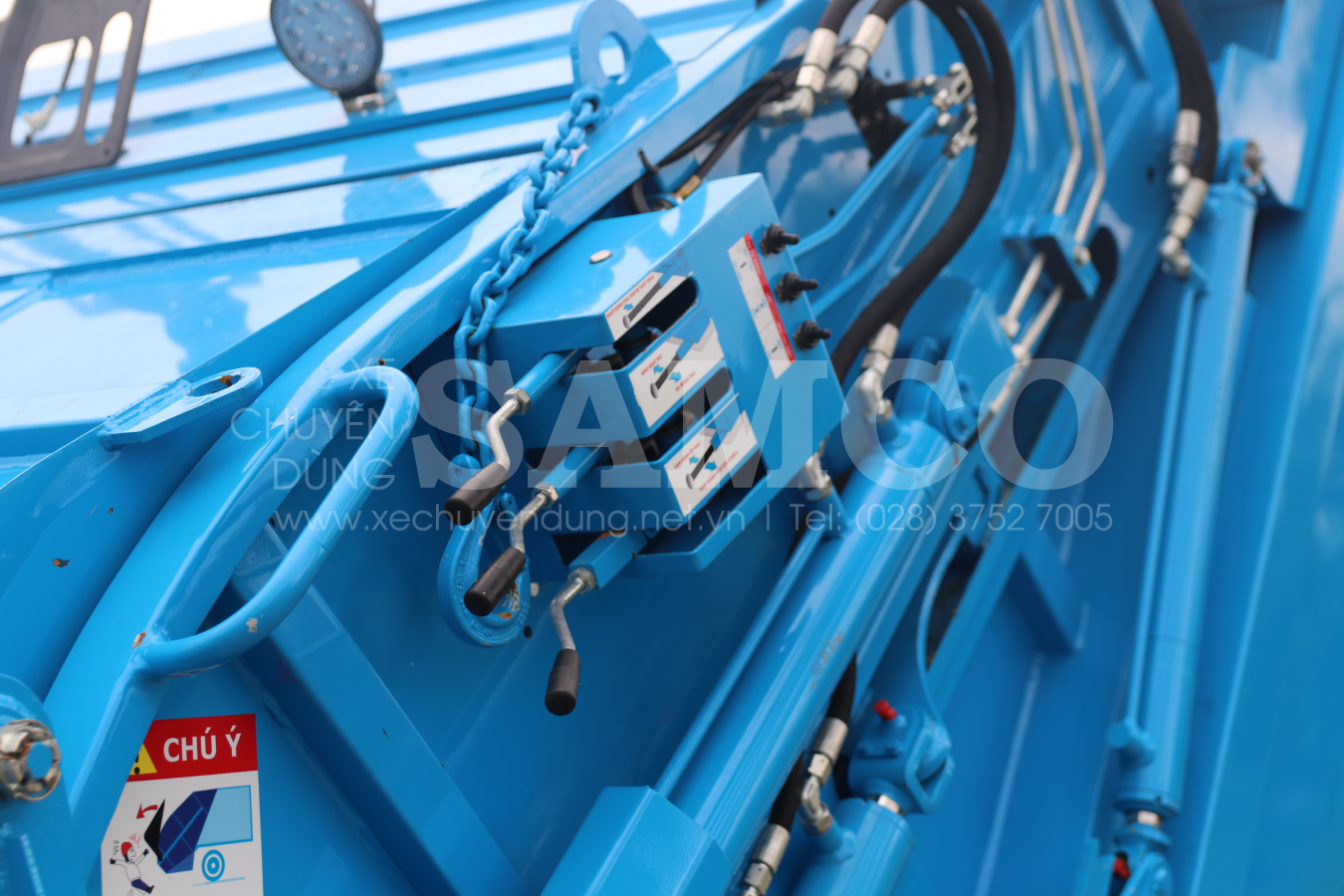

Detail images
