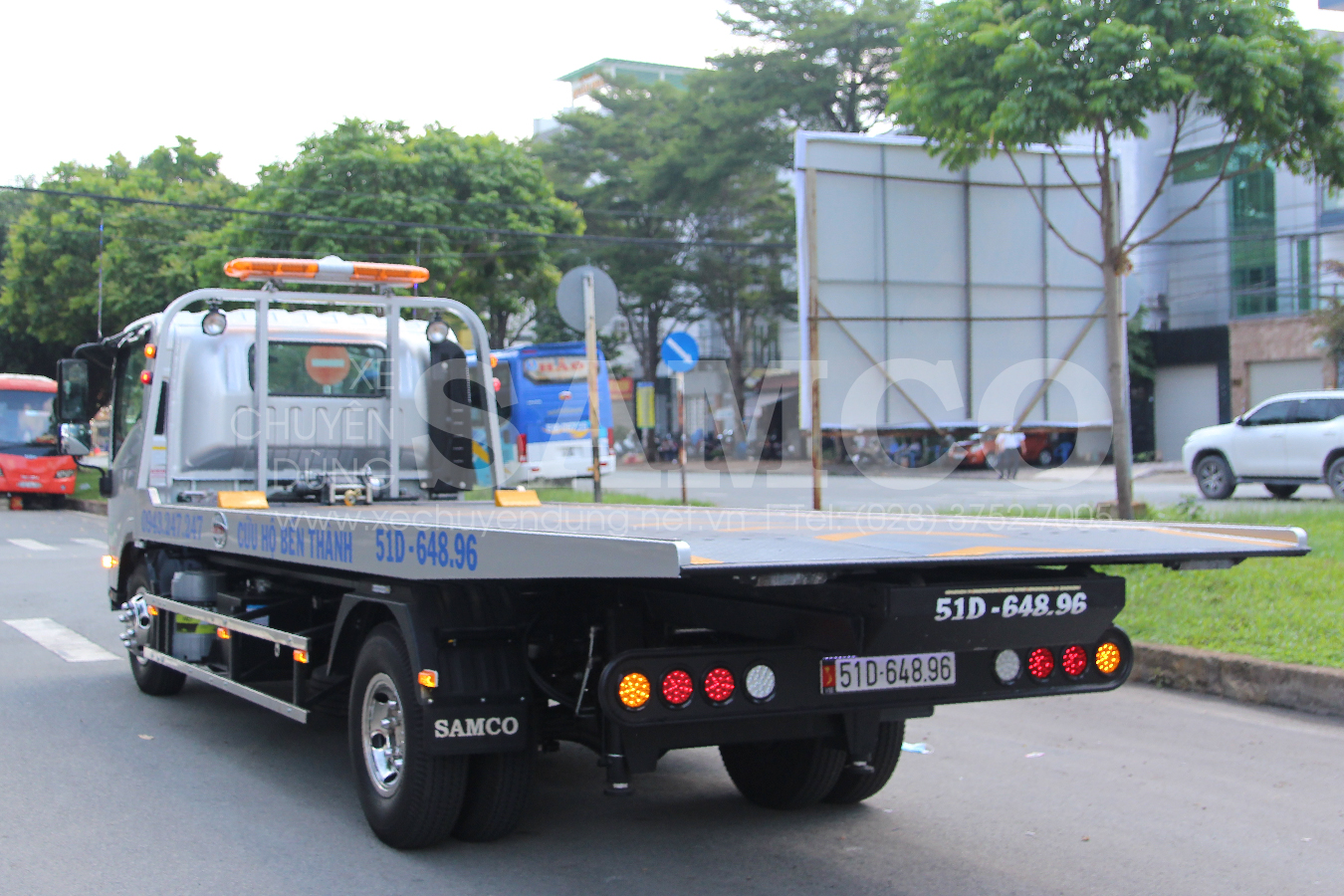

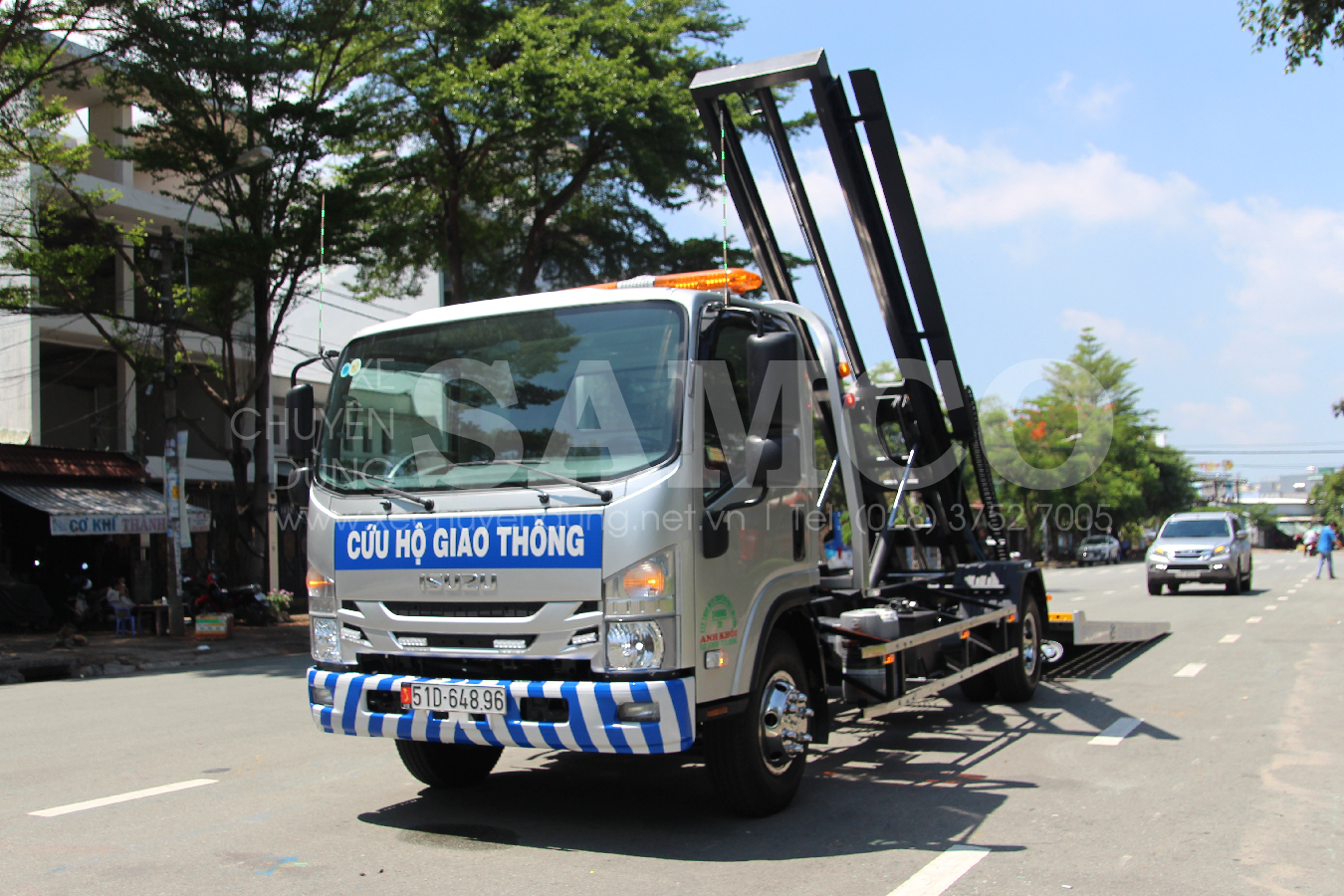

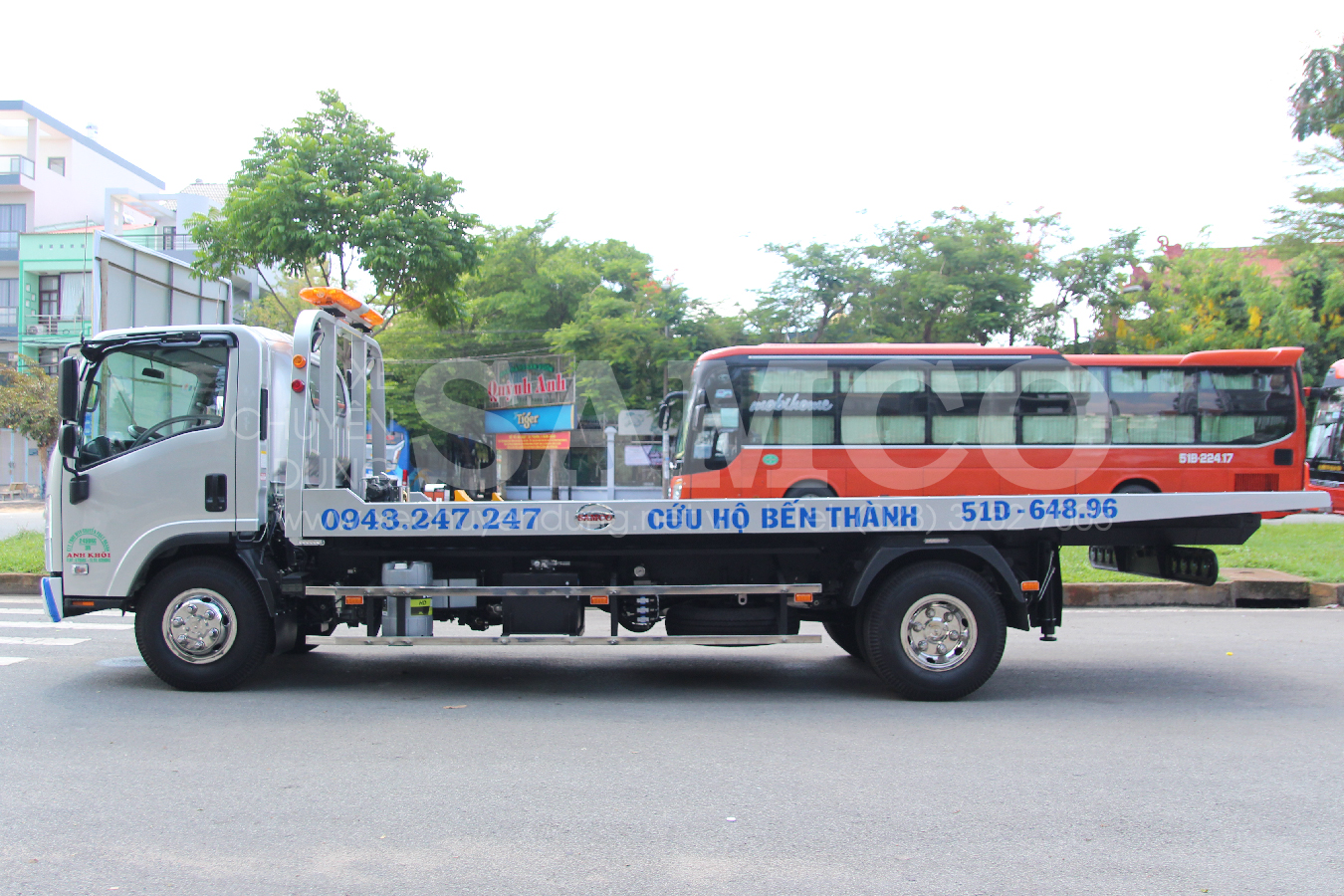

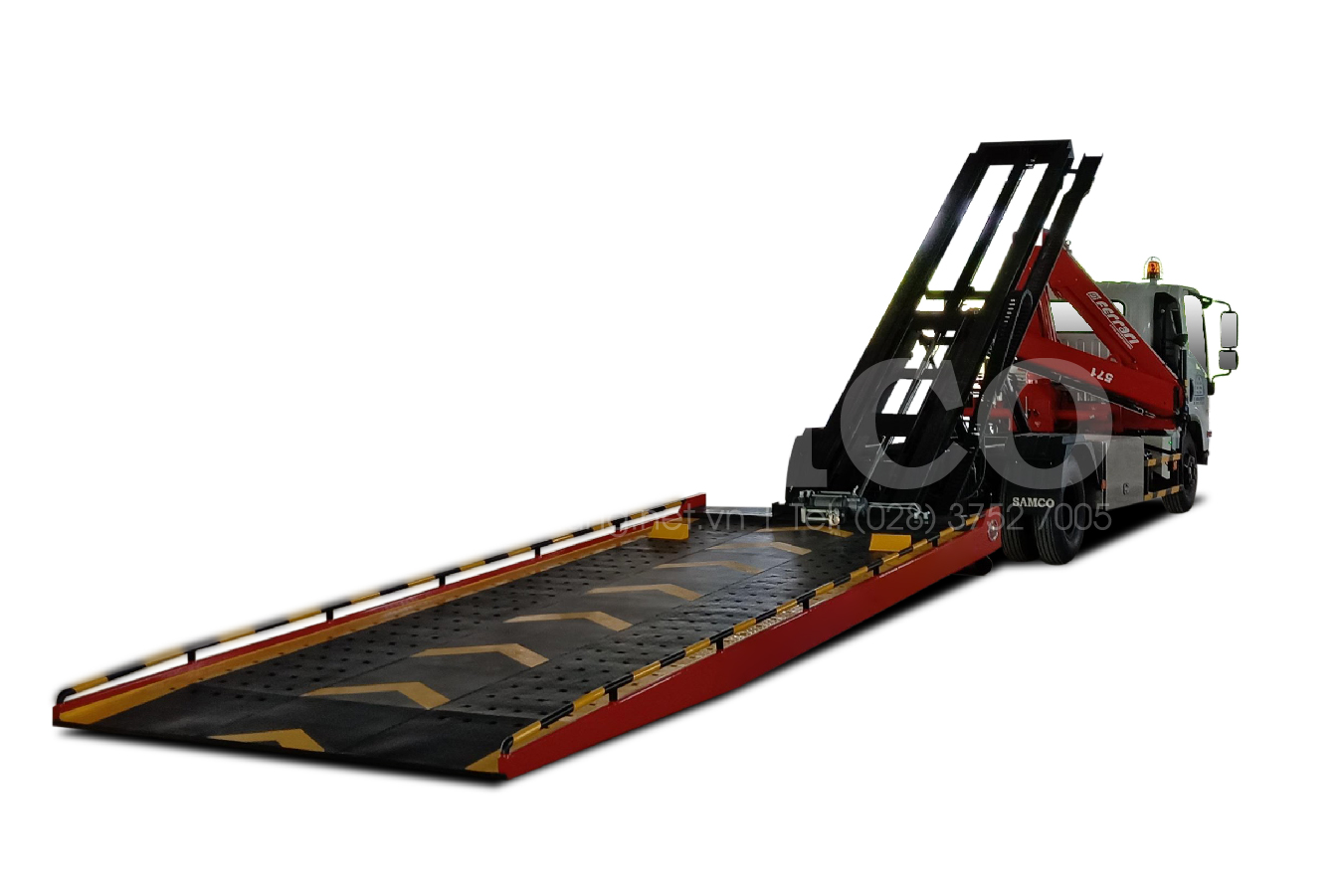

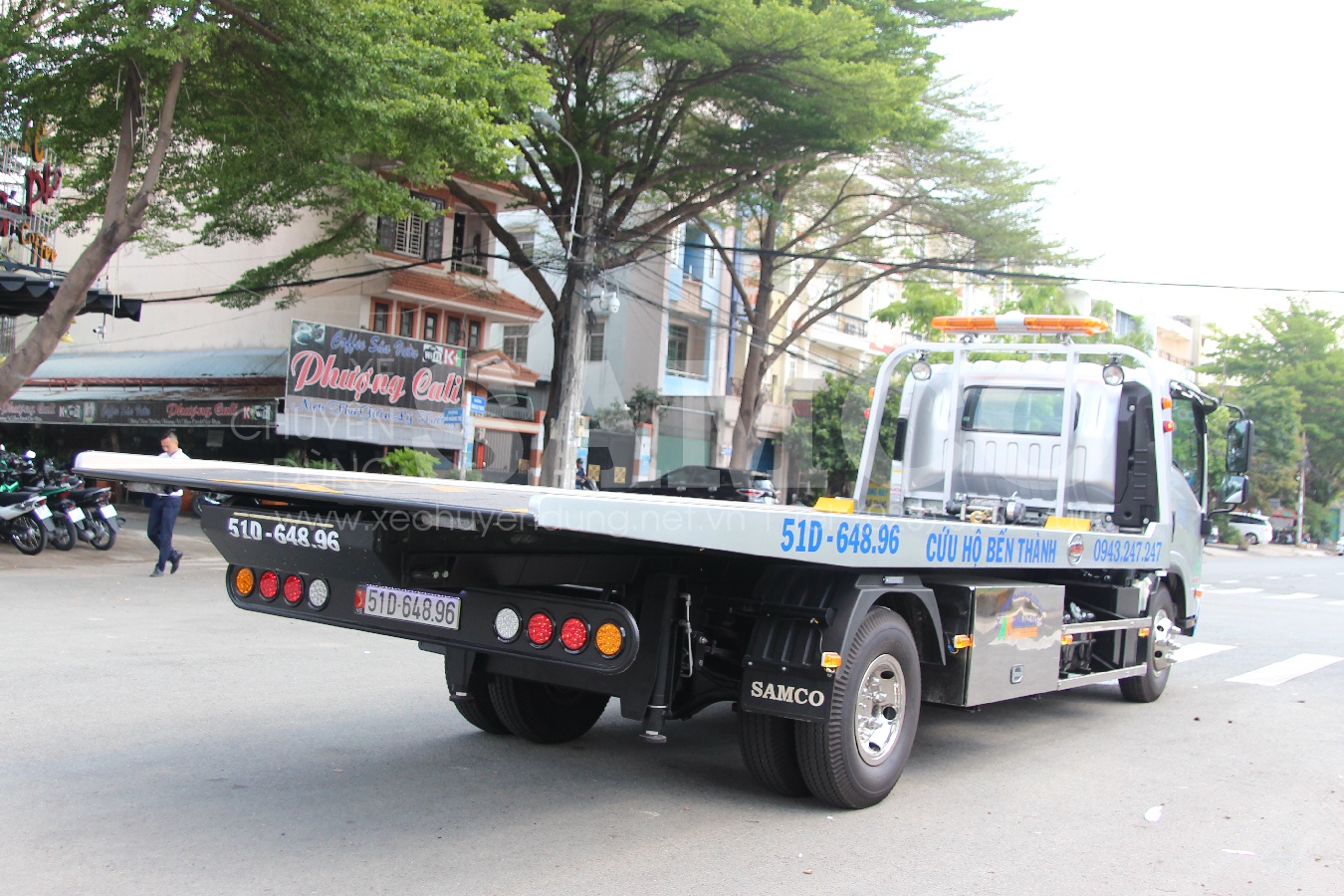

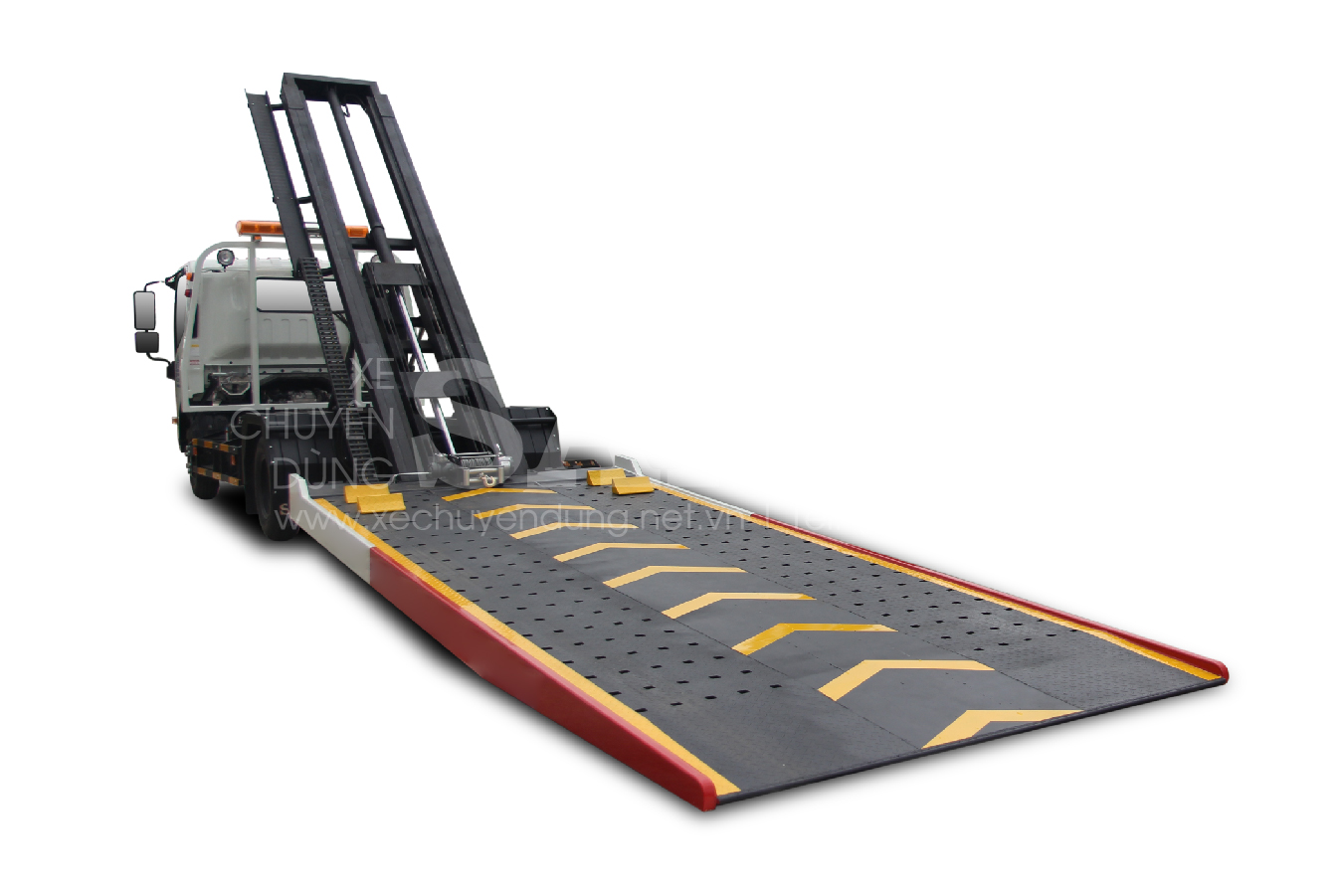

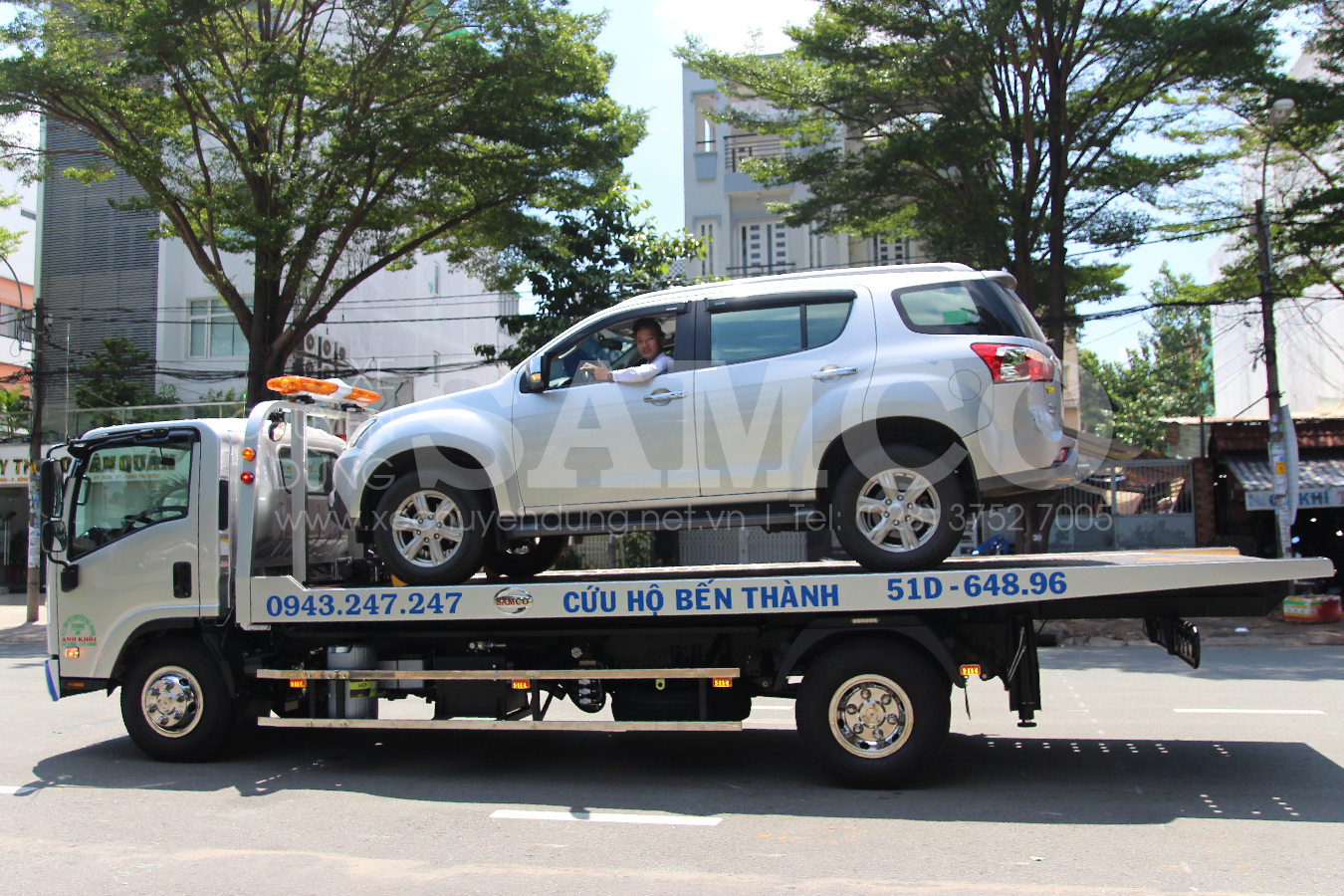

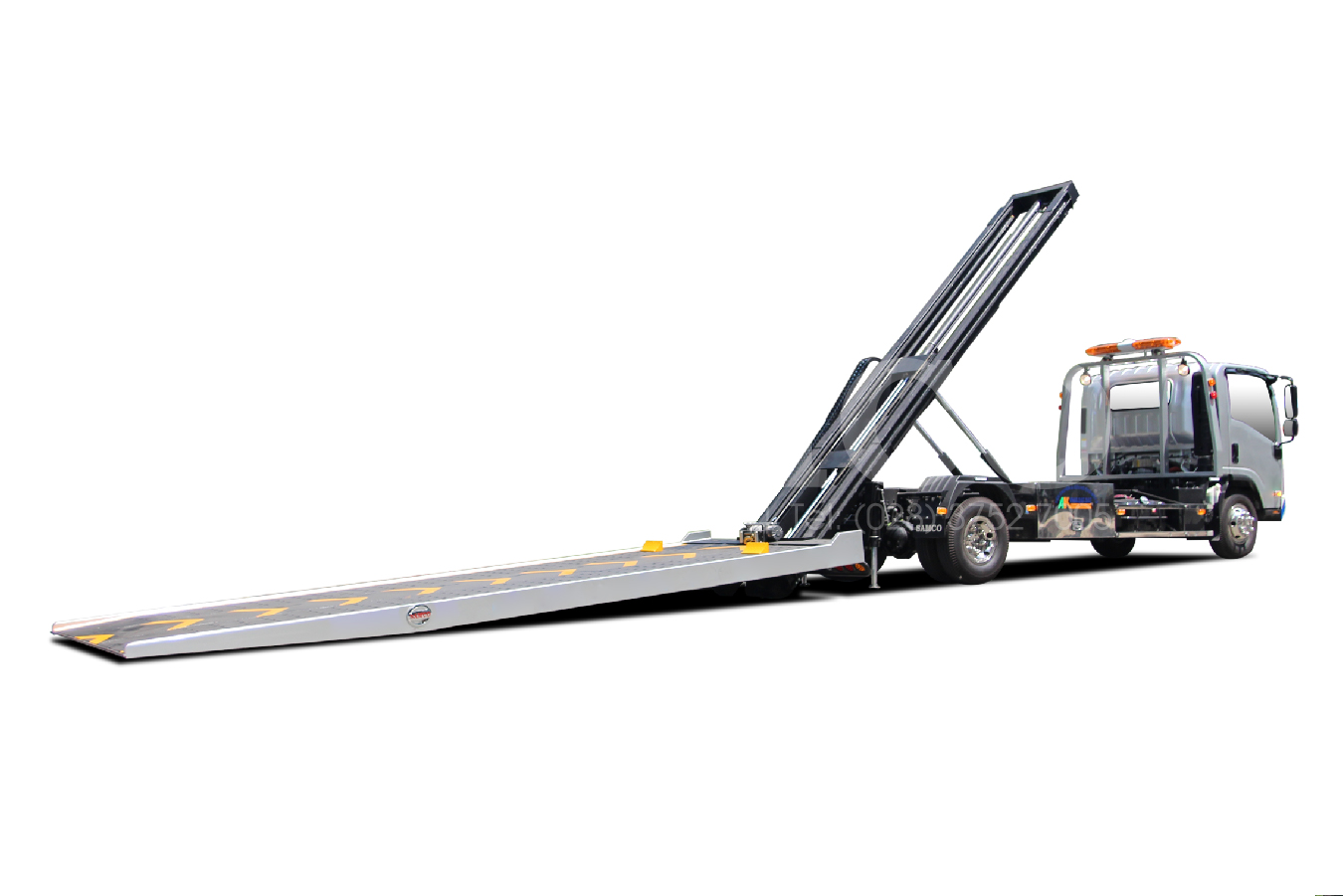

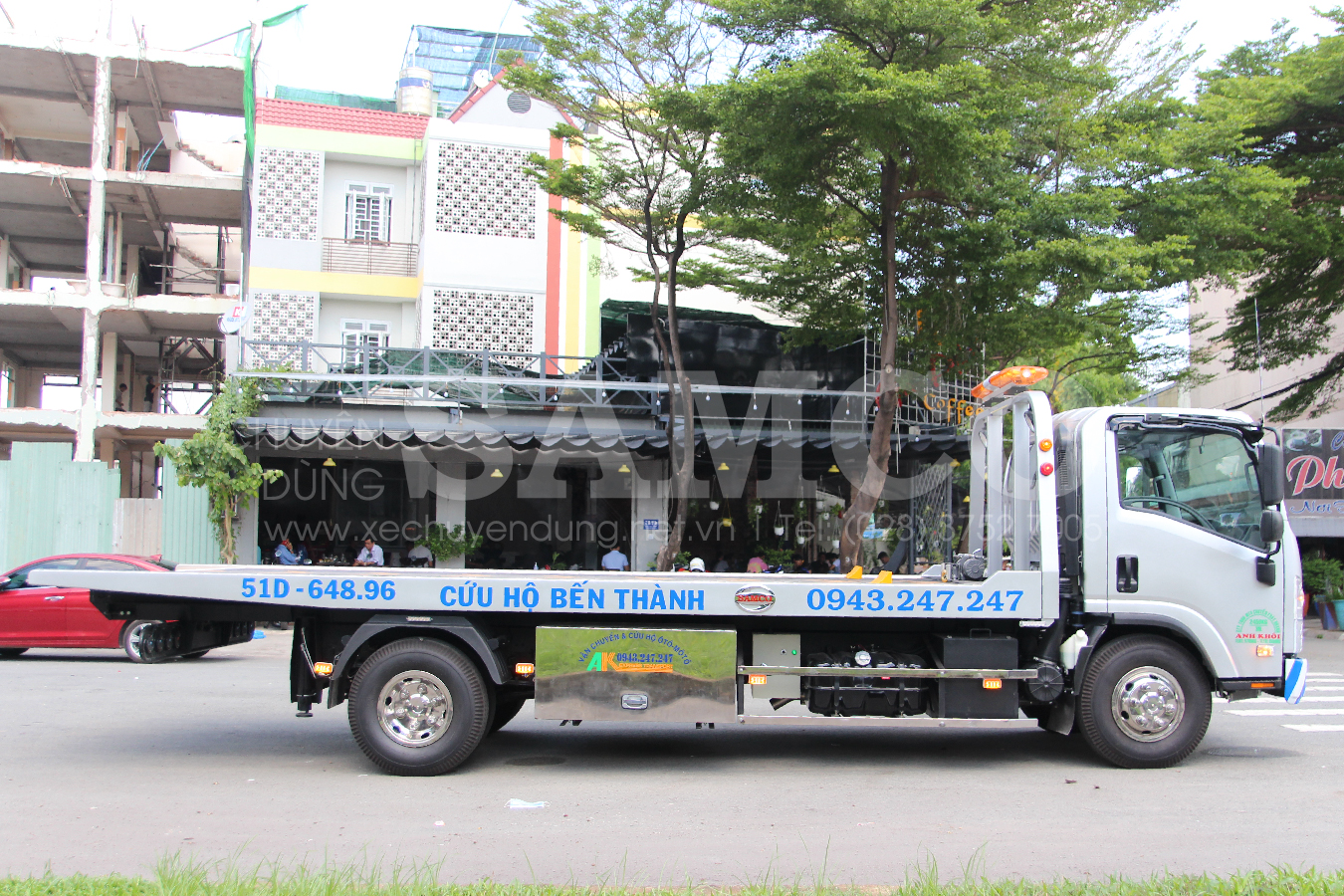

Recovery Truck - CHCIS 024

Overview

CHCIS 024 is the best choice of automobile showroom in Vietnam.

With the payload up to about 2.4 tons, and build on Isuzu NQR75M cab chassis,

CHCIS024 can transport all kinds of passenger car, commercial car in safety and convenient way. It can meet the demand of delivering car for long distance customers.
  • Chasis: ISUZU NPR85M
  • G.M.W: 8,350 kg
  • Payload: 2,450 kg
  • Kerb mass: 5,705 kg
  • Emision standard: EURO 4
  • Lowering stage: on floor
<p>passenger car carrier, Isuzu</p>

Technical Specifications

Cab chasis ISUZU NPR85KE4
Engine model ISUZU 4HK1-E4NC
Max. Output 114/2,600 kW/rpm
Displacement 5,193 cc
Dimensions (L x W x H) 8,000 x 2,250 x 2,600 mm
Wheel Spase 4,475 mm
G.V.W 8,350 kg
Payload 2,450 kg
Kerb mass 5,705 kg
Carrying floor Dimensions: 6,150 x 2,260 mm
Made of atmospheric corrosion resistant steels SPA-H (Japan)

Max. angle of inclined: 03 degree
Tow system Lifting and pulling vehicles from 4 to 16 seats, trucks with total tonnage of 5 tons or less
Towing winch Operated by hydraulic motor

 Traction 2.500 (kgf)
Outriggers Hydraulic stabilized outrigger
Hydraulic system Imported from EURO
Operation Operated by hydraulic system
Lifting carrying floor control Control box at rear of the vehicle

Wireless remote control
Tow system control Hydraulic lifting mechanism, 2-stage sliding box
Warning lights 02 pcs.
Light support working 01 pc.
Ropes to fix the wheel 04 pcs.
Wheel blocker 04 pcs.
Cabin As truck or customers demand
Carrying system Customers demand
Product policy:
 In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Trucks

Detail images

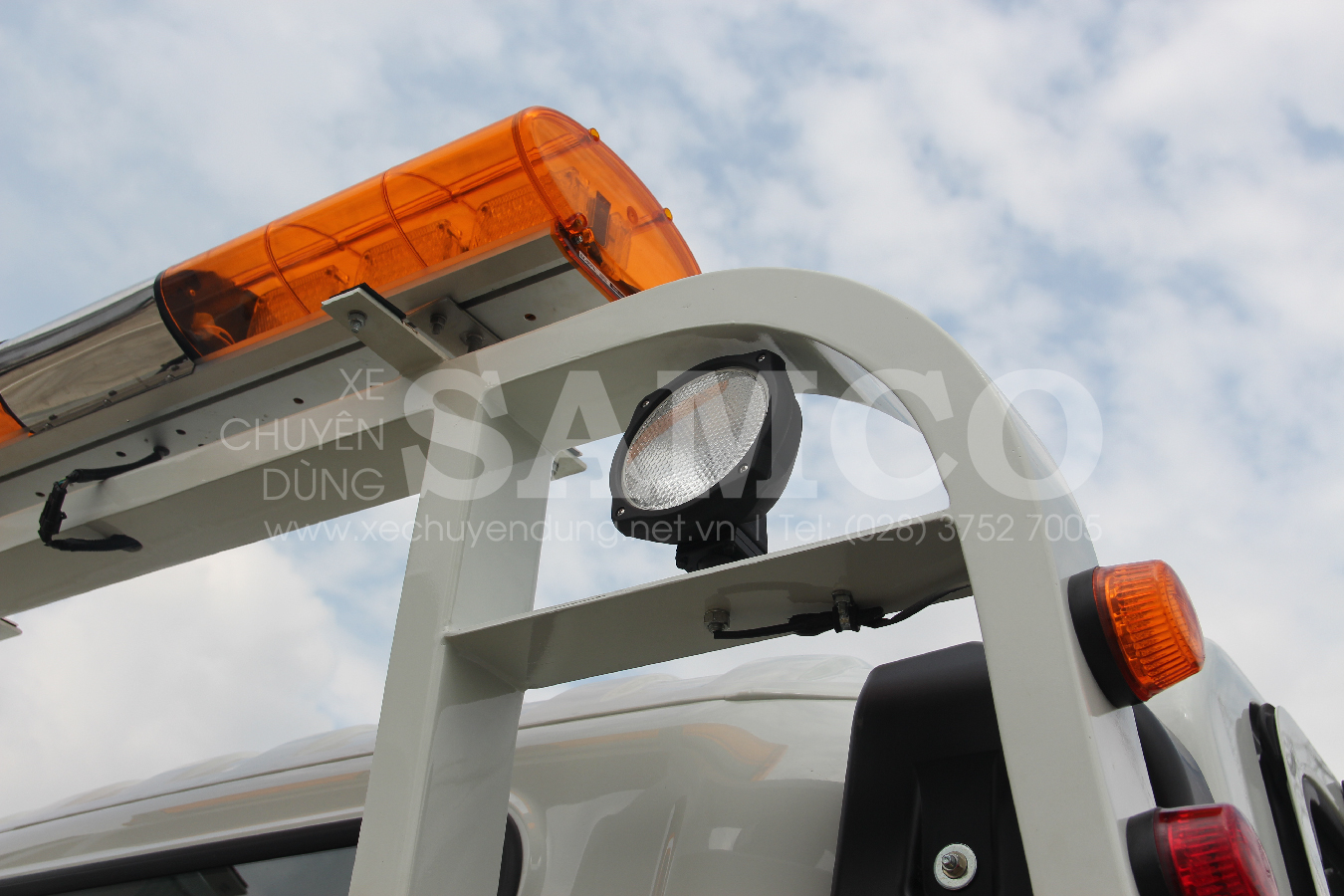

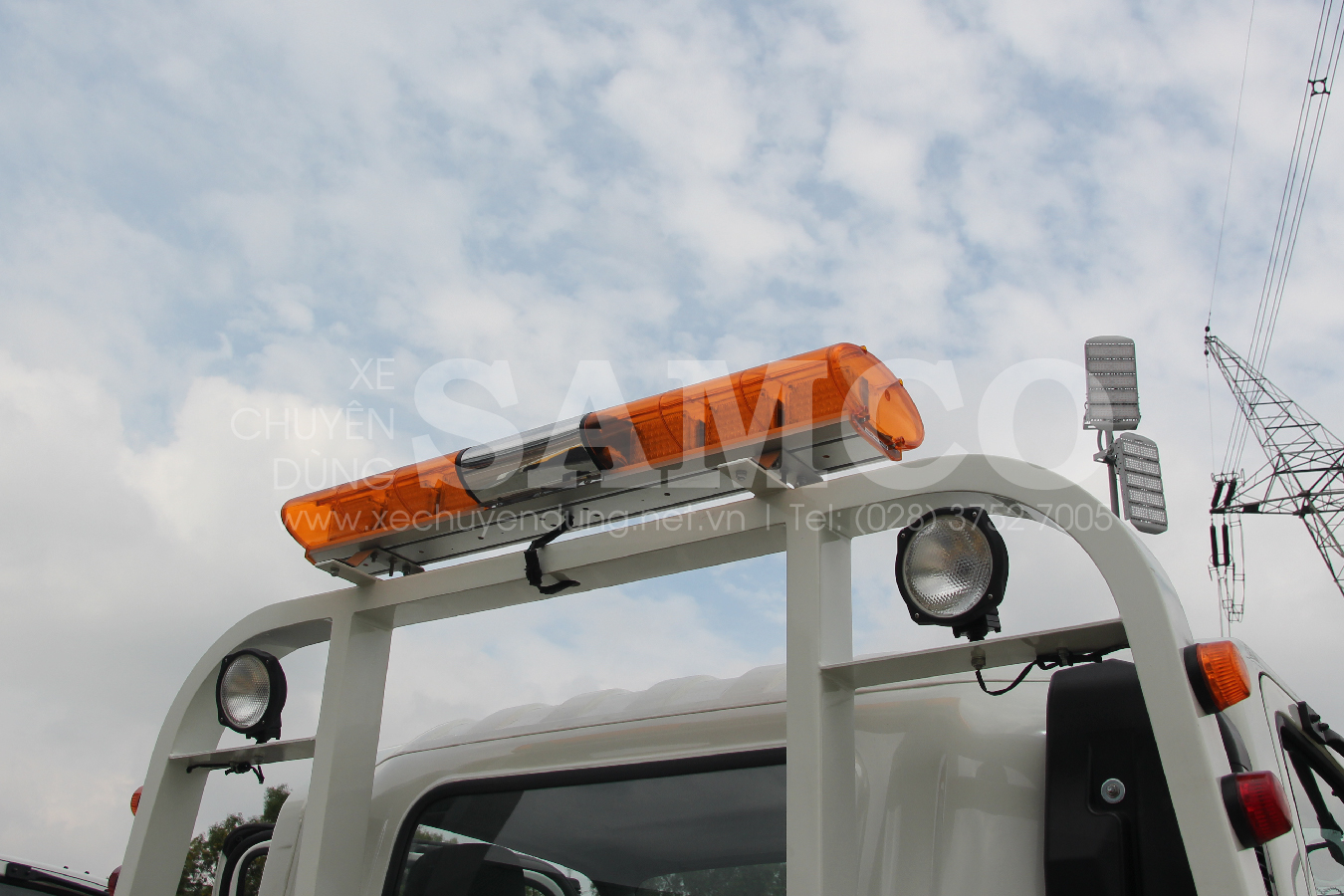

Đèn tín hiệu Đèn tín hiệu

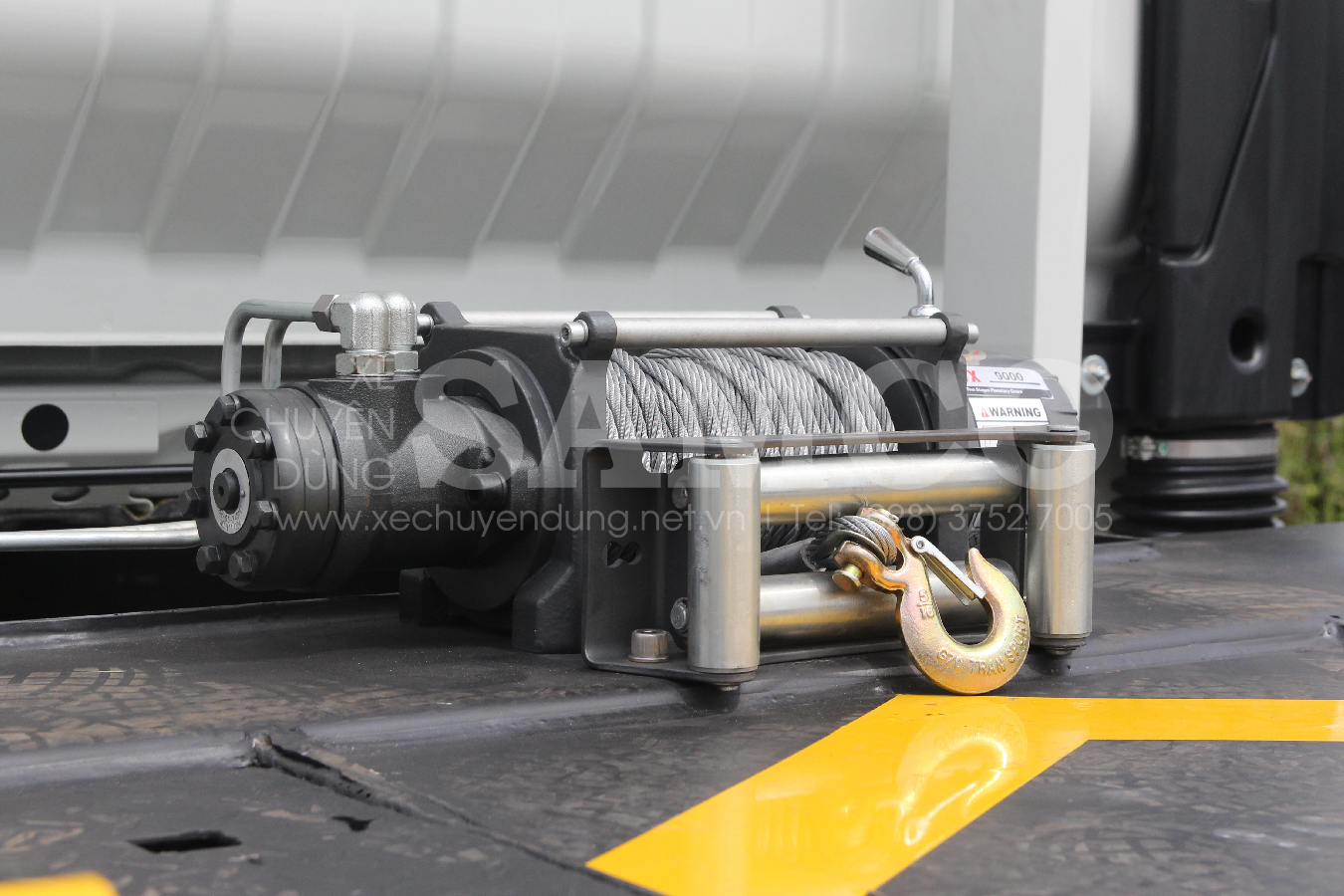

Tời kéo xe Tời kéo xe

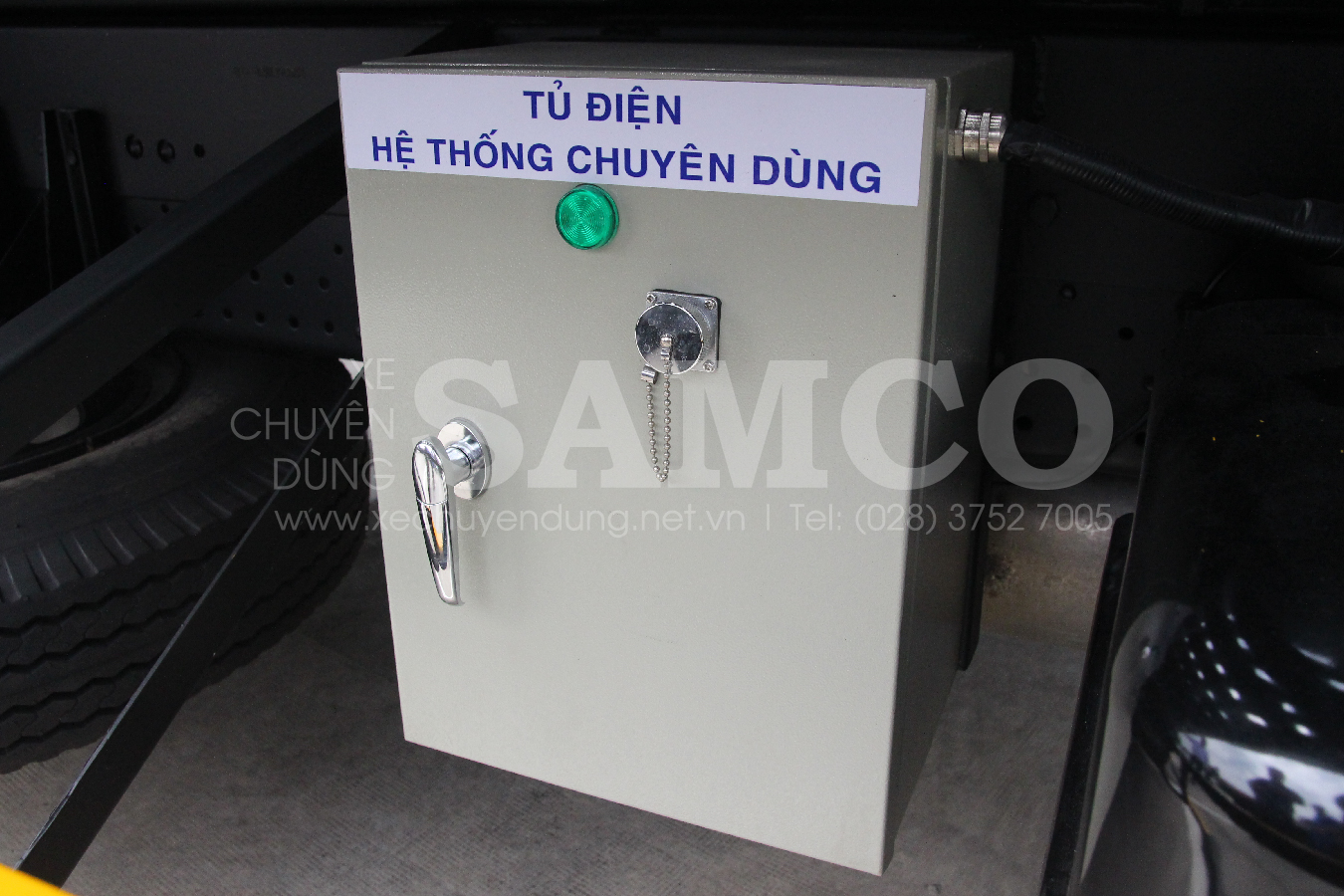

Hộp điều khiển Hộp điều khiển

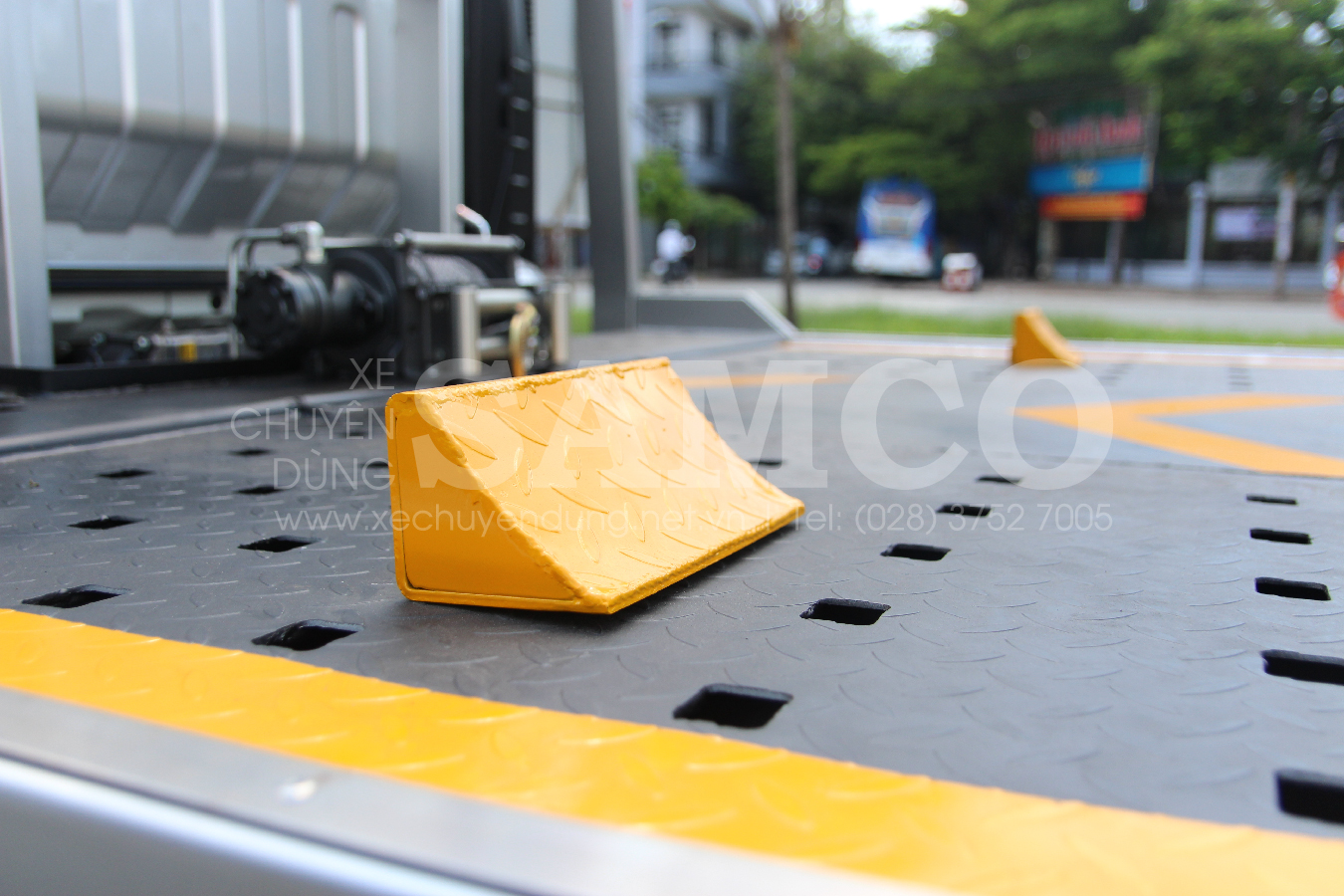

Bục cố định xe Bục cố định xe

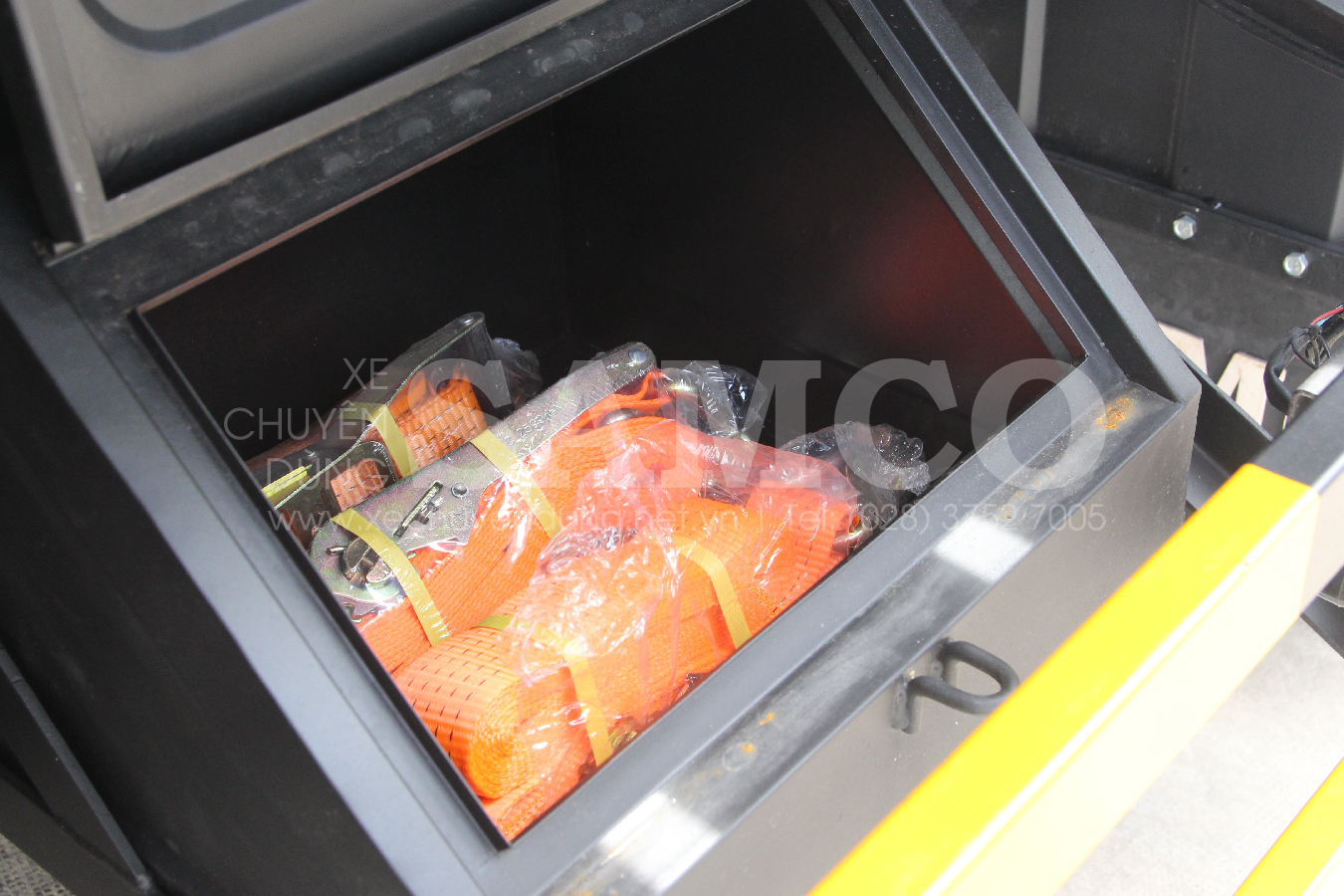

Thùng chưa dụng cụ cứu hộ và đai cố định xe Thùng chưa dụng cụ cứu hộ và đai cố định xe

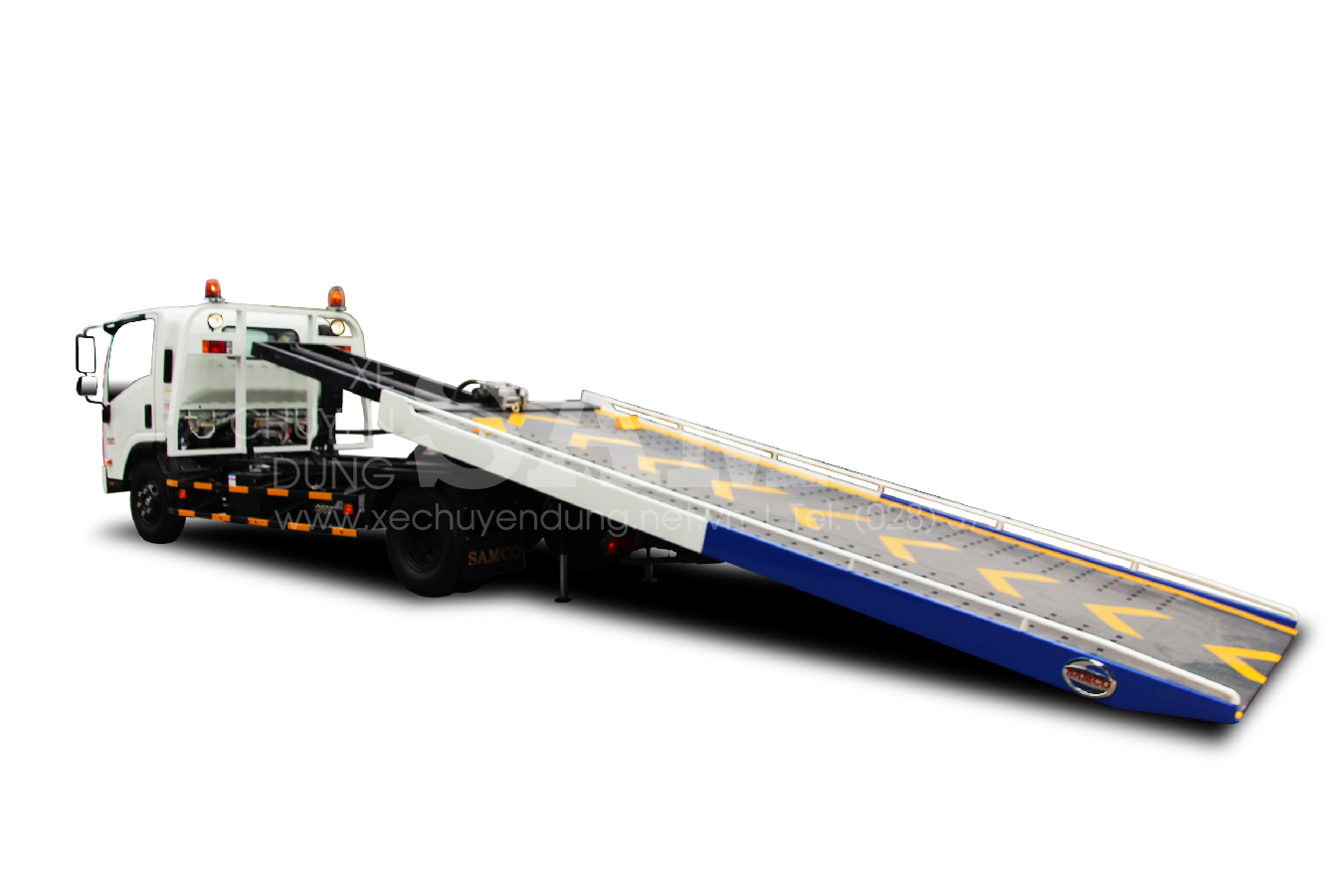

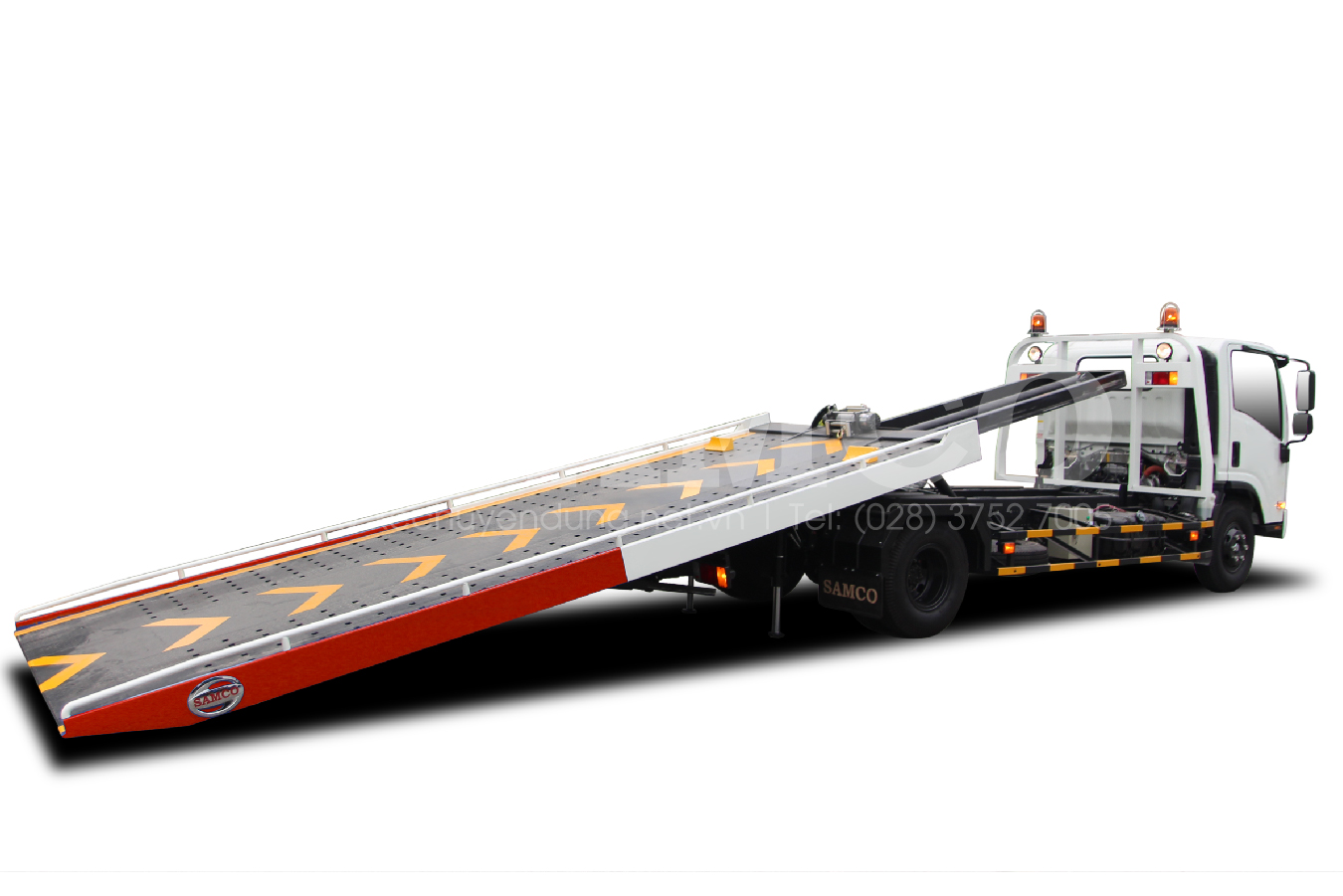

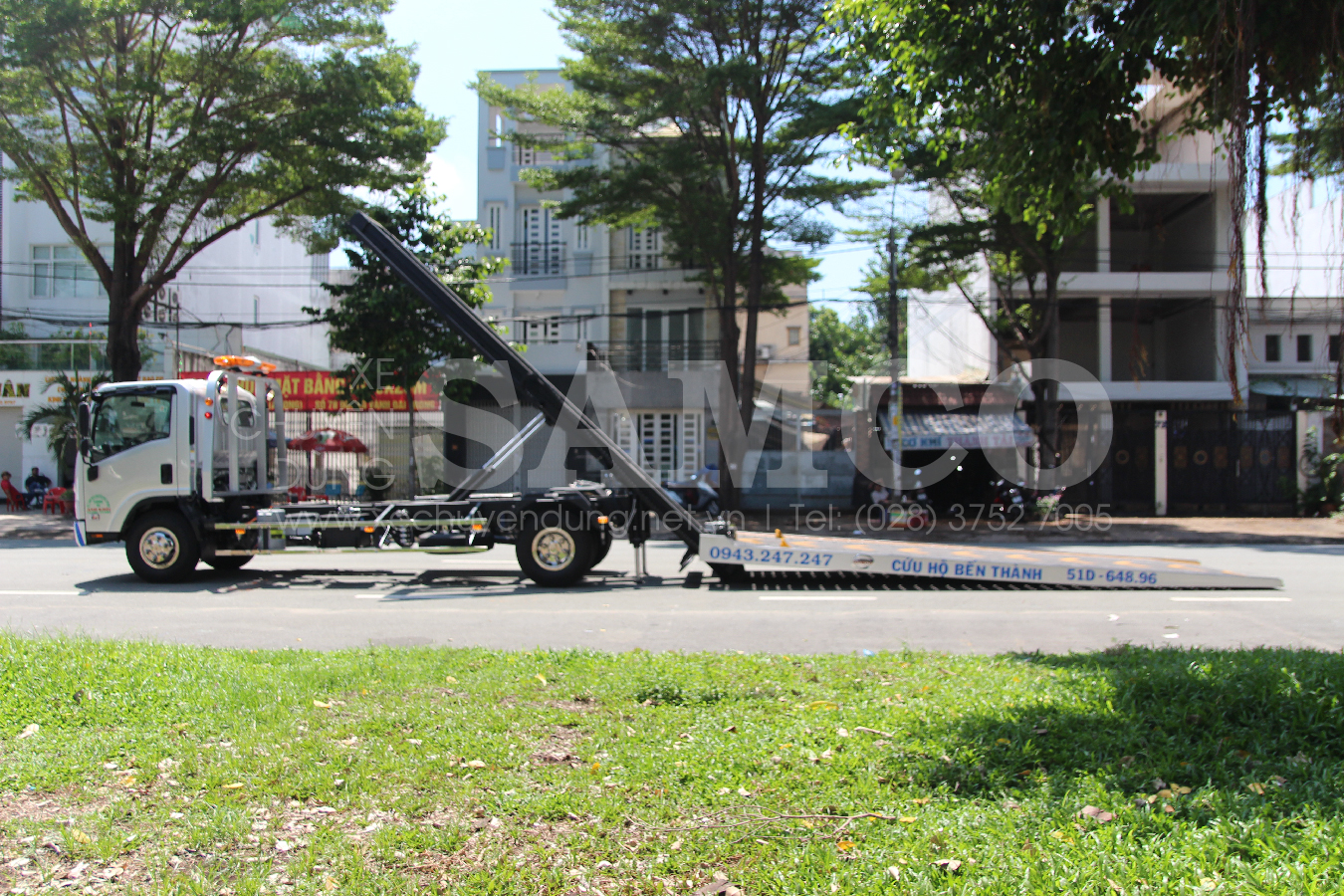

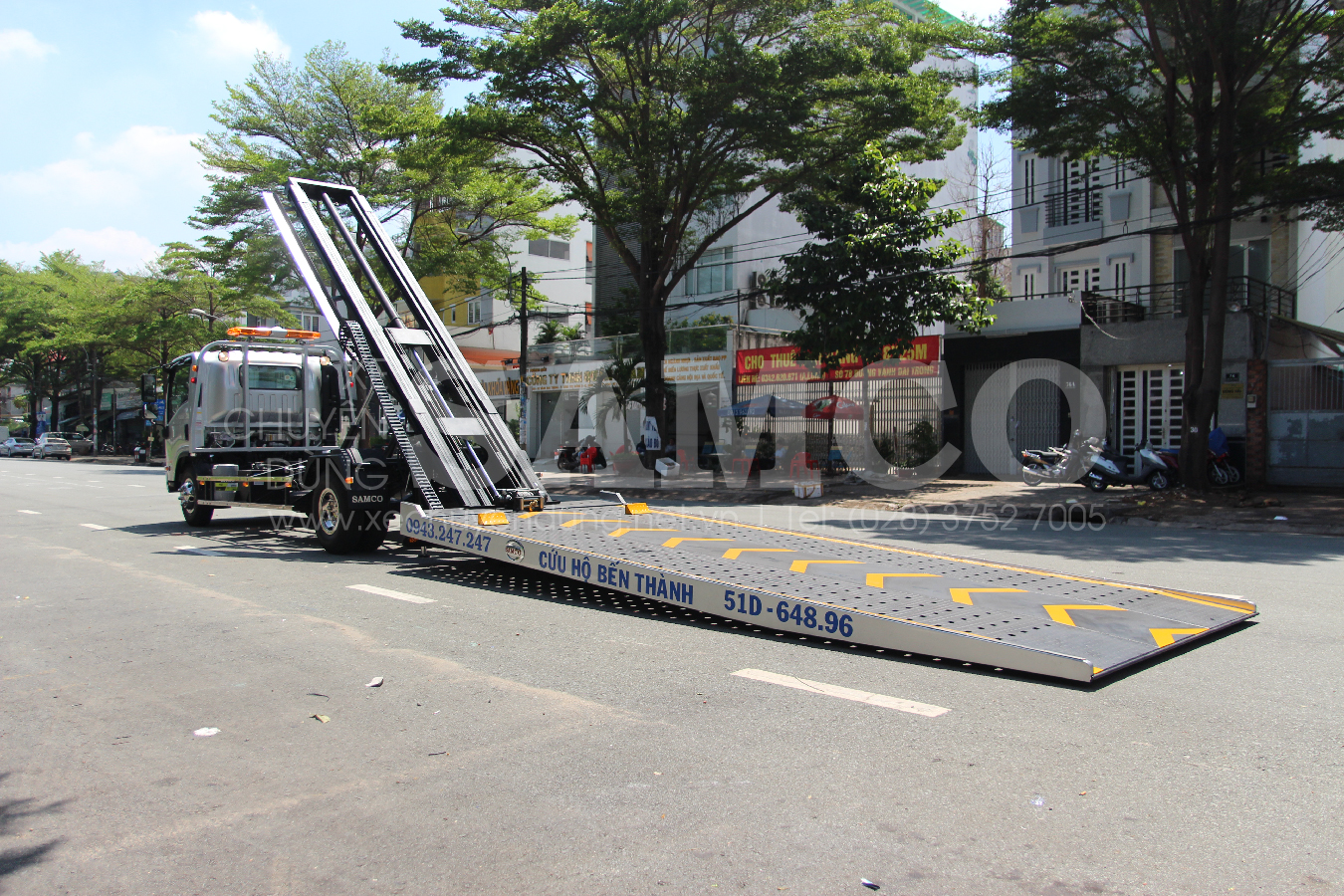

Sàn xe sát mặt đất Sàn xe sát mặt đất
