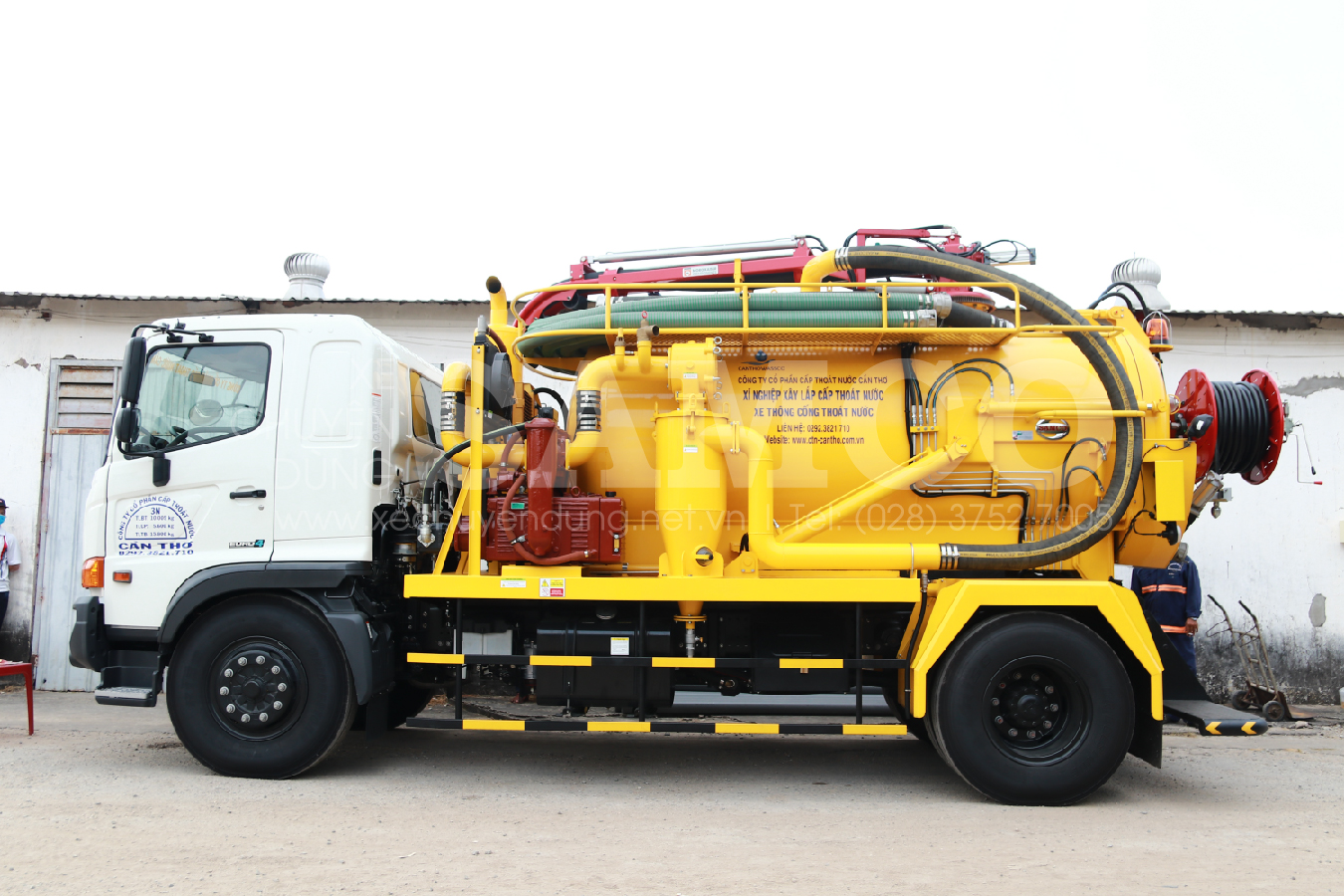

Sewage Jetting & Suction Truck - XHTIS 056

Overview

Combined jetting and suction function in one vehicle, SAMCO Sewage Cleaner Truch is the best choice for cleaning sewer pipe

  • Chassis: HINO FG8JJ7A
  • Vehicle mass: 10,005 kg
  • Payload: 5,600 kg
  • Gross vehicle mass: 15,800 kg
  • Sludge tank volume: 4.0 m³
  • Water tank volume: 1.5 m³
Brochure download
sewage cleaner truck, Isuzu, sludge tank, water tank

Technical Specifications

Cab chassis HINO FG8JJ7A
Engine 6HK1-E2N
Max, output 191/2,500 kW/rpm
Displacement 7,684cc
Overall Dimensions (L x W x H) 7,580 x 2,500 x 3,600 mm
Wheelbase 4,330 mm
G,V,W 15,800 kg
Payload 5,600 kg

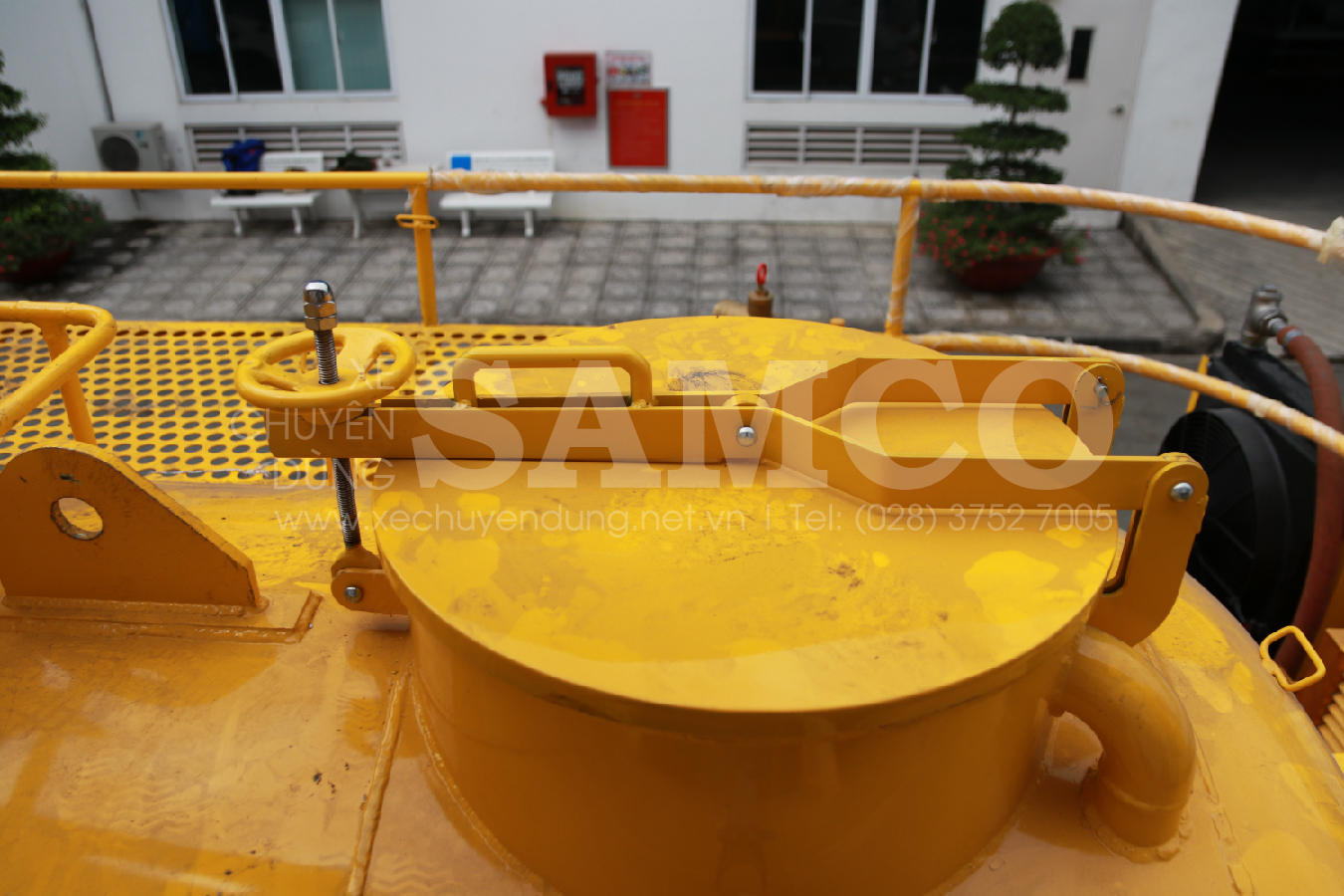

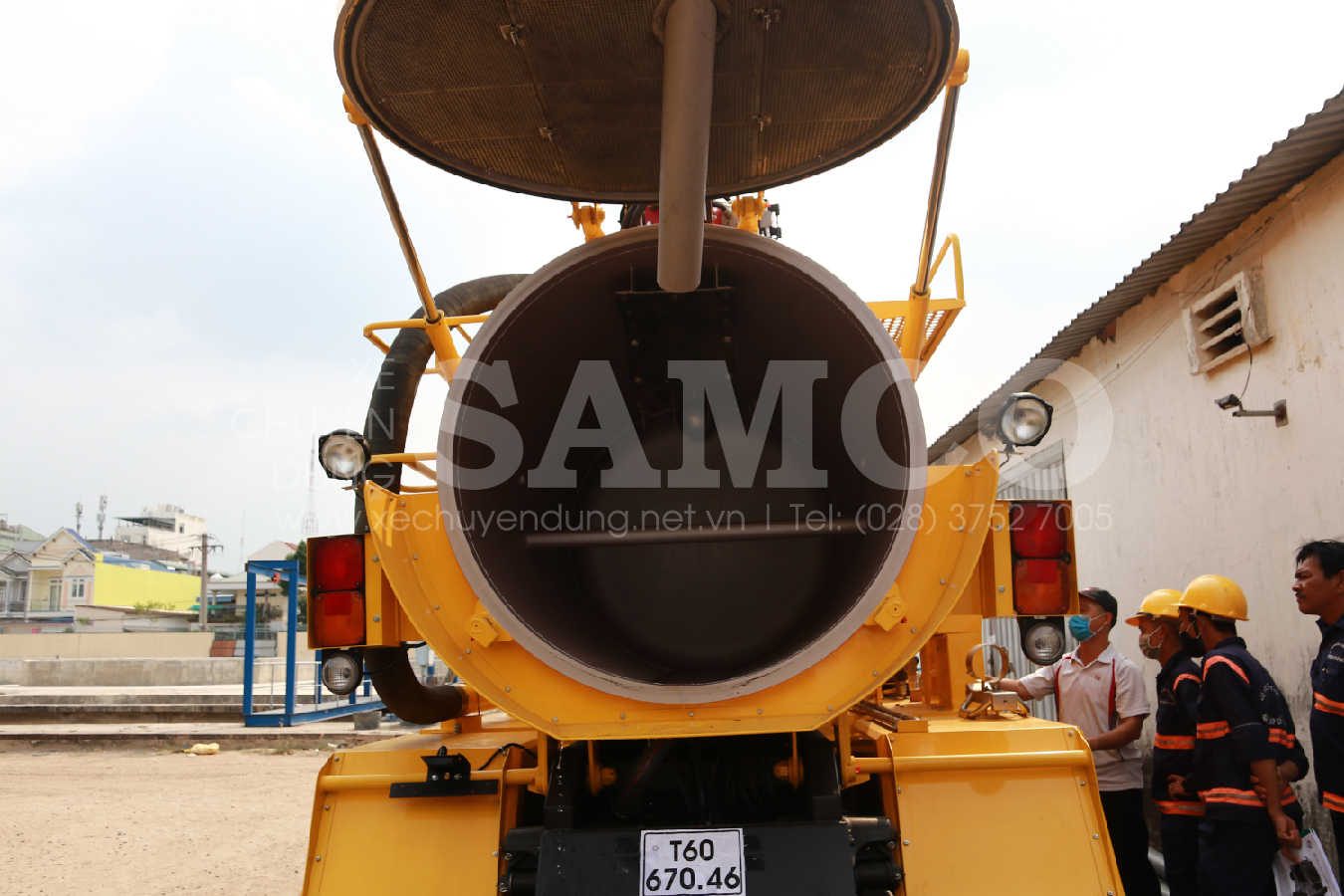

Sludge tank - Volume: 4.0 m³
  - Tank body profile : Circular cylinder

- Material : SPA-H steel, (Japan)
Water tank - Volume: 1.5 m³
  - Tank body profile : Circular cylinder
  - Material : SPA-H steel, (Japan)

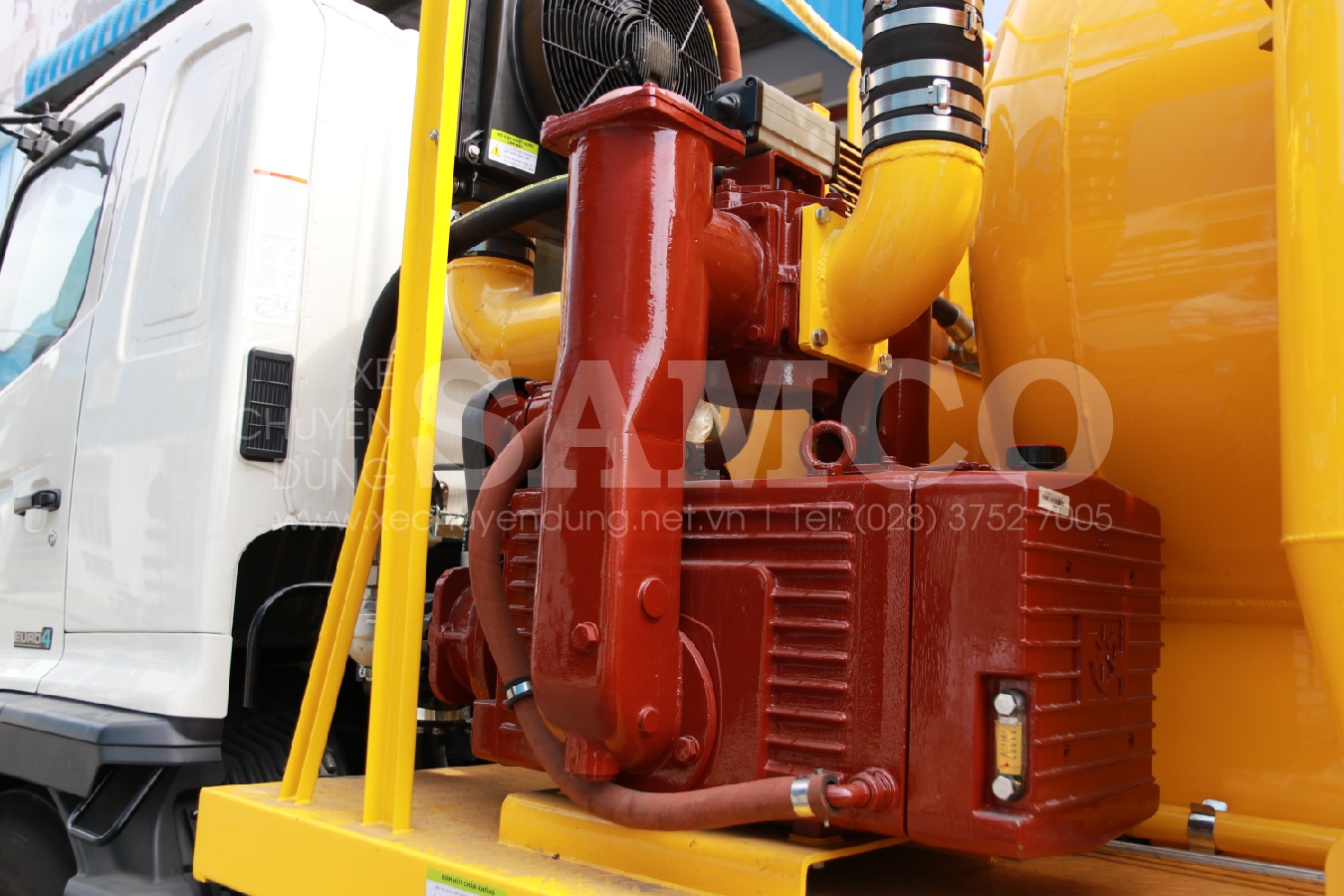

Vacuum pump - Max Intermittent Vacuum : - 0.95 bar
  - Max flow rate : 21,500 l/pm

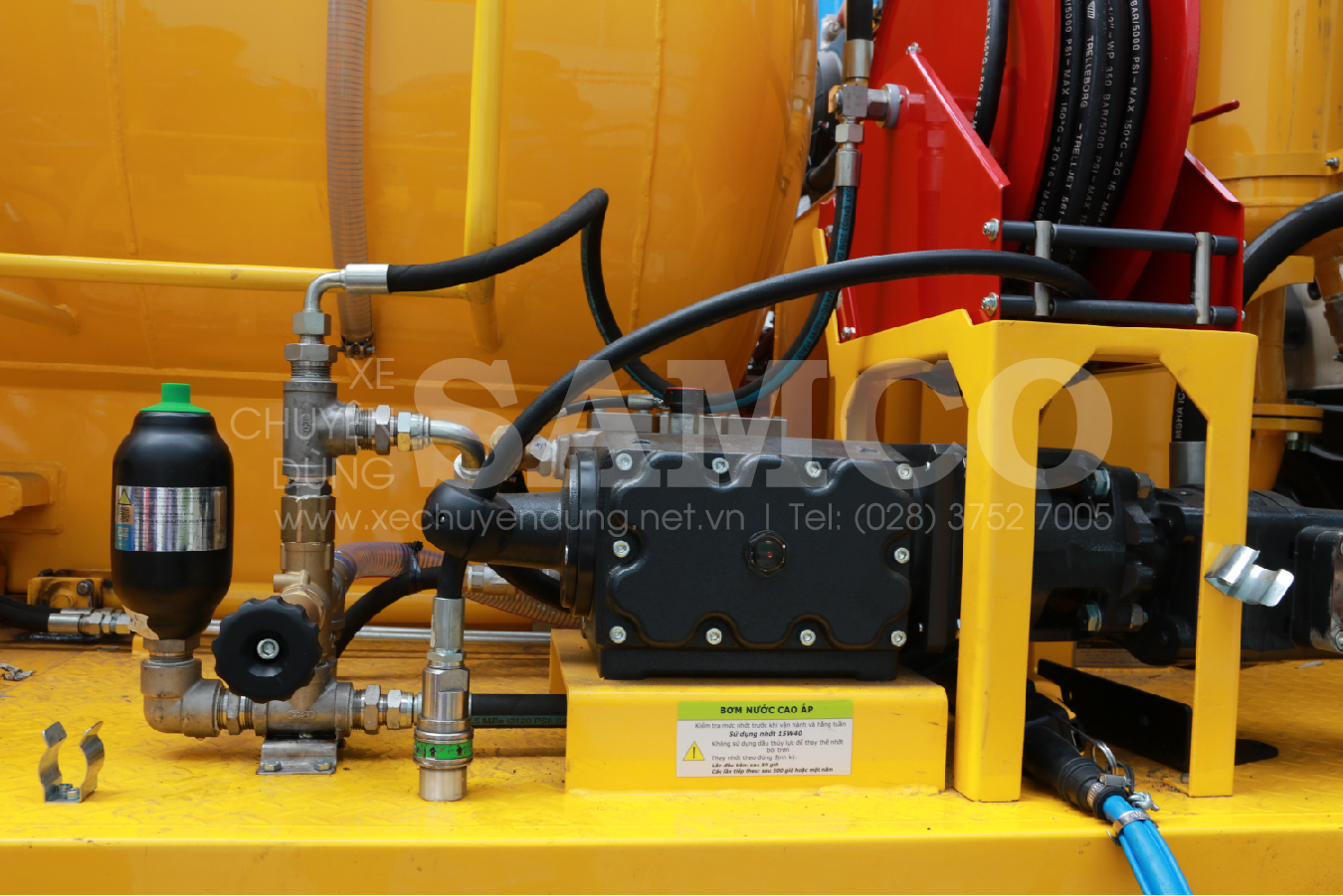

 High pressure pump - Pressure: 130 bar
  - Max flow rate : 122 l/pm
Special systems imported synchronously from Italy - Primary shut-off valve
  - Secondary shut-off valve
  - Silencer
  - Air suction filter
  - Vacuum pressure selector

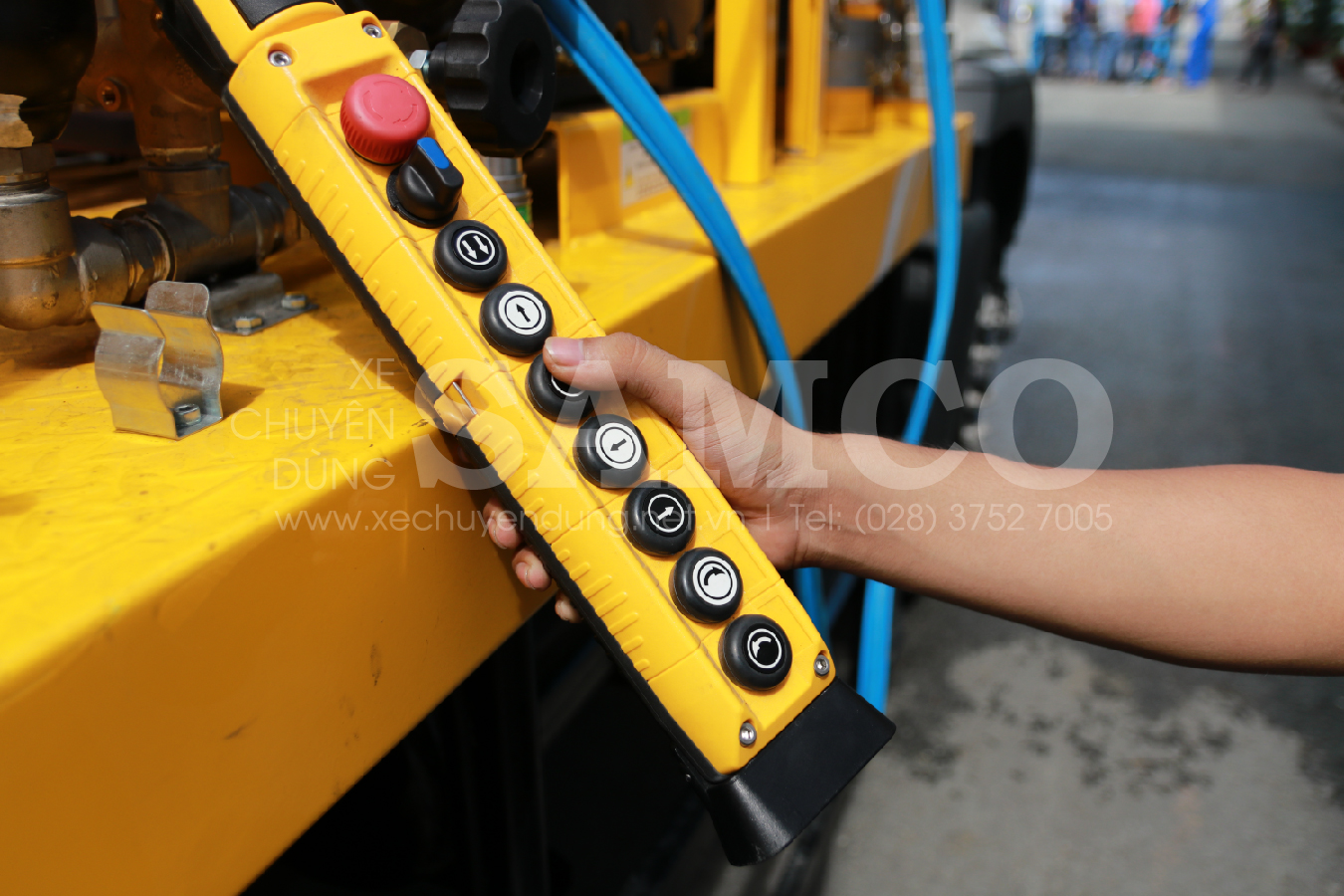

Manual operating acclerator :  Placed at pump position
Cabin As truck or customers demand
Cargo body Orange, Blue, customers demand
Product policy  In accordance with our policy of constant product improvement, all specifications are subject to change without notice or obligation.
Trucks

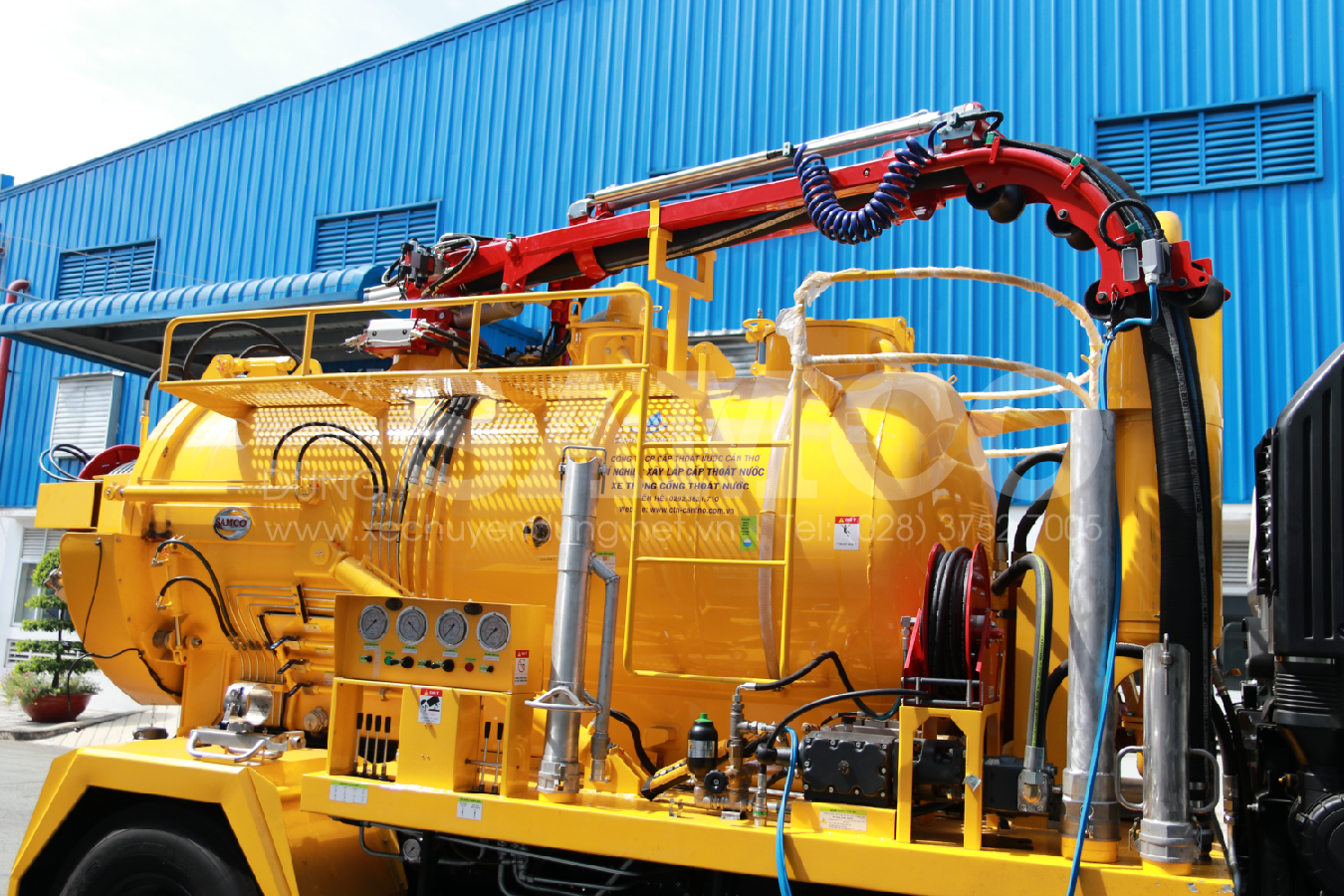

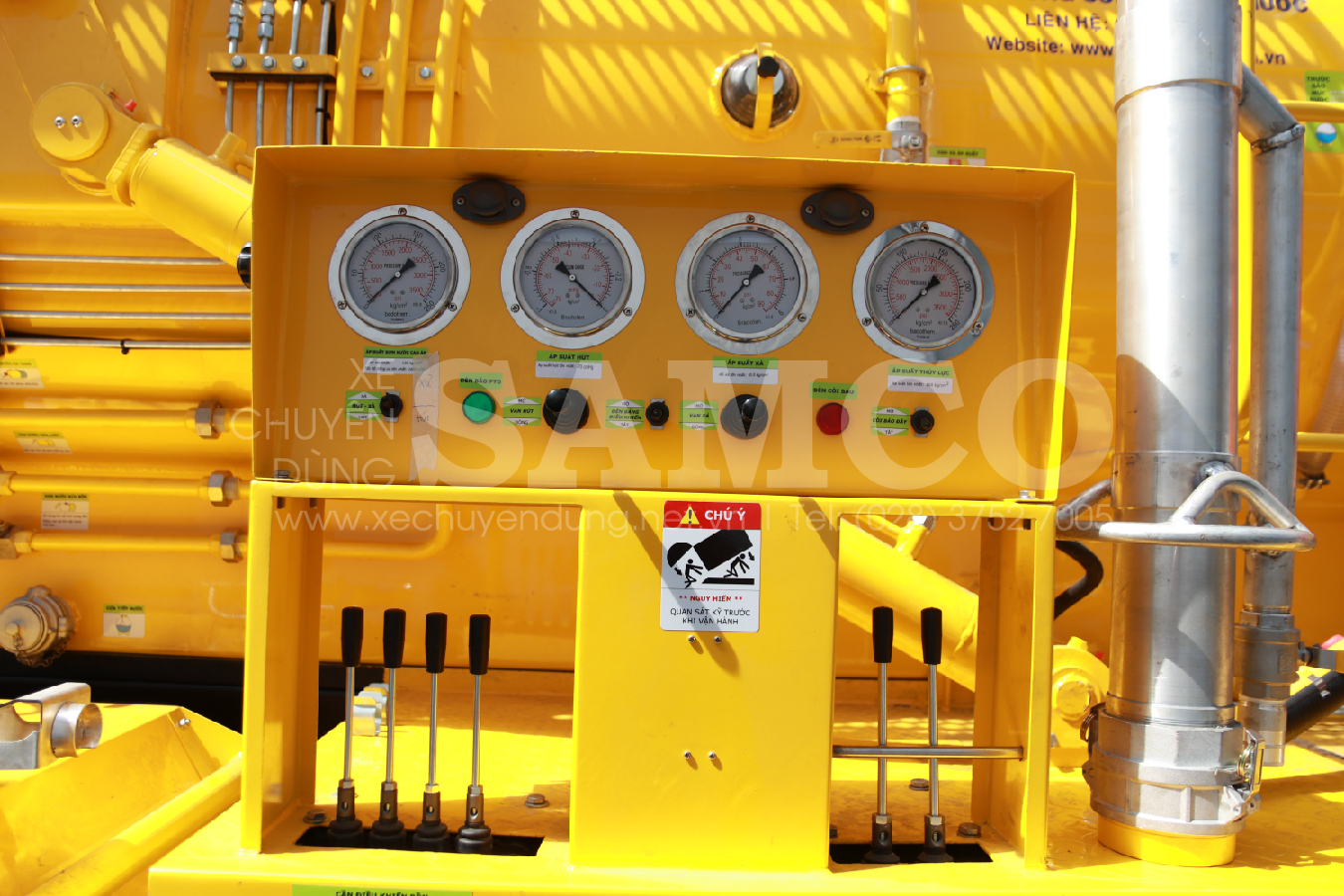

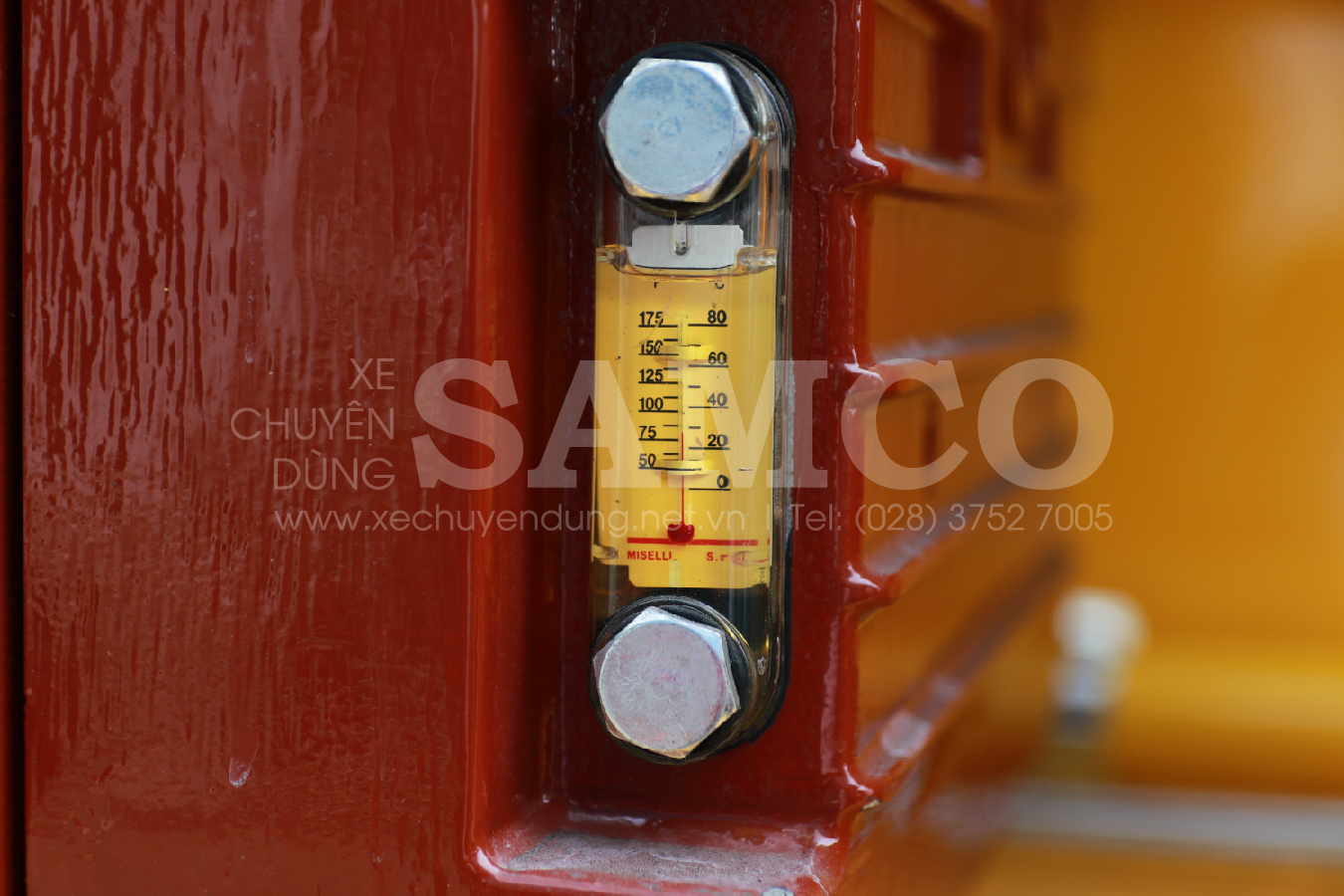

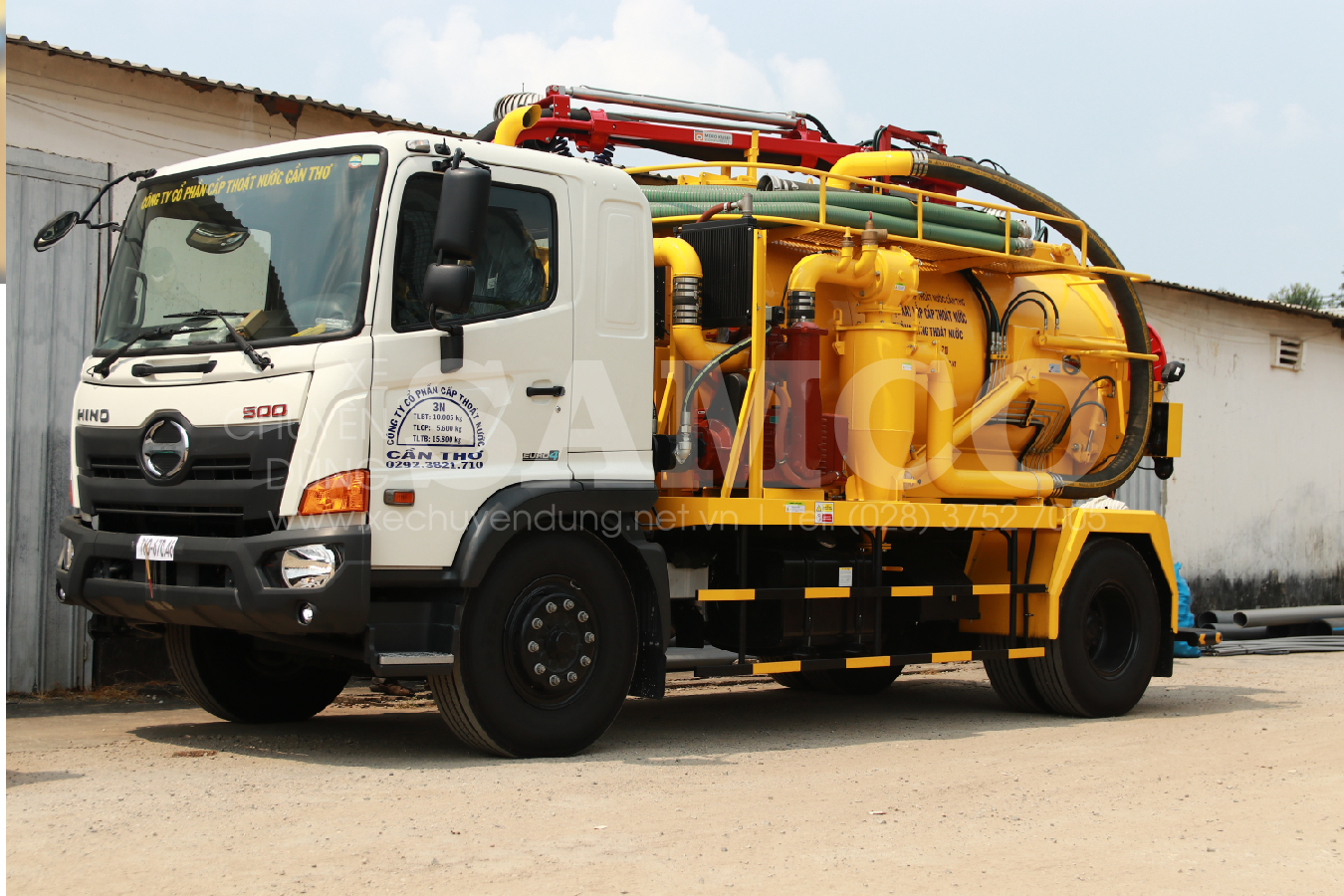

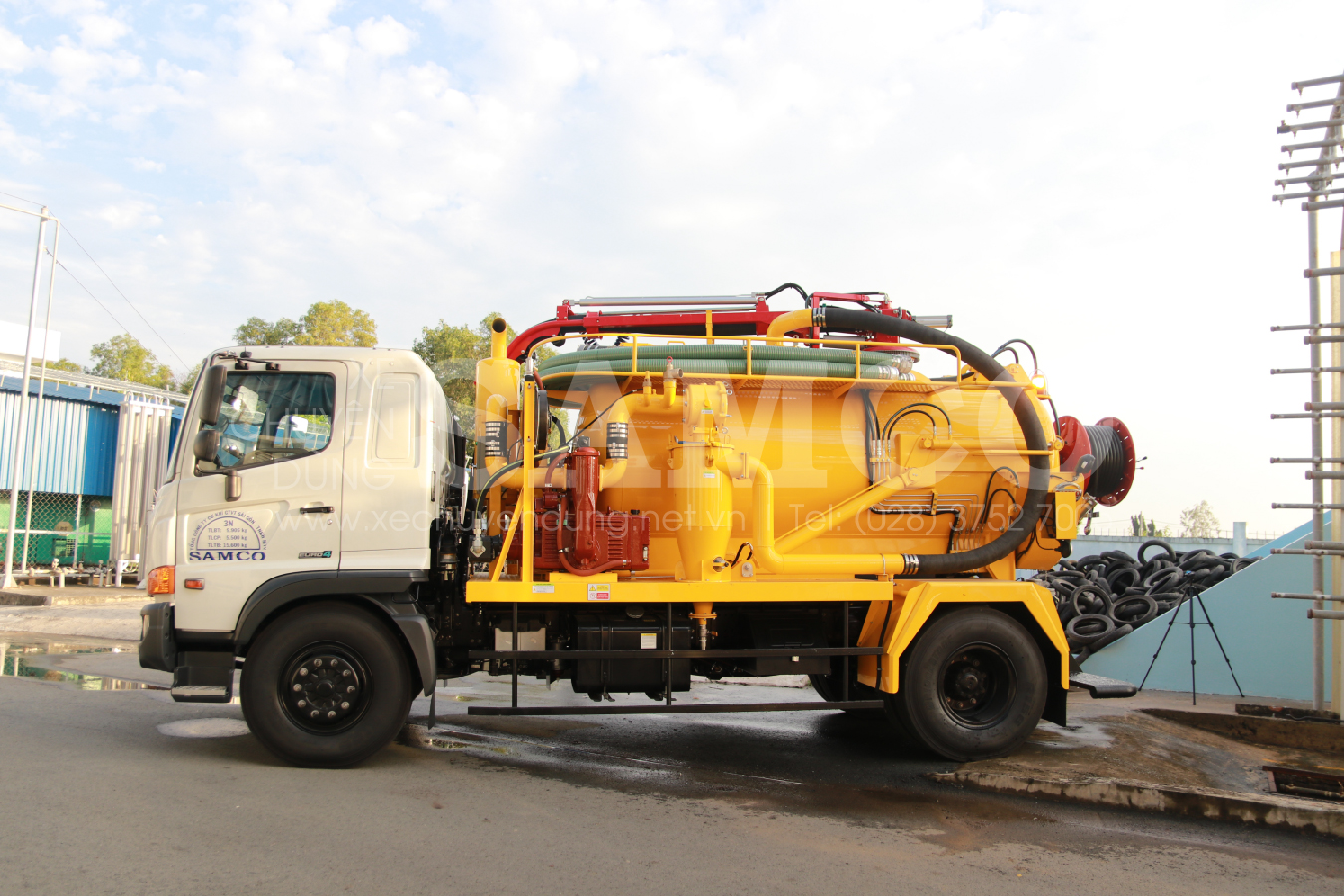

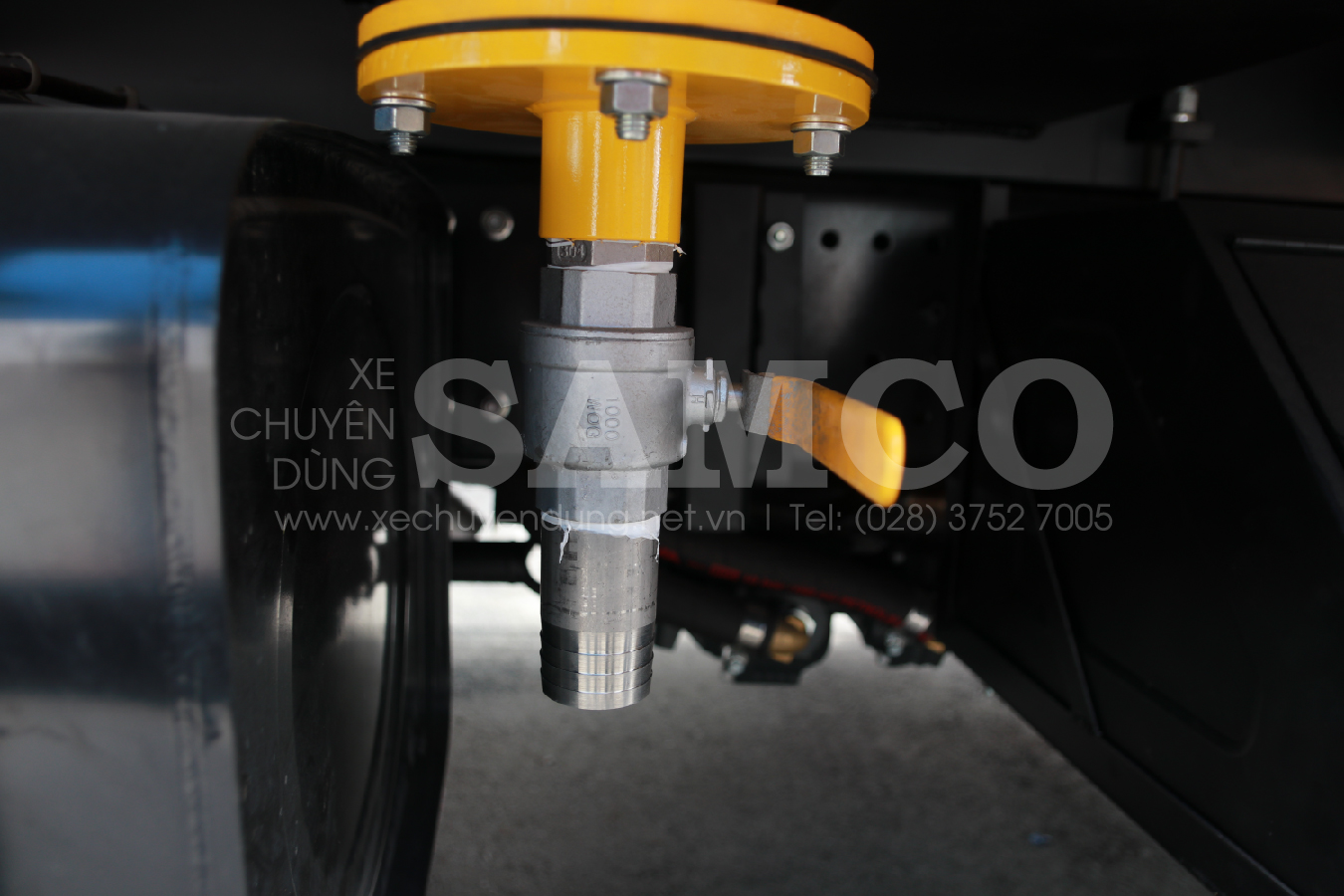

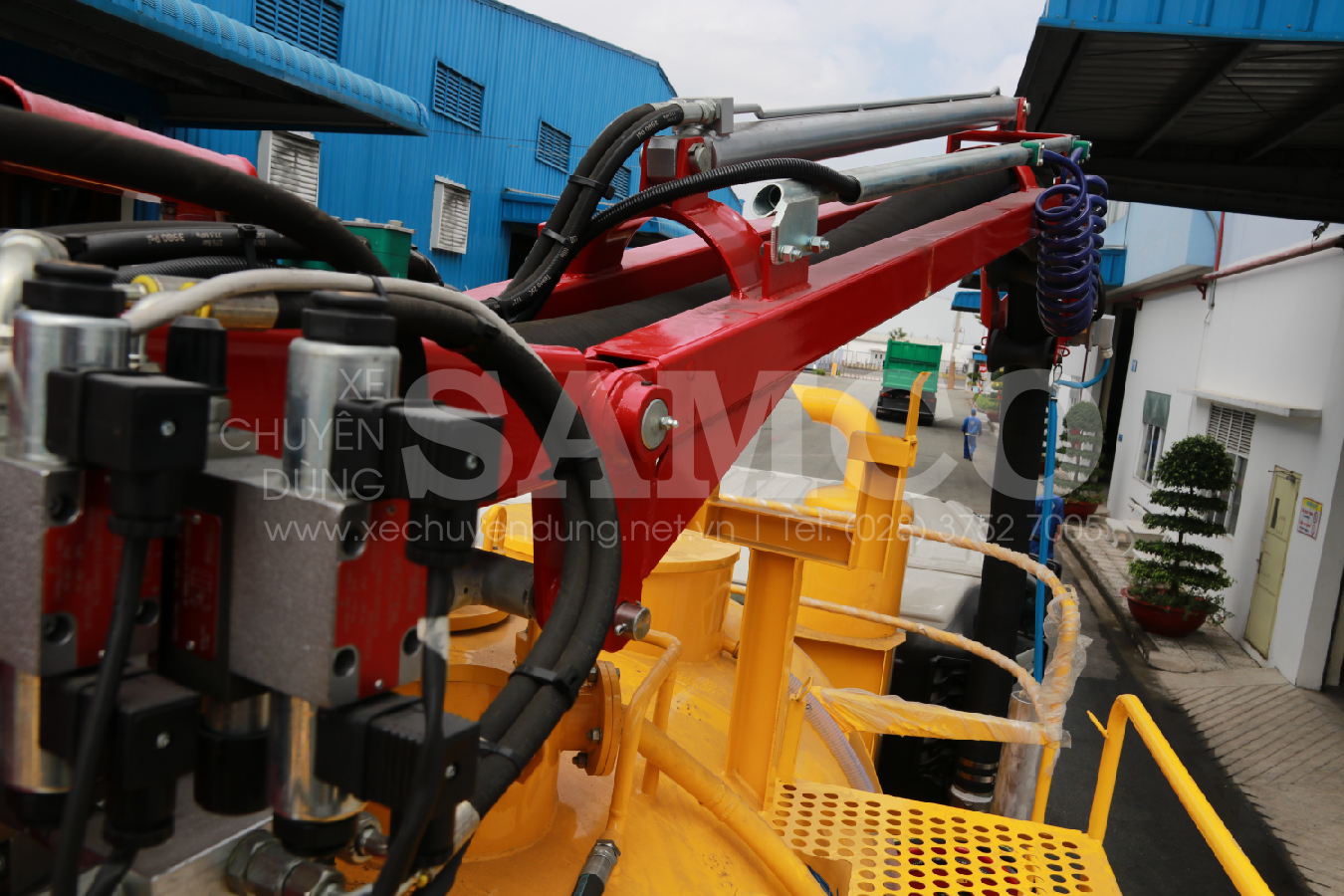

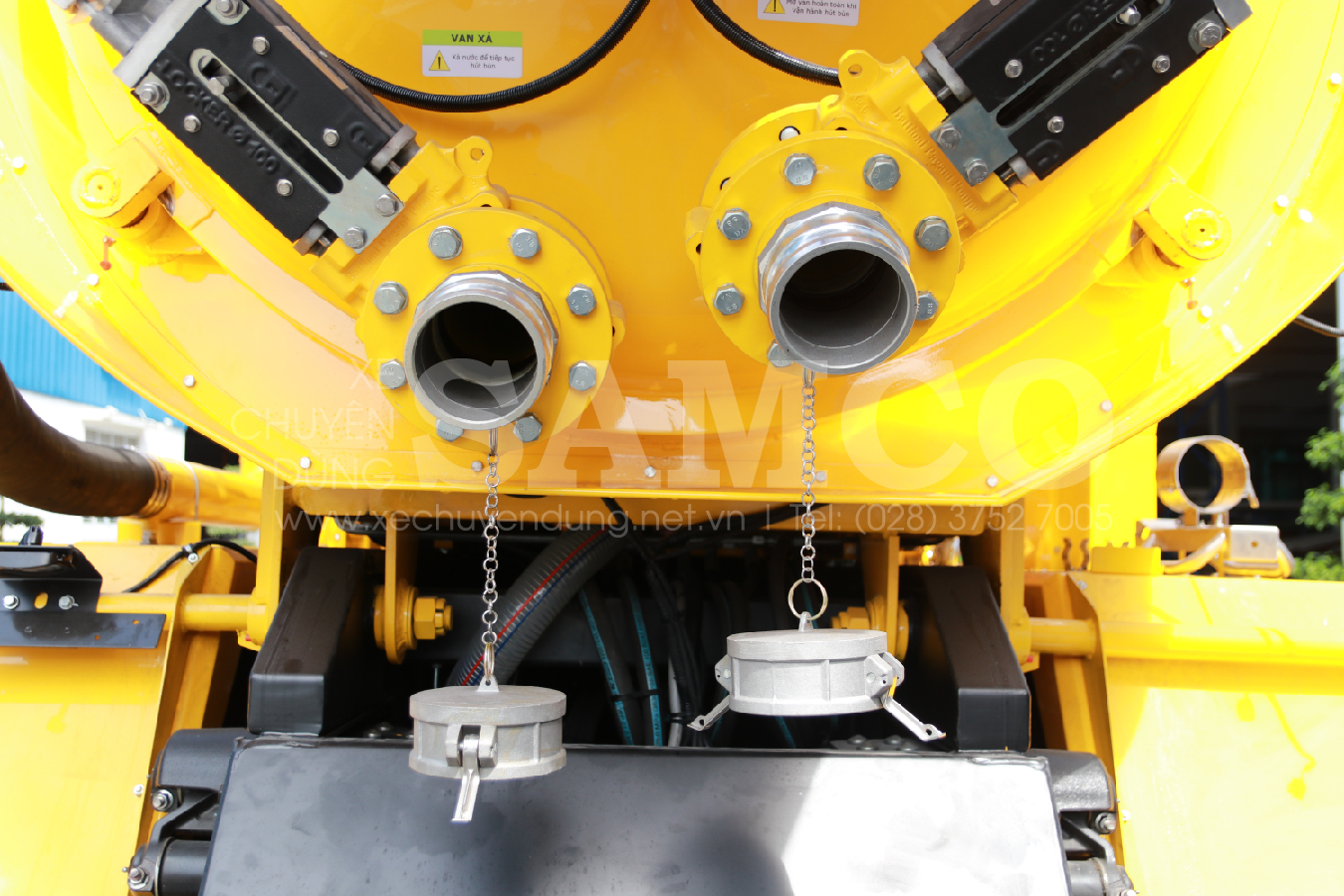

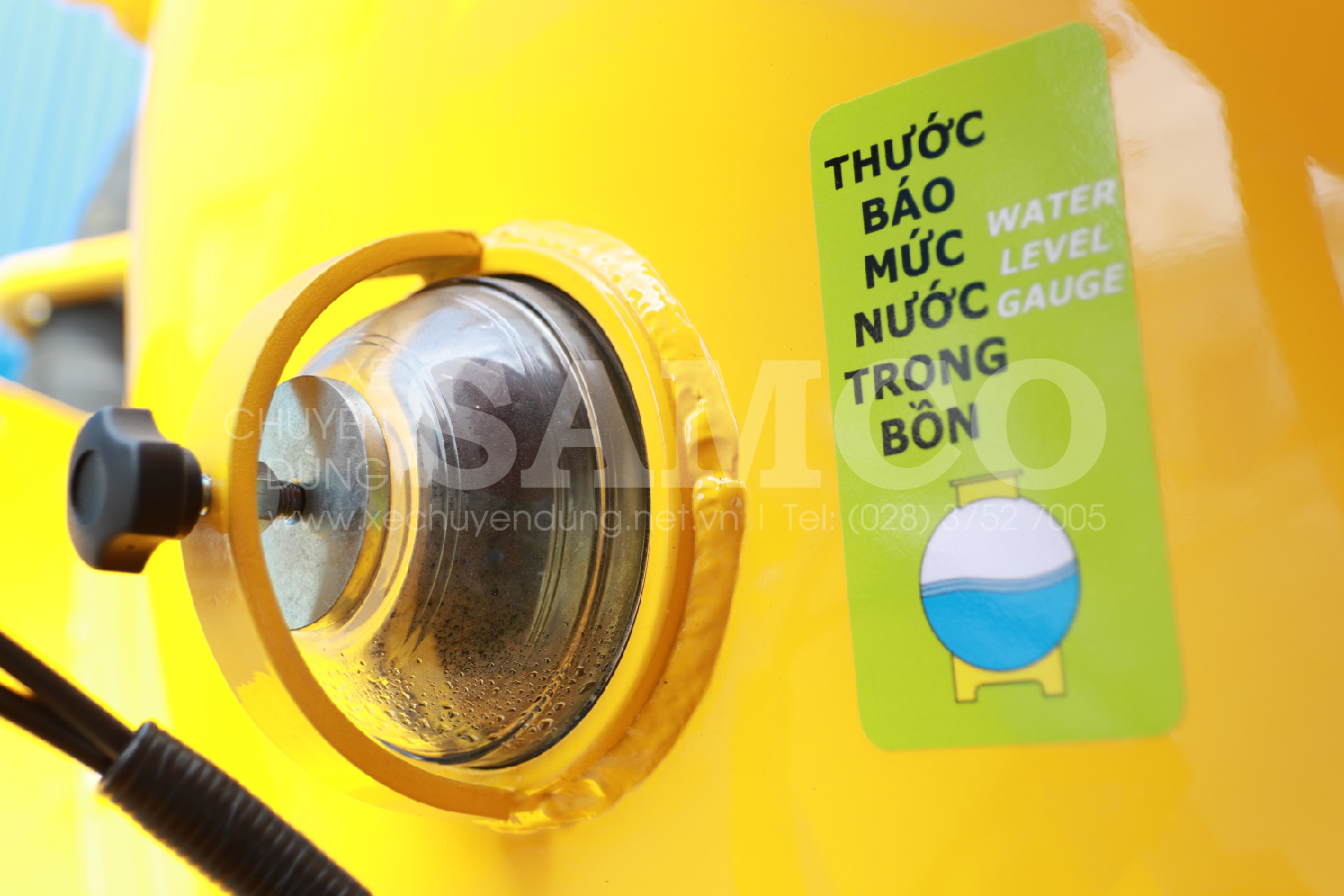

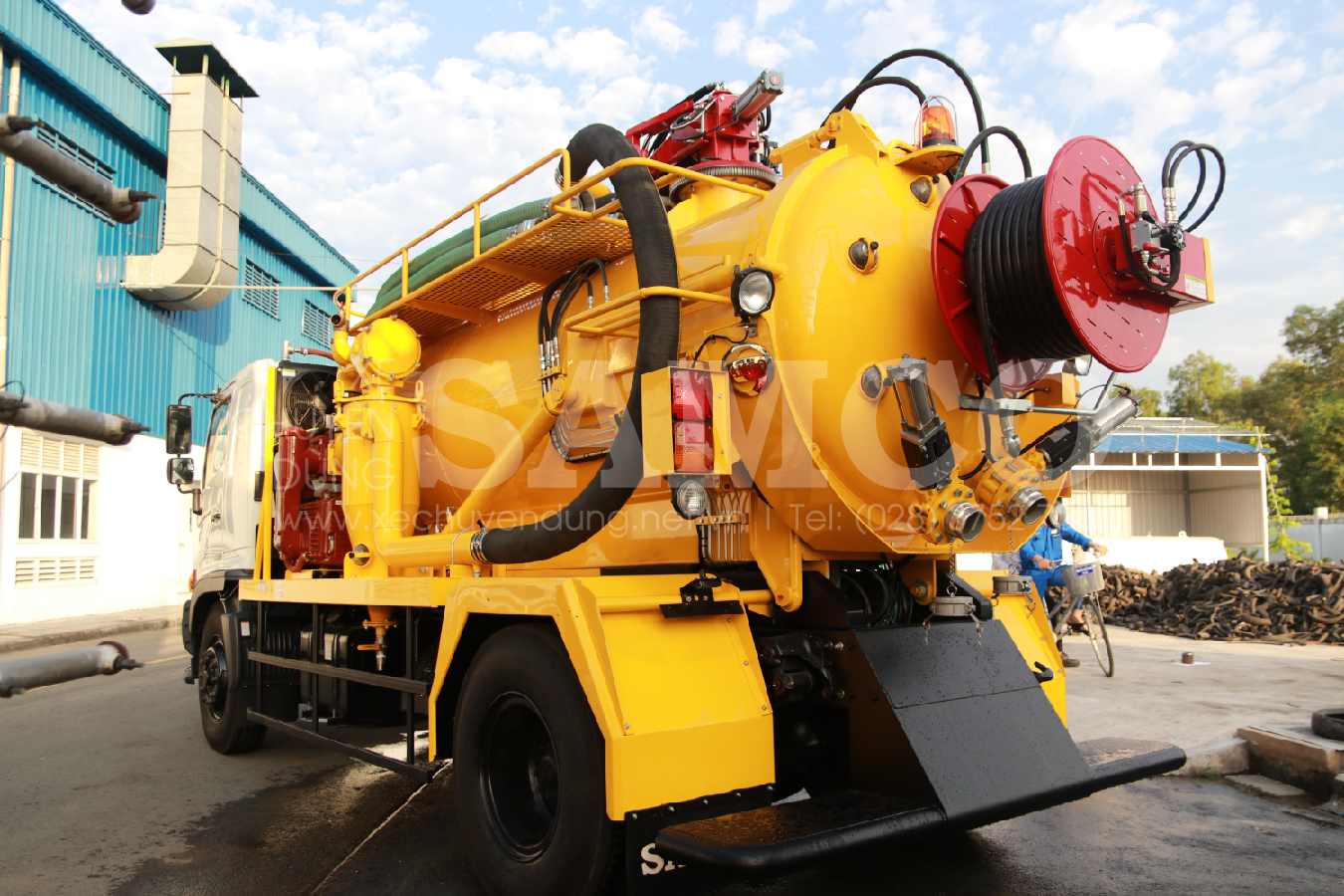

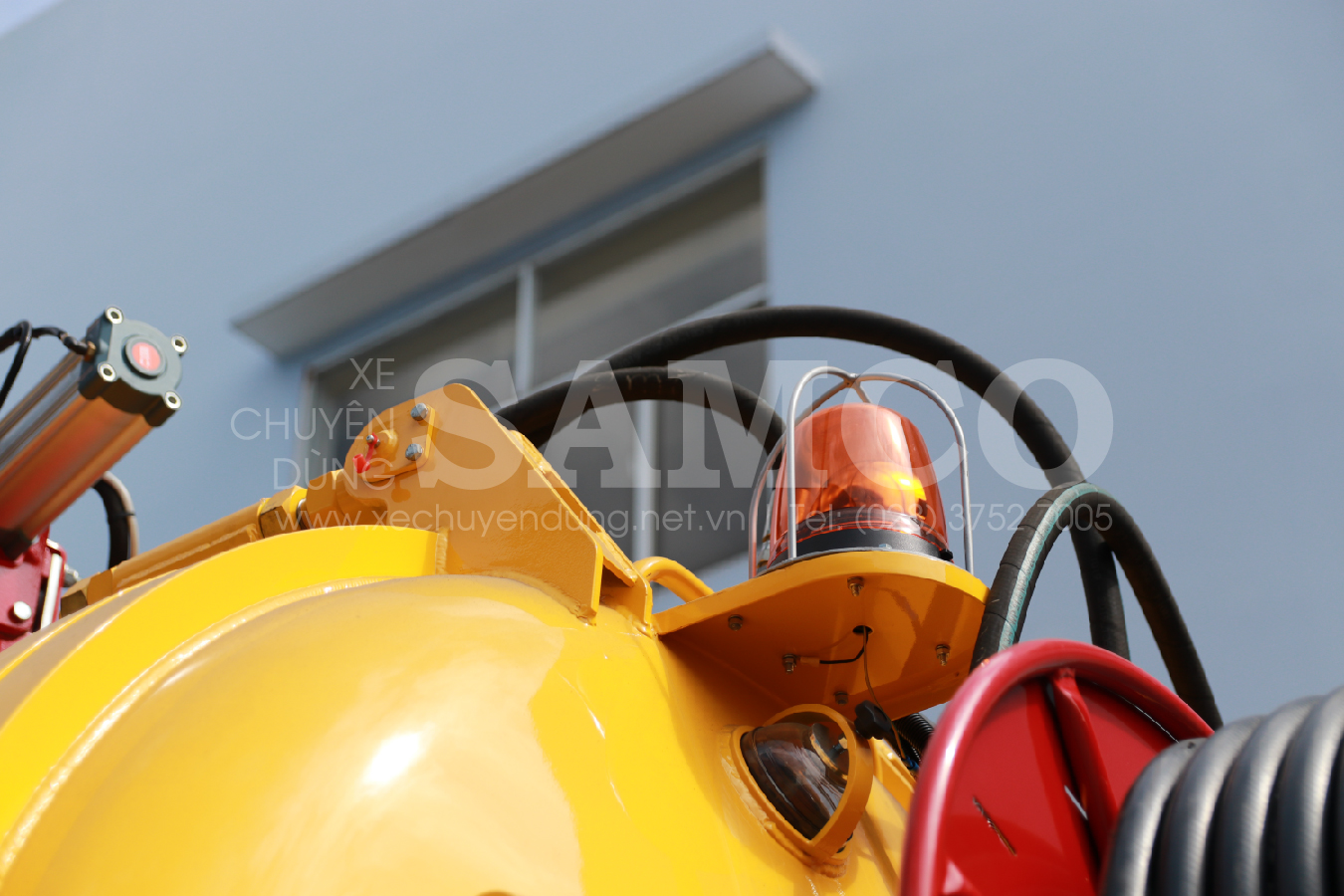

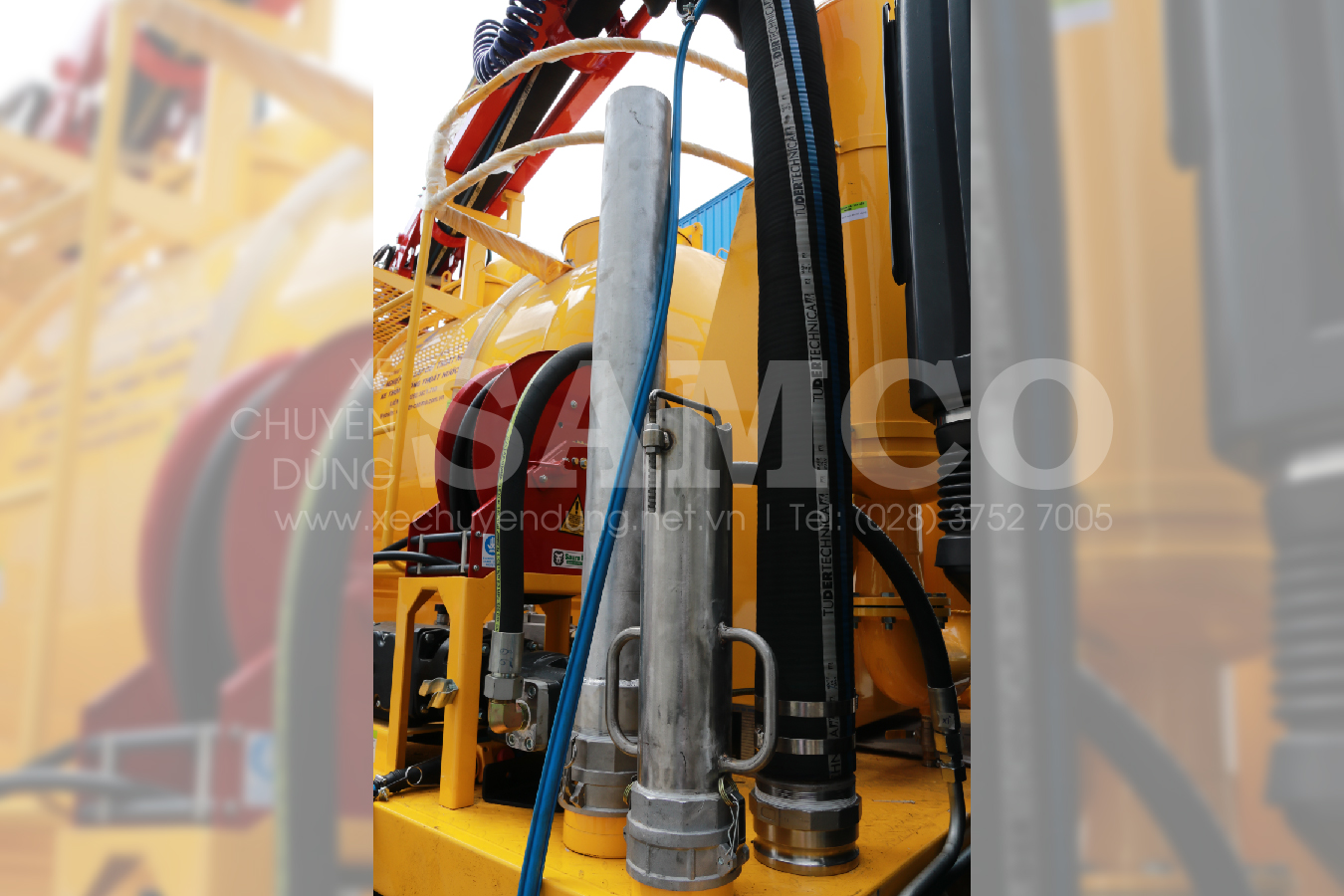

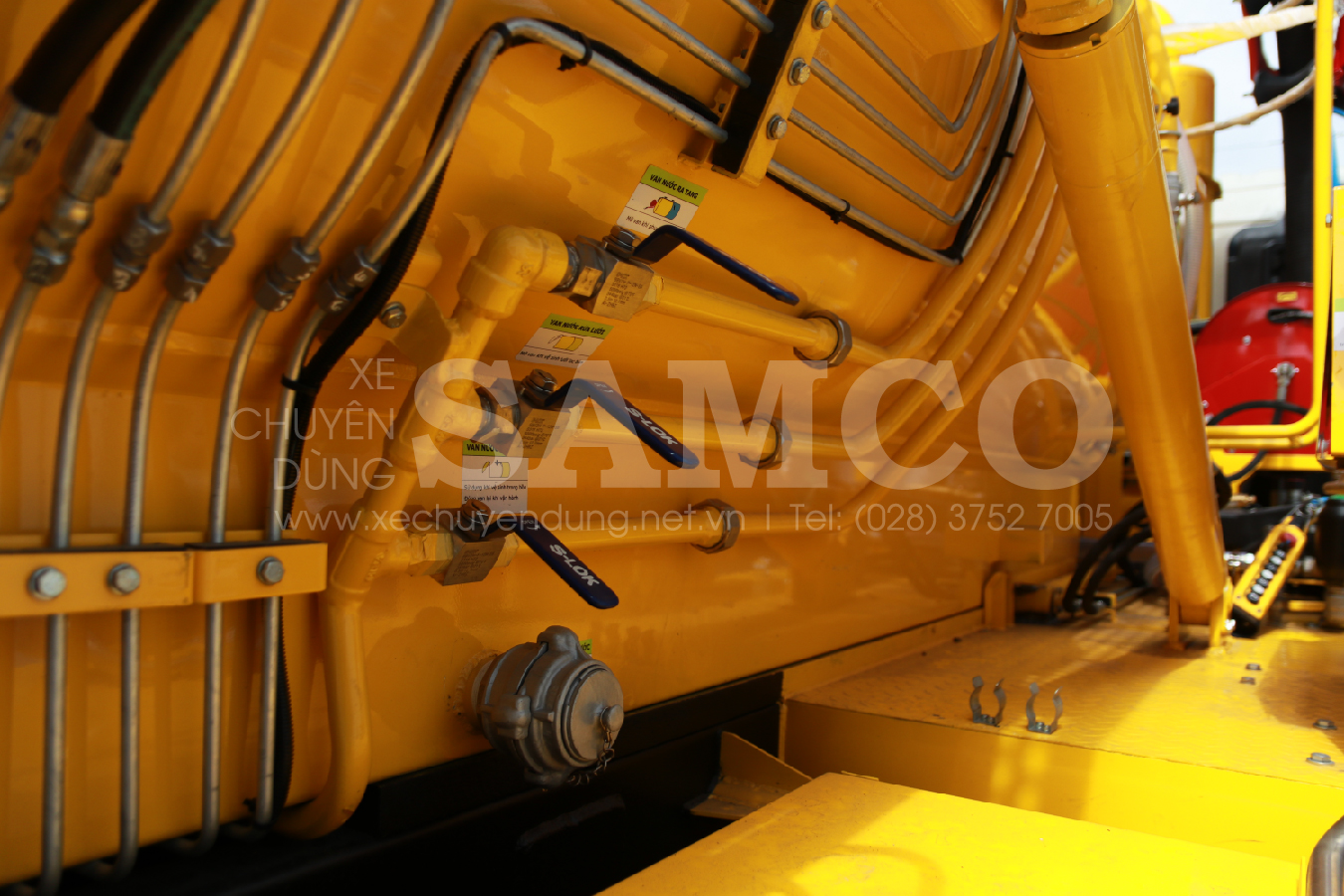

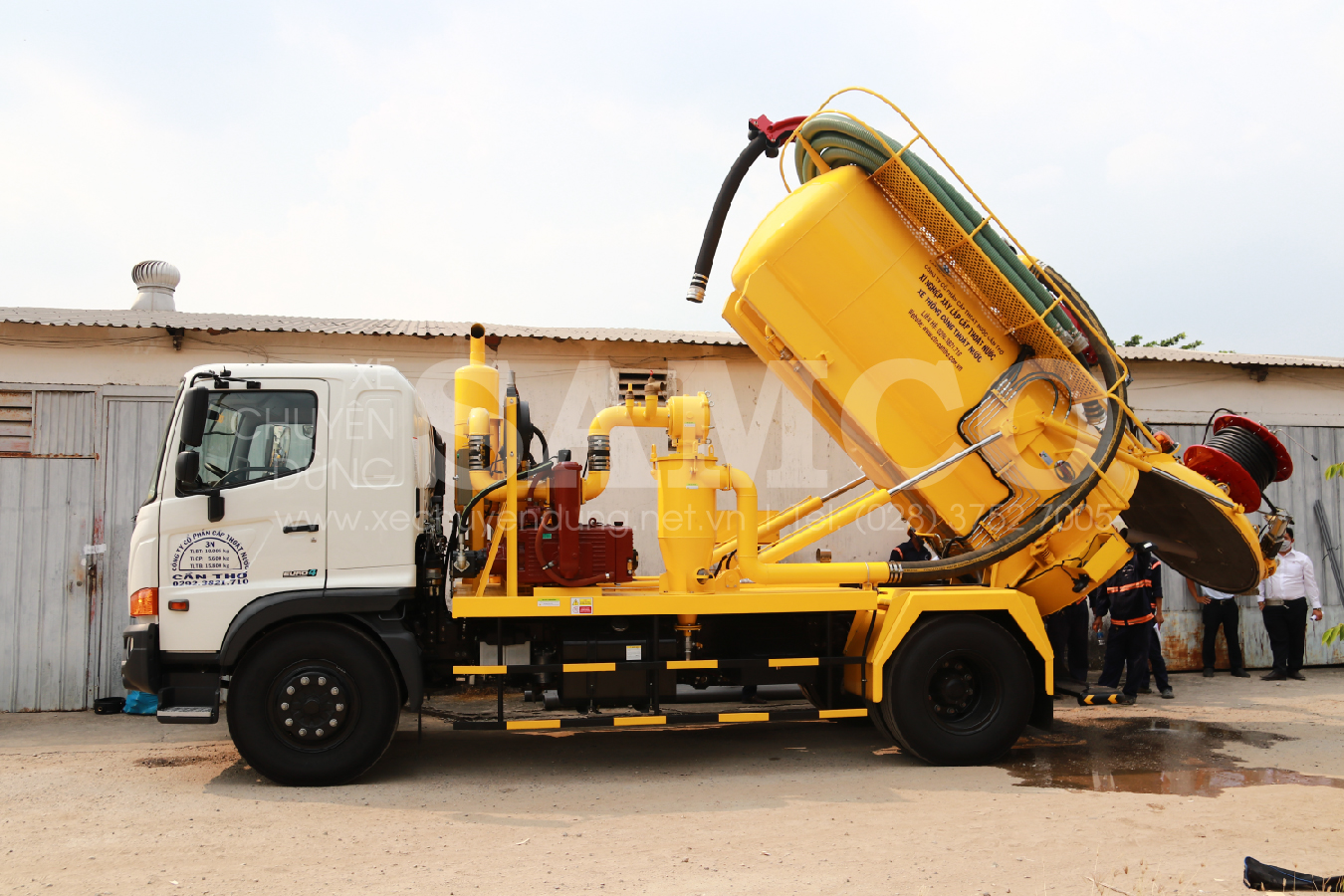

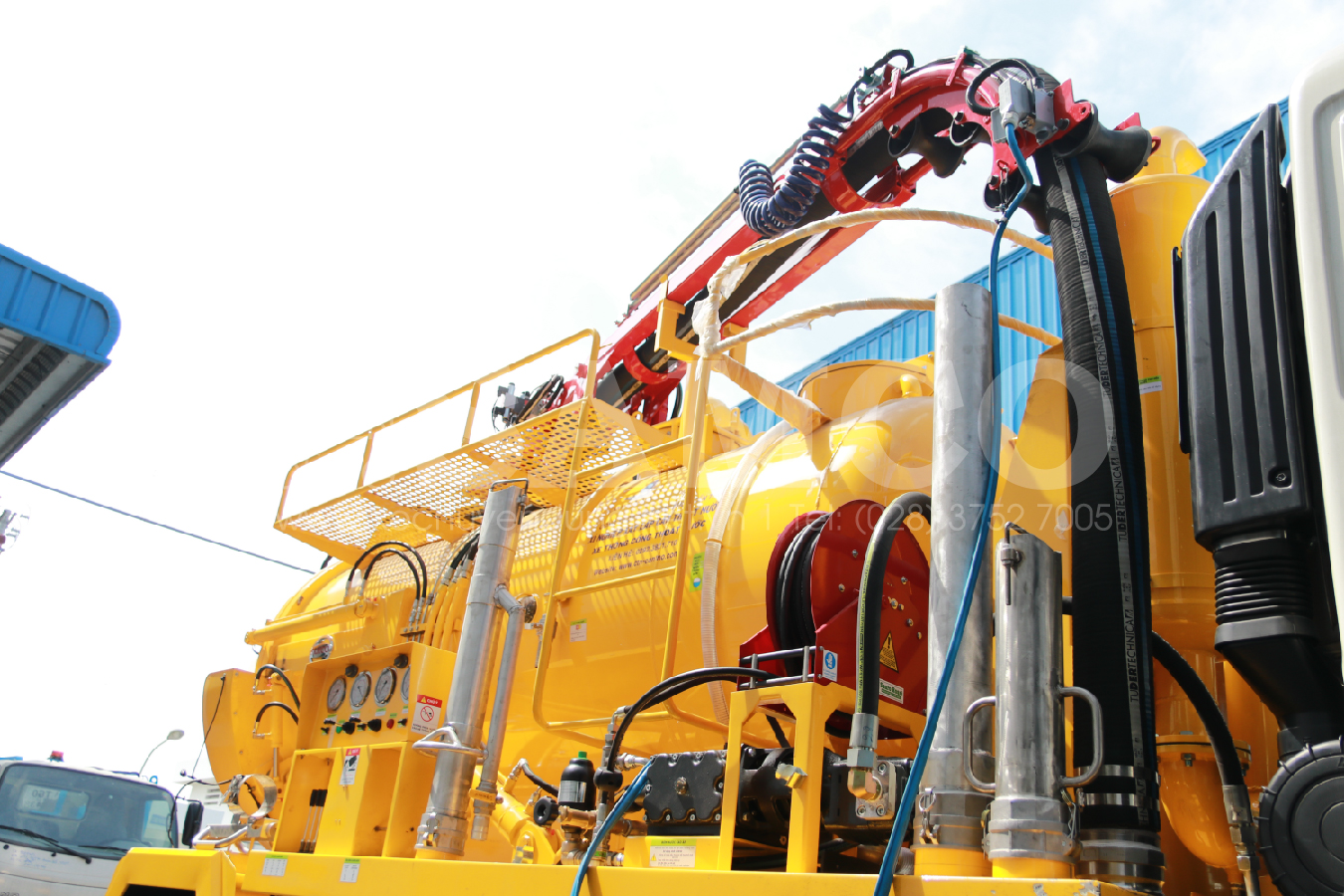

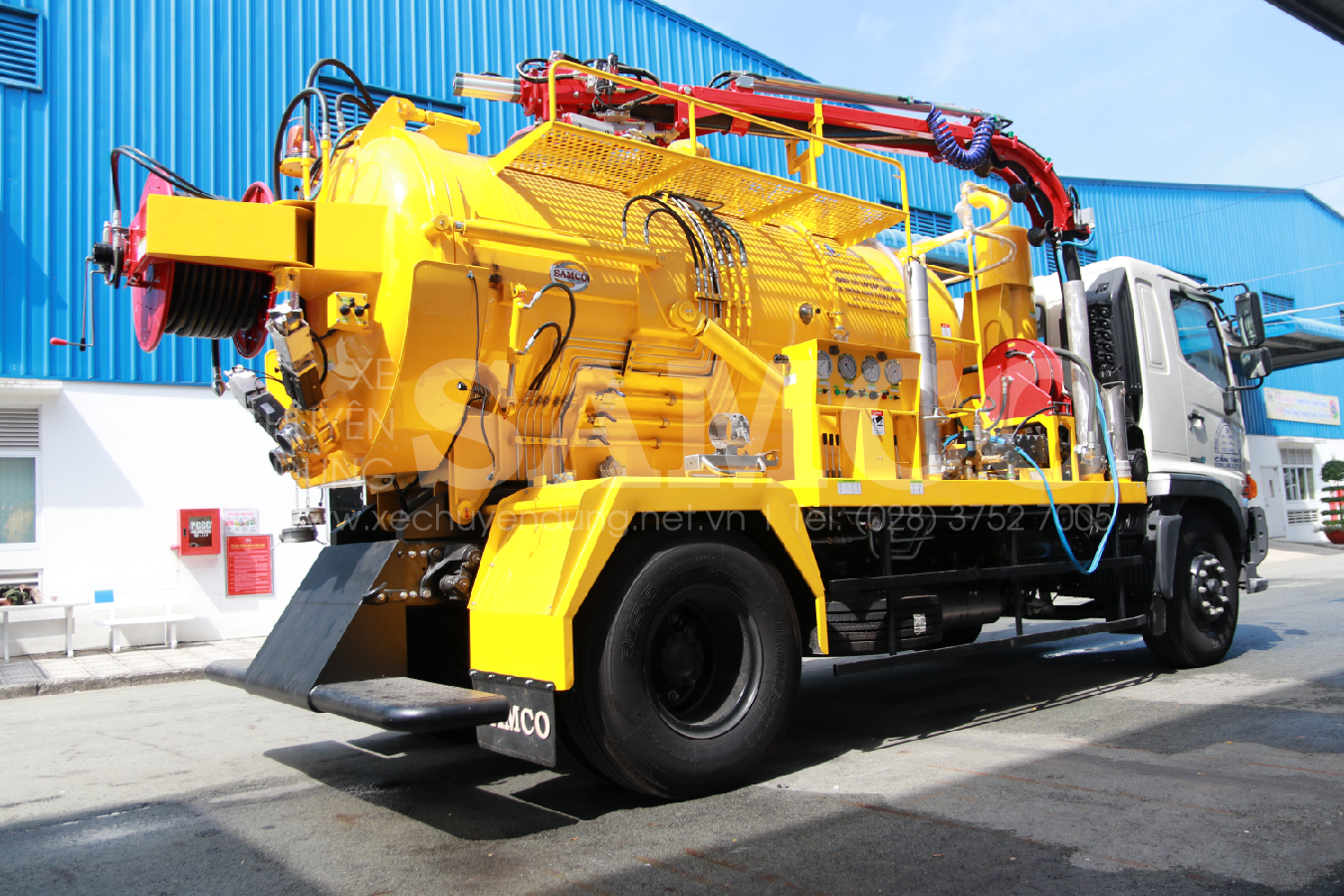

Detail images
